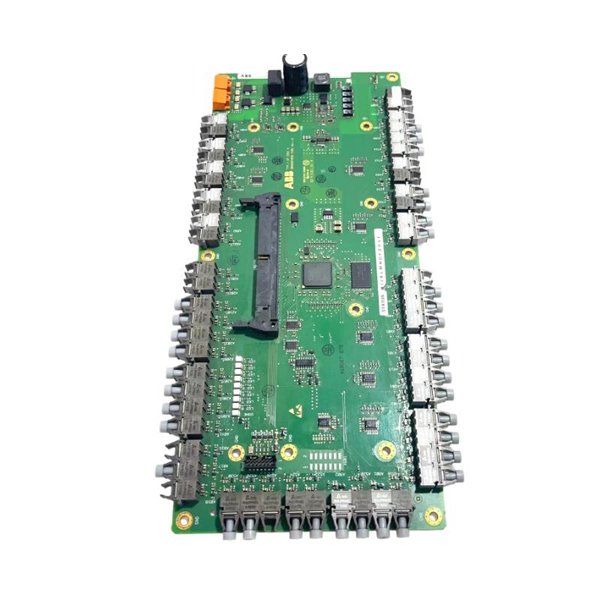

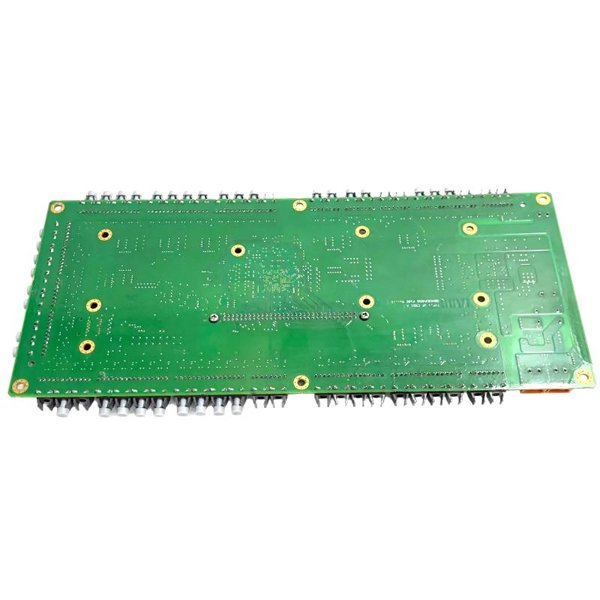

ABB UF C921 A101 3BHE024855R0101 Control Motherboard

The ABB UF C921 A101 3BHE024855R0101 is a sophisticated industrial control motherboard engineered for high-performance automation and drive systems. As part of ABB’s acclaimed Drive Control and Automation series, this board functions as a core control unit in industrial inverter drives and converter systems, offering precision logic control, signal processing, and seamless integration with ABB’s digital automation infrastructure.

Manufactured to uphold ABB’s standards of reliability and durability, the UF C921 A101 is built using high-grade industrial components and designed to operate under harsh industrial environments. This control motherboard ensures synchronized drive performance, real-time processing of commands, and dependable communication between various system modules.

It is commonly found in applications where robust process control and precise motor management are vital, such as steel manufacturing, petrochemical plants, energy systems, paper production lines, and other complex industrial automation setups.

Product Specifications

Product Applications

The ABB UF C921 A101 is utilized in a variety of high-reliability industrial environments that demand intelligent automation and precise motor or process control. Some of the most common application areas include:

• Variable Speed Drive Systems for motors

• Converter control modules in high-power electrical systems

• Steel and aluminum processing plants

• Pulp and paper manufacturing lines

• Petrochemical automation systems

• Energy generation and distribution setups

• Turbine and compressor control systems

• Industrial robotics and precision handling systems

Product Advantages

• Highly Reliable Performance

  Built for demanding industrial use, ensuring minimal failures even under harsh conditions.

• Advanced Signal Processing

  Embedded with a powerful DSP for real-time logic and feedback control.

• Seamless Integration

  Easily integrates with ABB drive systems and industrial controllers using standard communication protocols.

• Industrial-Grade Durability

  Designed to withstand high temperatures, vibration, dust, and humidity without degrading performance.

• Flexible Communication Interfaces

  Supports various communication ports including fiber optics and serial for quick data transmission.

• Long-Term Availability & Support

  As part of ABB’s core product portfolio, the motherboard benefits from long lifecycle support and availability of spares.

• Conformal Coating Protection

  Enhances resistance to moisture, dust, chemicals, and corrosion.

• Easy Maintenance and Replacement

  Modular design allows for rapid diagnosis and replacement, reducing MTTR (Mean Time to Repair).

FAQ

1. What type of communication protocols does the UF C921 A101 support?

   It supports CAN, RS-232/RS-485 serial communication, and fiber optic links, depending on the system it is integrated into.

2. Is the board compatible with ABB ACS6000 drive systems?

   Yes, it is fully compatible with ACS6000 series as well as other industrial drives in the ABB product line.

3. Does the motherboard support redundant control configurations?

   Yes, it can be configured for redundant control in critical applications requiring failover capability.

4. What is the power supply input requirement for this control motherboard?

   Typically powered via the system backplane, requiring a 24V DC input.

5. How is firmware updated on the UF C921 A101 board?

   Firmware is updated through ABB’s dedicated engineering tools or via serial interface when supported.

6. Does the board include onboard diagnostics?

   Yes, it includes self-monitoring and diagnostic LEDs for key operation and fault indication.

7. Can this board operate in electrically noisy environments?

   Absolutely. It includes EMC shielding and conforms to industrial EMI standards.

8. What is the typical signal processing cycle time of this board?

   The board processes signals in real-time, with cycle times under 1 millisecond depending on application complexity.

9. How is the UF C921 A101 cooled within an enclosure?

   It relies on passive cooling through system airflow; no onboard fan is required.

10. Can the board handle rapid switching signals from sensor feedback?

    Yes, the DSP architecture is designed for high-speed signal acquisition and control loop execution.
