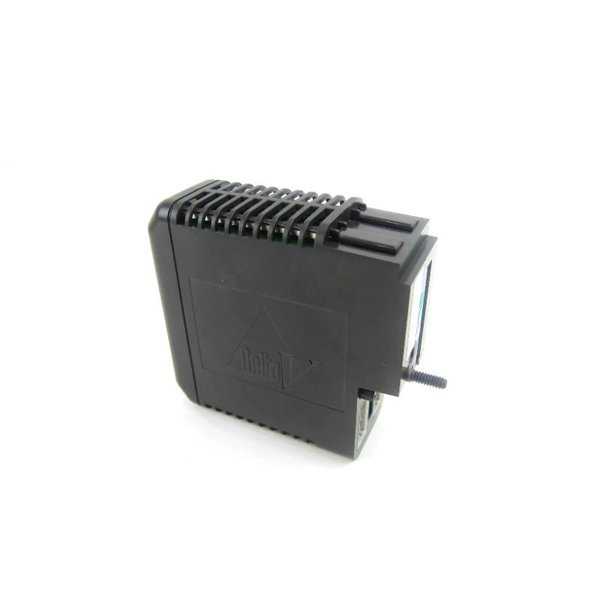

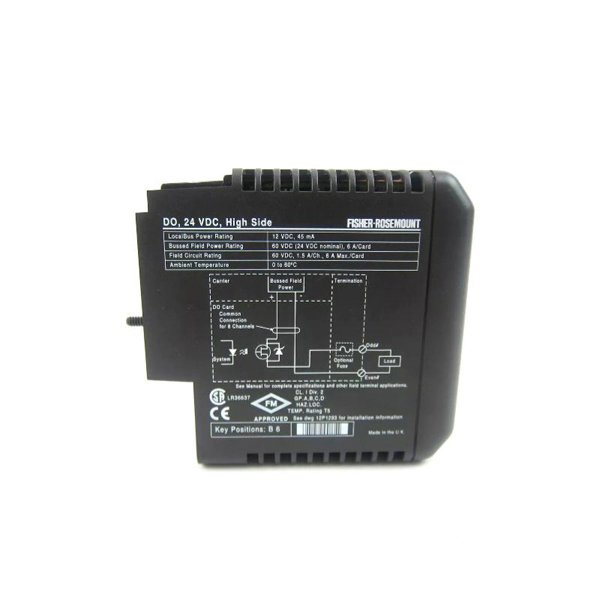

Emerson KJ3001X1-BJ1 12P0555X152 Discrete Output Module

The Emerson KJ3001X1-BJ1 (12P0555X152) is a High Side Discrete Output Module designed for integration with Emerson’s DeltaV distributed control system (DCS). This module facilitates precise control over discrete devices such as solenoids, relays, and indicators, making it an essential component in industrial automation.​

Product Specifications

Product Applications

The KJ3001X1-BJ1 module is utilized across various industries for controlling discrete devices. Common applications include:​

• Manufacturing Plants: Managing actuators and solenoids in automated assembly lines.​

• Energy Sector: Controlling relays and indicators in power generation and distribution systems.​

• Chemical Processing: Operating valves and alarms to ensure safe processing operations.​

Product Advantages

• Seamless Integration: Designed specifically for the DeltaV DCS, ensuring compatibility and ease of integration.​

• Compact Design: Its small footprint allows for efficient use of control cabinet space.​

• Reliable Performance: Built to withstand harsh industrial environments with robust shock and vibration resistance.​

• Diagnostic Capabilities: Features channel and module status LEDs for real-time monitoring and fault detection.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the KJ3001X1-BJ1 module?

   • It serves as a high side discrete output module for controlling devices like solenoids and relays within the DeltaV DCS.

2. How many output channels does this module provide?

   • The module offers 8 discrete output channels.​

3. What are the dimensions and weight of the module?

   • It measures 107 x 41 x 105 mm and weighs 0.67 kg.​

4. What is the operating voltage of the module?

   • The module operates at 24 VDC high side.

5. Can this module operate in extreme temperatures?

   • Yes, it functions within a temperature range of -20°C to +60°C (-4°F to +140°F).​

6. Is the module resistant to shock and vibration?

   • Yes, it withstands 5 g shock (11 ms half-sine wave) and 5 g rms vibration (10-2000 Hz) in operating mode.​

7. Does the module have diagnostic indicators?

   • Yes, it features channel status LEDs and module status LEDs for diagnostics.​

8. What types of devices can be controlled using this module?

   • It can control discrete devices such as solenoids, relays, and indicators.​

9. Is the module compatible with other control systems?

   • It is specifically designed for seamless integration with Emerson’s DeltaV DCS.​

10. Where is the module manufactured?

    • The module is manufactured in the USA.
