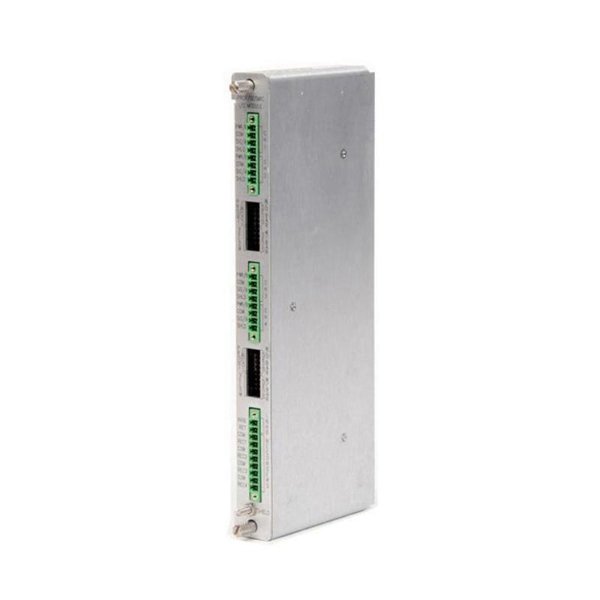

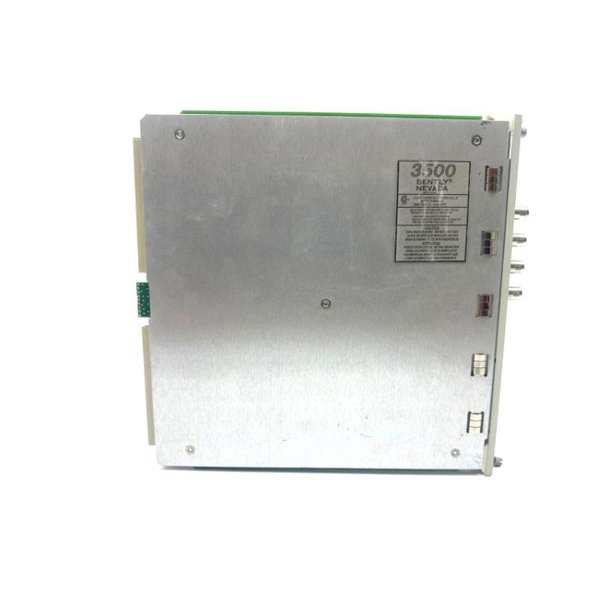

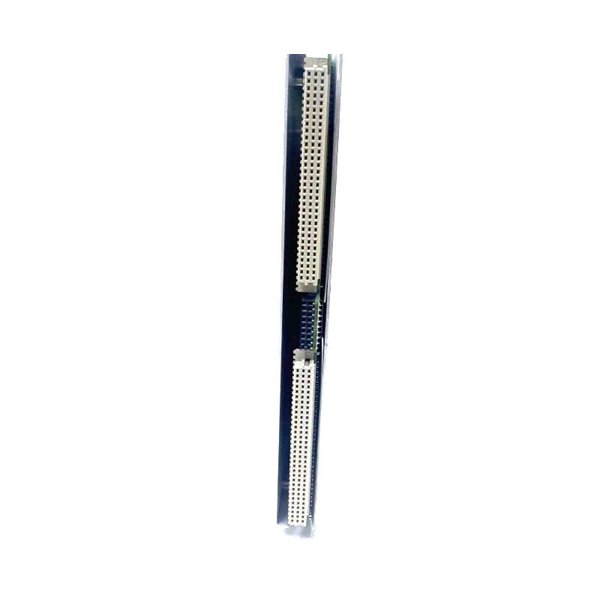

Bently Nevada 3500/42M 176449-02+128229-01 Proximitor Seismic Monitor
Manufacturer:Bently Nevada
Product Number:3500/42M 176449-02+128229-01
Product Type:Proximitor Seismic Monitor
Origin:USA
Dimensions:241.3 x 24.4 x 241.8 mm
Weight:0.91 kg
Views:35
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 3500/42M Proximitor Seismic Monitor is a four-channel vibration and position monitoring module designed to work with proximity probes and seismic transducers. It provides high-resolution measurements for machinery protection and condition monitoring, enabling operations and maintenance teams to detect and respond to potential mechanical issues in rotating equipment.
Applications
-
Steam and gas turbines
-
Centrifugal compressors
-
Electric motors and generators
-
Pumps and blowers
-
Gearboxes
-
Industrial fans and critical rotating machinery
Advantages
-
Multi-channel (4) monitoring with user-configurable parameters
-
Supports proximity, velocity, and acceleration sensors
-
Real-time alarming with programmable thresholds and delays
-
Advanced filtering: Notch, vector, band-pass, etc.
-
Shaft absolute and REBAM (Rolling Element Bearing Analysis Monitor) support
-
Integrated signal conditioning and 4–20 mA outputs
-
Compliance with industrial and marine certifications (ABS, DNV, ATEX, etc.)
Technical Specifications
| Parameter | Description |
|---|---|
| Channels | 4 (configurable in pairs) |
| Input Types | Proximity, acceleration, velocity |
| Signal Conditioning | Programmable filtering, gap/1X/2X/Smax |
| Buffered Outputs | Coaxial, one per channel |
| Recorder Output | 4–20 mA (per channel) |
| Accuracy | ±0.33% typical, ±1% max (most parameters) |
| Power Consumption | 7.7 W typical |
| Frequency Range | 3 Hz – 30,000 Hz (depending on config) |
| Alarm Setpoints | Configurable from 0 to 100% of full scale |
| Operating Temperature | -30°C to +65°C (without internal barriers) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Compliance | FCC, EMC, RoHS, CE, ABS, DNV, ATEX, IECEx, cNRTLus |
| Monitor Dimensions (H×W×D) | 241.3 × 24.4 × 241.8 mm |
| Monitor Weight | 0.91 kg |
| I/O Module (128229-01) | Internal termination, 241.3 × 24.4 × 99.1 mm, 0.20 kg |
Frequently Asked Questions (FAQ)
Q1: What types of sensors are compatible with the 3500/42M module?
A1: It supports proximity probes, velocity transducers (Velomitor), and acceleration sensors.
Q2: Can the monitor operate with mixed sensor types on different channels?
A2: Yes, channels are configured in pairs and can support different sensor types in different pairs.
Q3: What filtering options are available for signal processing?
A3: Filters include high-pass, low-pass, notch (Not 1X), 1X/2X vector, and band-pass for REBAM.
Q4: Is the monitor compliant for hazardous areas?
A4: Yes, it holds approvals for Class I, Division 2 and ATEX Zone 2 installations, depending on the I/O module used.
Q5: What static values can be monitored?
A5: The monitor supports static values such as direct vibration, gap, 1X/2X amplitude and phase, Smax, REBAM spike, thrust position, and more.
Q6: Does it support alarm time delays?
A6: Yes, both alert and danger alarms have configurable delay settings from 0.1 to 400 seconds depending on the function.
Q7: How is data output managed?
A7: Each channel provides a 4–20 mA output and coaxial buffered outputs for transducer signals.
Q8: What is REBAM and how is it used in this module?
A8: REBAM is used for rolling element bearing monitoring, with user-programmable frequency bands and filters for spike, rotor, and element analysis.
Q9: Can this module detect shaft absolute vibration?
A9: Yes, it supports shaft absolute vibration and velocity via specialized I/O modules.
Q10: What is the required software for configuration?
A10: Configuration is done using 3500/01 software (v2.50+), and DM2000 for REBAM and advanced diagnostics.
