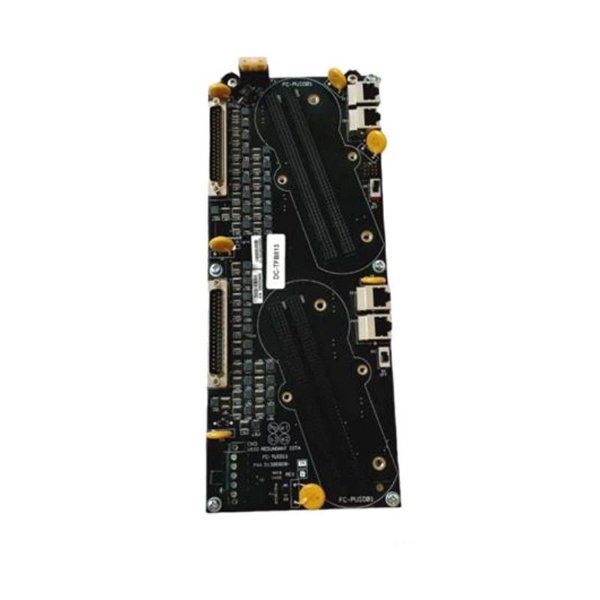

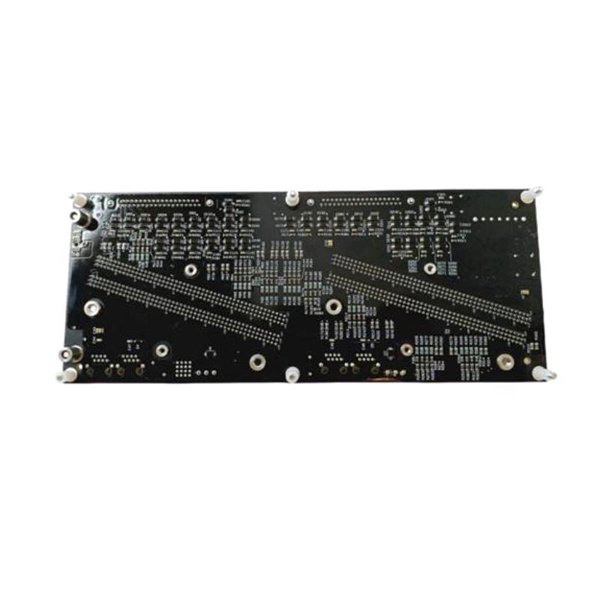

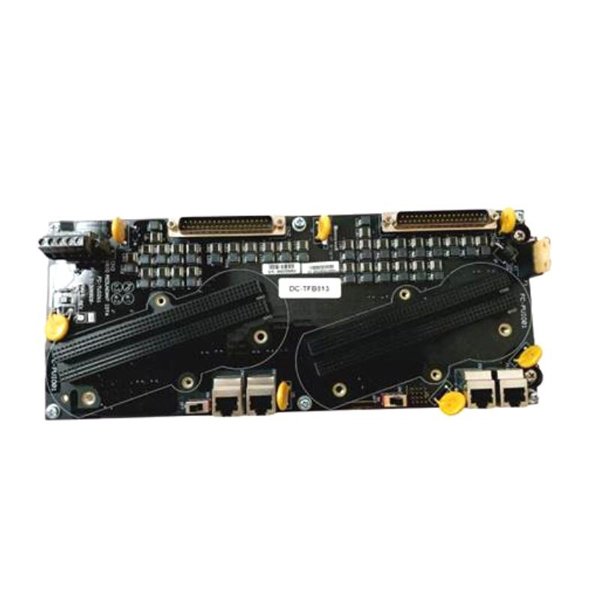

Honeywell FC-TUIO11 Safety Universal I/O Module

The Honeywell FC-TUIO11 is a robust terminal input/output module designed for use in industrial control systems, specifically within the Experion and TDC 3000 platforms. It acts as an interface between the process control system and field devices, enabling reliable data transmission for monitoring and control purposes.

Built with Honeywell’s proven automation technology, the FC-TUIO11 offers precise signal processing, enhanced isolation, and dependable performance even under harsh industrial conditions. It supports both digital and analog inputs, depending on configuration, and is optimized for integration into large-scale process automation environments.

Its compact form factor, rugged construction, and compatibility with existing Honeywell control architectures make it a favored choice for upgrading or expanding industrial systems without requiring extensive re-engineering.

Technical Parameters

Product Applications

The Honeywell FC-TUIO11 is widely deployed in industrial automation scenarios where precise and reliable I/O interfacing is critical. Common application areas include:

• Oil & Gas Processing — Integration of sensors, actuators, and control valves into SCADA and DCS systems.

• Petrochemical Plants — Control of process variables such as pressure, temperature, and flow.

• Power Generation — Real-time monitoring and control of turbine, boiler, and generator parameters.

• Water Treatment Facilities — Process automation and safety monitoring.

• Pharmaceutical Manufacturing — Accurate control of environmental and process conditions.

• Pulp & Paper Industry — Control of automated machinery and quality monitoring.

Product Advantages

1. High Reliability — Designed for continuous operation in demanding environments.

2. Compact Design — Saves cabinet space while still offering high channel density.

3. Enhanced Isolation — Protects sensitive control equipment from voltage surges and signal interference.

4. System Compatibility — Fully compatible with Honeywell Experion and TDC 3000 platforms.

5. Ease of Installation — Supports standard DIN rail or panel mounting.

6. Flexible Configuration — Multiple input and output channel options to match project requirements.

7. Long Service Life — Built with industrial-grade components to ensure durability.

8. Reduced Maintenance Costs — Stable performance minimizes unscheduled downtime.

FAQ

Q1: What type of signals does the FC-TUIO11 support?

A1: It supports both digital and analog signals, depending on the configuration and system requirements.

Q2: Is this module compatible with non-Honeywell systems?

A2: While it is optimized for Honeywell systems, integration with third-party platforms may be possible using appropriate interfacing modules.

Q3: How many channels does the FC-TUIO11 provide?

A3: It can support up to 16 input channels and up to 8 output channels, depending on configuration.

Q4: Can the module operate in extreme temperatures?

A4: Yes, it is rated for operation between 0 °C and +60 °C, with storage capability down to −40 °C.

Q5: What kind of isolation does the FC-TUIO11 have?

A5: It features both optical and galvanic isolation to protect against electrical noise and surges.

Q6: Does the module require a separate power supply?

A6: It operates on a nominal 24 VDC supply, typically provided through the system backplane.

Q7: Is the FC-TUIO11 field-serviceable?

A7: It is designed for minimal maintenance; however, replacement should be carried out by trained technicians.

Q8: What industries most commonly use this module?

A8: Oil & gas, power generation, petrochemicals, water treatment, and manufacturing industries are common users.

Q9: How is the module mounted?

A9: It can be mounted on a DIN rail or directly on a panel, depending on the control cabinet design.

Q10: Is firmware upgrading required?

A10: Firmware upgrades are generally not required for basic operation, but system compatibility updates may be applied during major control system upgrades.
