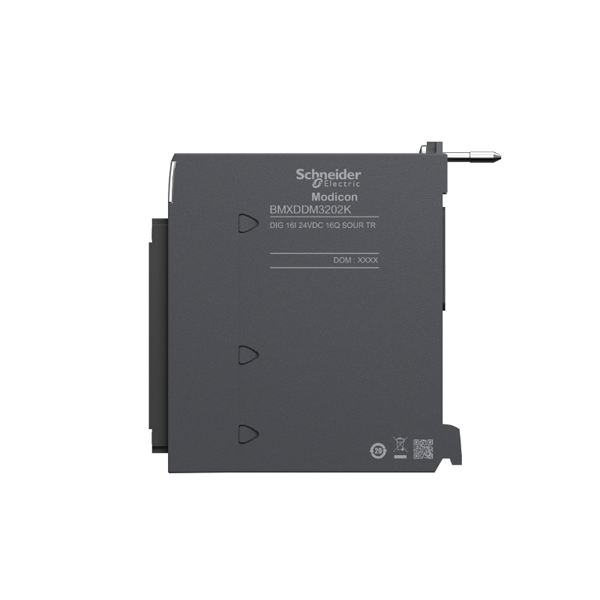

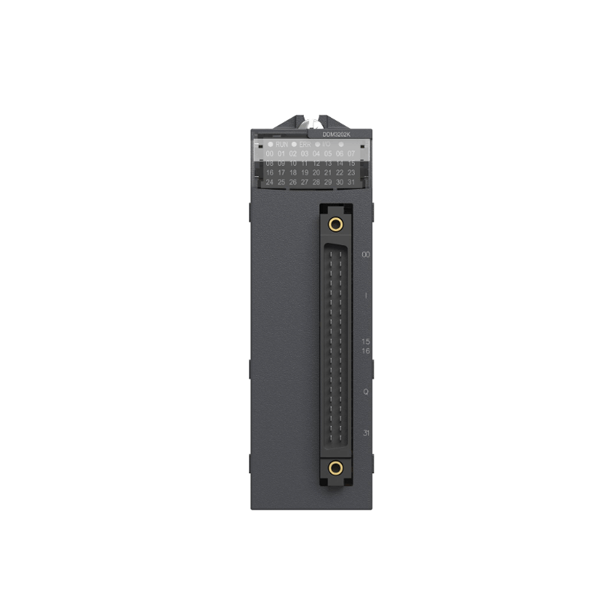

Schneider BMXDDM3202K Discrete Mixed I/O Module

The Schneider BMXDDM3202K is a high-performance discrete mixed I/O module designed for use in Modicon M340 PLC systems. This module combines 16 digital inputs and 16 digital outputs, making it ideal for applications that require both input monitoring and output control in a compact and efficient package.

The BMXDDM3202K module is widely used in industrial automation, process control, and machine automation, where it ensures seamless and reliable operation. With its robust design and compatibility with Schneider Electric’s Modicon M340 and M580 series, this module provides enhanced flexibility and scalability for various industrial environments.

Product Specifications

Applications

The Schneider BMXDDM3202K is widely used in industrial automation and control systems across various industries, such as:

• Manufacturing Automation – Used to control and monitor machines in production lines.

• Process Control – Provides real-time monitoring and actuation for industrial processes.

• Building Automation – Controls lighting, HVAC systems, and other utilities.

• Energy Management – Used in power plants and substations to manage electrical loads.

• Material Handling – Controls conveyors, sorters, and automated storage/retrieval systems.

Advantages

• Compact Design – A combination of 16 digital inputs and 16 digital outputs in a single module, saving space in control panels.

• High-Speed Response – Less than 1ms response time, ensuring fast and accurate signal processing.

• Reliable Performance – Built-in short-circuit protection and overload protection ensure long-term reliability.

• Seamless Integration – Fully compatible with Modicon M340 and M580 PLCs, reducing setup complexity.

• Industrial-Grade Durability – Operates in extreme conditions with a wide temperature range of -10°C to +60°C.

• Easy Diagnostics – LED indicators provide real-time status for each input and output channel.

• Energy Efficient – Optimized power consumption, making it a cost-effective solution for automation systems.

• Scalability – Easily expandable with additional I/O modules for larger control systems.

FAQ

1. What is the Schneider BMXDDM3202K module used for?

   • It is a discrete mixed I/O module used for monitoring 16 digital inputs and controlling 16 digital outputs in industrial automation systems.

2. What PLCs are compatible with BMXDDM3202K?

   • It is designed for Schneider Modicon M340 and M580 PLC series.

3. What type of signals does this module support?

   • It supports 24V DC digital (discrete) signals with both sinking and sourcing configurations.

4. How is the module mounted?

   • It is DIN rail mountable, making installation easy and secure.

5. What is the response time for the module?

   • The module has a response time of less than 1ms, ensuring high-speed signal processing.

6. Does BMXDDM3202K have built-in protection features?

   • Yes, it includes short circuit and overload protection for enhanced reliability.

7. What is the operating temperature range?

   • The module operates between -10°C to +60°C, making it suitable for harsh industrial environments.

8. How much does the module weigh?

   • It weighs 0.11 kg.

9. Can I use this module in energy management applications?

   • Yes, it is widely used in power plants, substations, and load management systems.

10. How do I diagnose issues with the module?

• The module has LED indicators for each input and output, providing real-time status updates for diagnostics.
