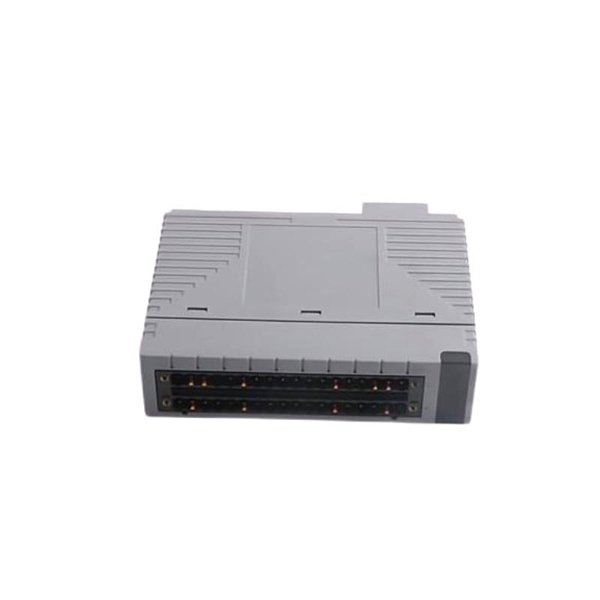

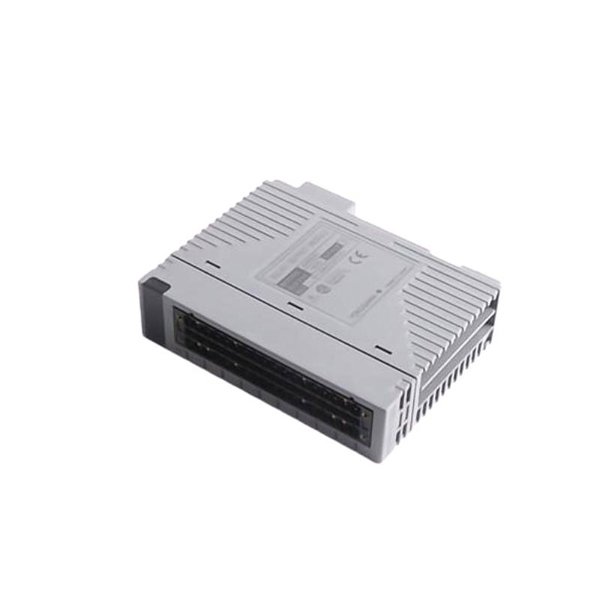

Yokogawa ADR541-P10 Relay Output Module

The Yokogawa ADR541-P10 is a high-performance Relay Output Module designed for industrial automation systems. As part of Yokogawa’s renowned FA-M3 family, the ADR541-P10 integrates seamlessly into Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and other process control environments. Engineered with reliability and robustness in mind, this module facilitates secure and isolated control of field devices through relay-based outputs.

The ADR541-P10 supports multiple output points, each configured for independent control. It offers galvanic isolation, safeguarding control logic from field-level electrical noise and surges. Built to meet the demands of mission-critical environments, this relay module is commonly used in sectors such as petrochemical, power generation, water treatment, and manufacturing automation.

Product Specifications

Product Applications

• Industrial Automation Systems – Used to actuate solenoids, relays, and contactors.

• Power Plants – Ideal for controlling breaker circuits and turbine valve logic.

• Chemical and Petrochemical Plants – Drives alarms, valve control, and interlocks.

• Water Treatment Facilities – Controls pumps, valves, and filter operations.

• Building Management Systems (BMS) – Interfaces with HVAC, fire alarms, and lighting systems.

• Manufacturing Lines – Controls conveyor motors, robotic arms, and output stations.

Product Advantages

• Reliable Mechanical Isolation – Ensures secure operation in high-voltage and noisy environments.

• Modular Integration – Easily installs within FA-M3 base units without rewiring system logic.

• Compact Form Factor – Saves space in panel installations while supporting dense I/O configurations.

• Long Lifecycle Design – Relay contacts rated for extended switching operations.

• Ease of Maintenance – Detachable terminal blocks simplify wiring and replacement.

• LED Status Indicators – Provides clear channel activity and fault visualization.

• Broad Temperature Tolerance – Designed to operate in extreme industrial conditions.

Frequently Asked Questions (FAQ)

1. What type of output does the ADR541-P10 provide?

   It provides relay (dry contact) outputs with SPST-NO contact type.

2. How many output channels are available?

   The module supports 8 independently controlled relay outputs.

3. Is the ADR541-P10 hot-swappable?

   No, the module should only be inserted or removed when the system is powered down.

4. Can it be used in safety-critical systems?

   While reliable, it is not safety-rated (SIL); consult Yokogawa’s safety modules for such use.

5. What type of loads can be connected?

   Loads up to 2 A at 250 VAC or 30 VDC can be switched directly by each relay.

6. Does it provide short-circuit protection?

   No direct short-circuit protection. External fusing is recommended.

7. How do I wire the relay outputs?

   Use the removable terminal block; refer to the wiring diagram in the user manual.

8. Are output channels individually isolated?

   Yes, all channels are isolated from logic and from each other through relays.

9. Can the module operate in high humidity?

   Yes, up to 95% RH, non-condensing.

10. What is the replacement cycle or life expectancy?

    Typically over 100,000 mechanical operations, depending on load and usage frequency.
