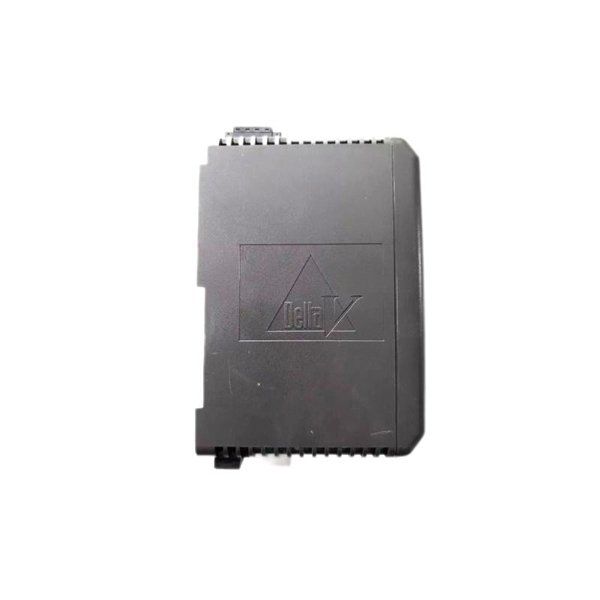

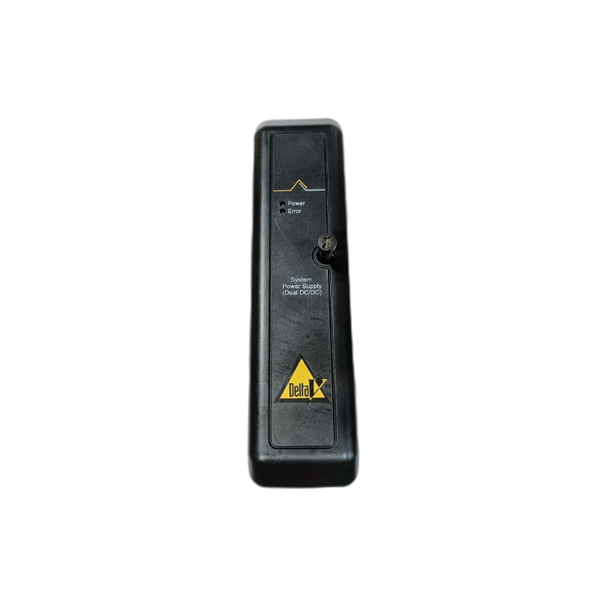

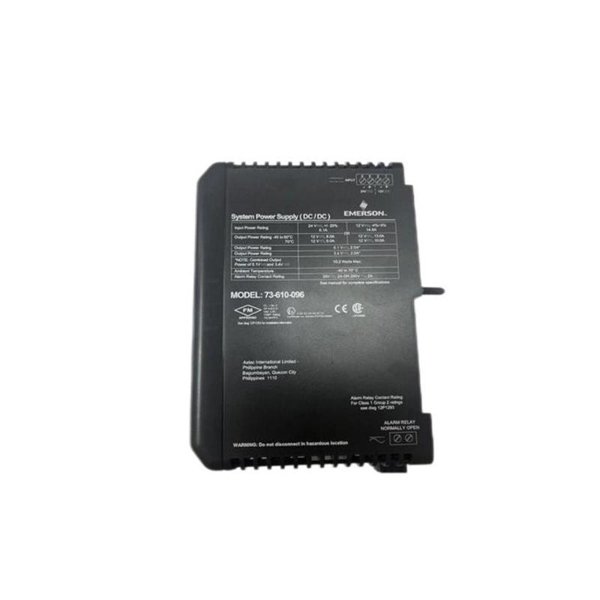

Emerson KJ1501X1-BC3 System Dual DC Power Supply

The Emerson KJ1501X1-BC3 System Dual DC Power Supply is a reliable and high-performance power supply designed to support industrial control systems, including process automation, control loops, and instrumentation systems. It provides stable and continuous DC power to the devices that require it, ensuring smooth operation in demanding environments. This power supply module is engineered for use in industries such as oil and gas, chemical processing, power generation, and manufacturing, where uninterrupted power delivery is crucial for operational safety and efficiency.

Emerson’s KJ1501X1-BC3 features dual outputs, allowing for redundancy and greater system reliability. It is built to meet the specific needs of industrial control applications, offering a consistent and noise-free power output that protects sensitive equipment from power fluctuations. Its robust design and easy integration into existing systems make it an ideal choice for mission-critical applications.

Product Specifications

Below are the key specifications for the Emerson KJ1501X1-BC3 System Dual DC Power Supply:

Product Applications

The Emerson KJ1501X1-BC3 Dual DC Power Supply is designed for a wide range of industrial applications that require reliable and efficient power for control systems. It is ideal for:

• Oil and Gas: Ensuring reliable power for control systems in drilling rigs, pipeline control, and refinery operations.

• Chemical Processing: Providing continuous power for process control loops and safety systems in chemical plants.

• Power Generation: Supporting control systems in power plants, including turbine control, boiler management, and generator protection.

• Manufacturing Automation: Powering automation systems, robotics, and material handling equipment in production facilities.

• Water Treatment: Supporting power to control valves, pumps, and sensors in water treatment plants and municipal water systems.

The dual-output system allows for redundancy, making it ideal for mission-critical operations where a failure in the power supply could result in significant downtime or safety issues.

Product Advantages

• Redundant Power Supply: The dual-output configuration ensures system redundancy, providing a failover mechanism in case of a power supply failure, which enhances system reliability.

• High Efficiency: With an efficiency rate of 92%, the KJ1501X1-BC3 minimizes energy consumption, reducing operating costs while providing reliable power.

• Compact Design: Its rack-mounted design, measuring just 89 × 140 × 38 mm, saves space in control panels or enclosures, making it suitable for environments with limited space.

• Wide Operating Temperature Range: The KJ1501X1-BC3 operates within a temperature range of -20°C to +60°C, making it suitable for use in harsh industrial environments.

• International Standards Compliance: The power supply meets CE, UL, and CSA standards, ensuring that it meets international safety and quality requirements.

• Ease of Integration: The 19-inch rack-mounted design allows for straightforward integration into existing control systems and infrastructure.

• Environmental Protection: With an IP20 rating, the module offers protection against dust and other environmental factors, ensuring long-lasting performance even in challenging conditions.

• Low Power Consumption: With a power consumption of just 240W, this module is energy-efficient and helps reduce the overall power usage of industrial systems.

• Durability: Built to withstand the rigors of industrial environments, the KJ1501X1-BC3 is designed for longevity and minimal maintenance.

FAQ

1. What is the output voltage of the Emerson KJ1501X1-BC3?

   • The output voltage is 24V DC ± 5%, suitable for powering most control systems.

2. How many outputs does the KJ1501X1-BC3 provide?

   • It provides dual outputs, offering redundancy to ensure reliable performance.

3. What is the current rating per output channel?

   • Each output channel provides 10A of current.

4. What is the power consumption of this power supply?

   • The power supply consumes 240W during operation.

5. What is the weight of the KJ1501X1-BC3?

   • The power supply weighs 0.5 kg.

6. What is the size of the KJ1501X1-BC3?

   • The dimensions are 89 × 140 × 38 mm.

7. What is the efficiency of the power supply?

   • The KJ1501X1-BC3 has an efficiency rate of 92%, making it energy-efficient.

8. What is the temperature range for the KJ1501X1-BC3 to operate?

   • The operating temperature range is -20°C to +60°C.

9. Is the KJ1501X1-BC3 compliant with international standards?

   • Yes, it complies with CE, UL, and CSA standards.

10. How is the KJ1501X1-BC3 mounted?

    • The power supply is designed for 19-inch rack mounting, suitable for integration into control panels.
