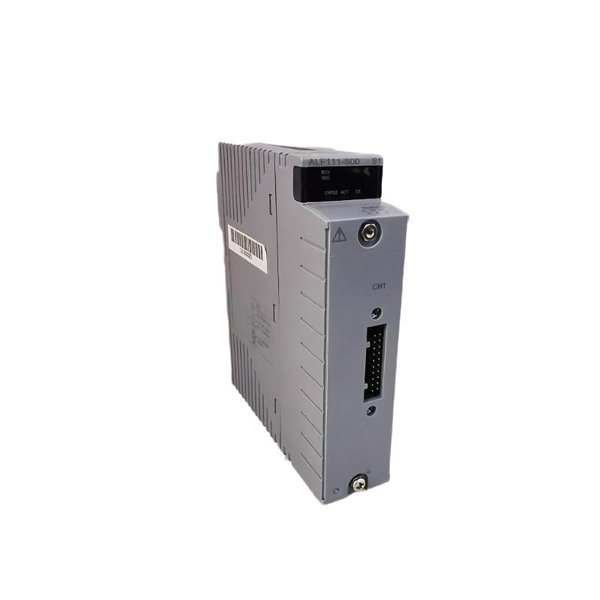

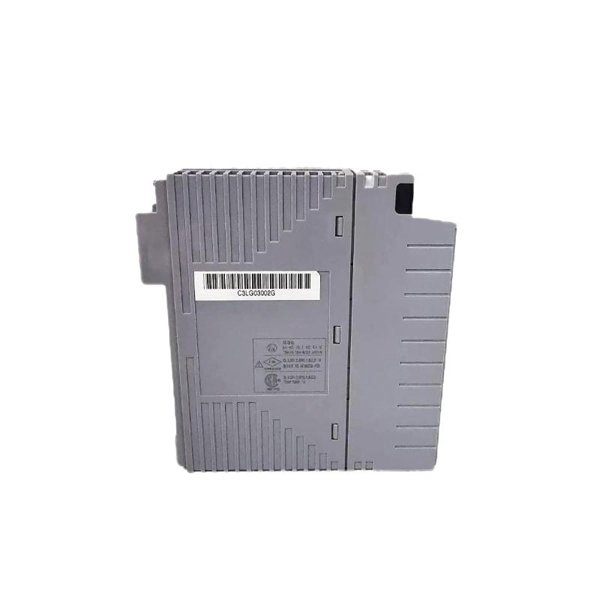

Yokogawa ALF111-S00 Fieldbus Communication Module

The Yokogawa ALF111-S00 Fieldbus Communication Module is a specialized communication interface designed to integrate field devices with control systems via FOUNDATION™ Fieldbus technology. As part of Yokogawa’s high-reliability control system family, this module plays a critical role in enabling digital communication between field instruments and control systems such as CENTUM VP or STARDOM. The ALF111-S00 offers advanced diagnostics, efficient communication, and seamless integration with digital process control systems.

Built for industrial environments, the ALF111-S00 delivers robust performance, ensuring accurate and consistent data transmission across the field network. It is engineered for long-term operation under demanding conditions, offering both operational efficiency and reduced lifecycle costs.

Specifications

Applications

The ALF111-S00 module is suitable for a wide range of applications in process industries. Some of its most common uses include:

• Chemical Plants: For monitoring and controlling processes using digital field instruments like transmitters and control valves.

• Oil & Gas Facilities: Facilitates secure and reliable data transmission between control rooms and field devices.

• Power Generation: Ensures stable communication in control systems for turbines, boilers, and other critical infrastructure.

• Pharmaceutical Manufacturing: Enhances data integrity in regulated production environments through precise communication.

• Water Treatment Plants: Used for continuous monitoring and control of pumps, valves, and sensors in distributed networks.

• Food & Beverage Production: Ensures product quality by maintaining process consistency via real-time data from field devices.

Advantages

• High Integration Capability: Seamlessly integrates with Yokogawa’s DCS and SCADA systems, improving system-wide performance and manageability.

• Foundation Fieldbus Technology: Offers digital two-way communication that supports advanced diagnostics and better process control.

• Reliable Communication: Provides noise immunity and consistent data flow, minimizing communication errors and downtime.

• Dual Segment Support: Operates two independent fieldbus segments, reducing the need for additional hardware and simplifying network architecture.

• Compact & Robust Design: Small form factor with industrial-grade durability ensures ease of installation and long service life.

• Advanced Diagnostics: Supports device-level diagnostics and alerts for predictive maintenance and operational efficiency.

• Energy Efficient: Low power consumption makes it suitable for applications where energy conservation is critical.

• Cost-Effective: Reduces cabling and installation costs compared to traditional analog communication setups.

FAQ (Frequently Asked Questions)

1. What is the main function of the ALF111-S00?

   It acts as a gateway between field instruments and control systems using FOUNDATION™ Fieldbus communication.

2. Is the ALF111-S00 compatible with Yokogawa CENTUM VP?

   Yes, it is fully compatible with CENTUM VP, STARDOM, and other Yokogawa control platforms.

3. What is the transmission speed of the ALF111-S00?

   It communicates at a standard speed of 31.25 kbps as per the FOUNDATION™ Fieldbus specification.

4. Can the ALF111-S00 handle two segments simultaneously?

   Yes, it supports two independent Fieldbus H1 segments in a single module.

5. What type of devices can be connected to the ALF111-S00?

   It can be connected to digital field devices such as pressure transmitters, temperature sensors, and control valves.

6. Is it certified for use in hazardous areas?

   Yes, certain models offer ATEX certification for use in explosive environments.

7. What is the typical power requirement for this module?

   It typically requires a 24V DC power supply with approximately 100 mA current draw.

8. What diagnostic capabilities does the module support?

   It offers device diagnostics, segment health checks, and supports predictive maintenance features.

9. What are the environmental limits of the ALF111-S00?

   It can operate in environments ranging from -20°C to +60°C, and 5%–95% RH non-condensing humidity.

10. How is the module mounted?

    The ALF111-S00 is designed for DIN rail mounting within control panels.
