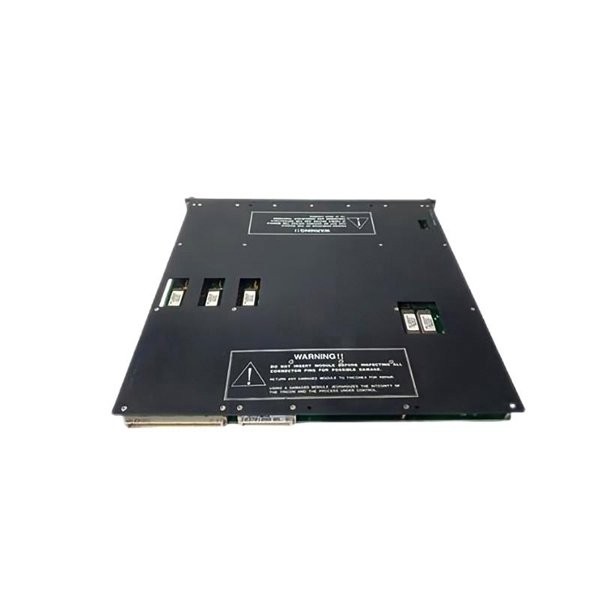

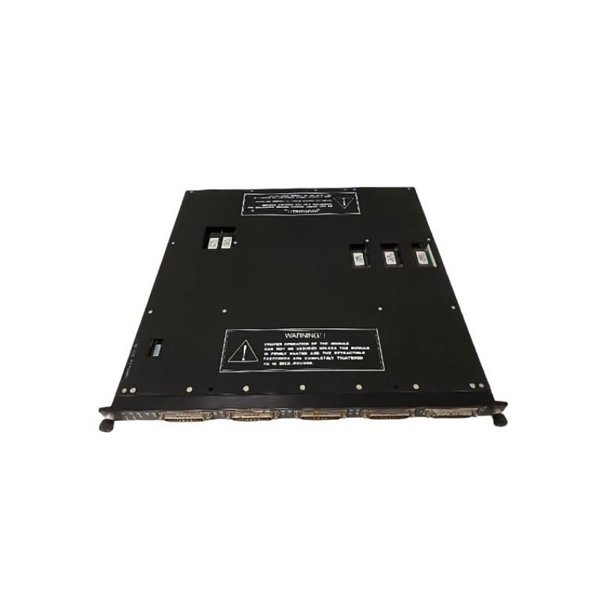

Triconex 4119 Enhanced Intelligent Module

The Triconex 4119 Enhanced Intelligent Module (EIM) is a specialized communication interface module designed to enhance the flexibility and reliability of the Triconex Safety Instrumented System (SIS). Engineered for industrial sectors that demand high integrity and non-stop availability, the 4119 module facilitates intelligent, high-speed communication between the Tricon controller and various external devices and protocols.

With embedded diagnostic capabilities, high-performance processing, and enhanced security mechanisms, the Triconex 4119 is an ideal fit for distributed control architectures in critical infrastructure. Its robust construction, certified for SIL 3 environments, allows it to operate efficiently in harsh industrial conditions such as oil & gas, nuclear energy, power generation, and chemical processing.

As part of Triconex’s Triple Modular Redundant (TMR) architecture, the 4119 ensures safety, control, and continuous operation without compromising process integrity.

Product Specifications

Product Applications

• SCADA and DCS Integration

  Acts as a protocol bridge to connect the Tricon SIS to distributed control systems and supervisory control applications.

• Remote I/O Communication

  Facilitates secure and reliable communication with remote I/O stations using serial or Ethernet protocols.

• Third-Party Device Interfacing

  Allows connection to third-party PLCs, HMI terminals, and smart sensors in complex automation networks.

• Data Acquisition and Historian Systems

  Streams operational and safety data to data historians for compliance, reporting, and optimization.

• Critical Alarm Management

  Used for transmitting alarm and trip signals to external annunciators or operator interfaces.

Product Advantages

• High-Speed Multi-Protocol Support

  Offers flexible communication over multiple industrial standards, reducing the need for converters or additional hardware.

• Enhanced Diagnostics

  Real-time self-checking and link integrity tests help prevent downtime and allow for proactive maintenance.

• Robust Security and Error Handling

  Ensures communication integrity with CRC validation, timeout monitoring, and status flags.

• Scalable Communication Architecture

  Easily integrates into both small and large-scale systems through modular scalability and configuration tools.

• SIL 3 Certified

  Ensures safety compliance for use in the most demanding industrial safety systems.

• LED Indicators for Rapid Troubleshooting

  Built-in front-panel diagnostics reduce response time during communication faults or setup errors.

FAQ

1. What protocols are supported by the Triconex 4119 module?

   It supports Modbus RTU, Modbus TCP, serial RS-232/RS-485, and Ethernet TCP/IP.

2. Is the 4119 module compatible with all Tricon versions?

   It is compatible with Tricon systems running version 10.x and above.

3. Can I update the firmware on the 4119 module?

   Yes, firmware updates can be performed via the TriStation 1131 configuration environment.

4. Does the 4119 provide communication redundancy?

   It supports redundant communication paths when used in TMR configurations.

5. How do I configure the 4119 module?

   Configuration is managed through TriStation 1131, Triconex’s dedicated engineering software.

6. What happens if communication fails on one port?

   The module detects the failure, switches to an alternate port if configured, and raises an alarm.

7. Is the 4119 module hot-swappable?

   Yes, it can be replaced without shutting down the system, minimizing process interruptions.

8. Does the module support diagnostics?

   Yes, it includes onboard diagnostic capabilities and front-panel LED indicators.

9. Can I connect the 4119 to third-party PLCs or HMIs?

   Absolutely. The module is designed for integration with third-party systems via standard protocols.

10. What is the physical footprint of the 4119 module?

    The module measures 326 x 260 x 50 mm and weighs 1.8 kg.
