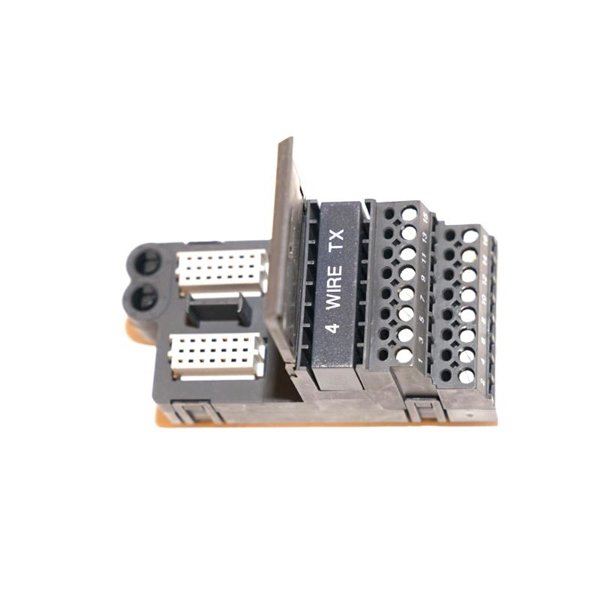

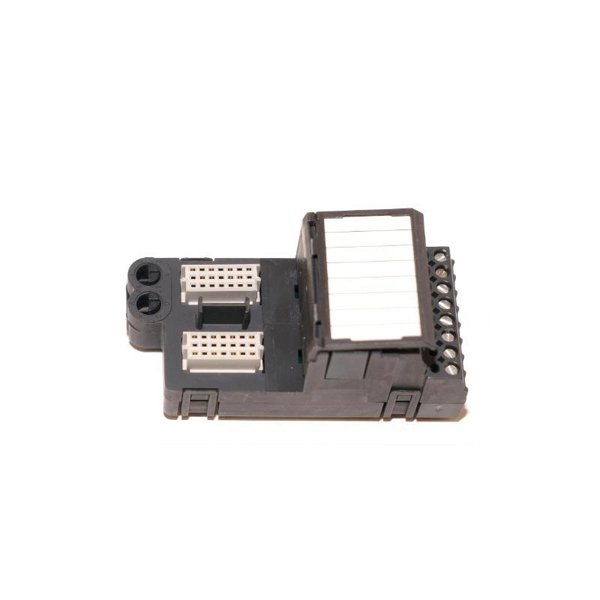

Emerson KJ4001X1-CC1 4-Wire I/O Terminal Block

The Emerson KJ4001X1-CC1 4-Wire I/O Terminal Block is a robust, high-reliability interface solution specifically engineered for use within the DeltaV™ Distributed Control System (DCS) architecture. Designed to support 4-wire field devices, the KJ4001X1-CC1 provides a secure and efficient way to connect analog and discrete input/output signals to the I/O cards.

This terminal block ensures clean signal transmission, ease of wiring, and streamlined maintenance, making it an indispensable component in modern industrial automation environments. With a durable construction and precise terminal layout, the KJ4001X1-CC1 enhances both system performance and safety in control panels across demanding industries like oil & gas, chemical processing, and energy production.

Technical Specifications

Product Applications

The KJ4001X1-CC1 is designed for industries and control applications where reliable, multi-channel signal interfacing is critical. Applications include:

• Refineries & Petrochemical Plants: For analog signal routing and control feedback loops.

• Offshore and Onshore Oil Rigs: Handles 4-wire sensor and actuator connectivity.

• Power Generation Facilities: Connects pressure sensors, RTDs, and valve positioners.

• Pharmaceutical and Biotech Plants: Ensures accurate measurement and control of batch process parameters.

• Water Treatment Plants: Interfaces with turbidity meters, pH sensors, and motor control units.

• Factory Automation: Connects with a wide range of sensors and devices requiring 4-wire configuration.

Product Advantages

1. True 4-Wire Support

   Fully supports field devices requiring separate power and signal wiring paths.

2. Compact Footprint

   Slim form factor helps optimize control cabinet space.

3. Reduced Downtime

   Supports easy and safe maintenance without full system shutdown.

4. Simplified Identification

   Terminal numbering and labeling reduce human errors during installation.

5. Stable Electrical Performance

   High dielectric strength and low contact resistance ensure signal integrity.

6. Modular Compatibility

   Seamless plug-in design for Emerson I/O cards with no adapter required.

7. Long Service Life

   Industrial-grade materials withstand high temperatures, vibration, and corrosion.

8. Quick Installation

   DIN-rail mounting with tool-free connection reduces setup time.

9. Safety and Compliance

   Certified to meet international electrical safety standards.

10. High Versatility

    Suitable for both analog and discrete I/O modules.

FAQ

1. Q: What types of signals can the KJ4001X1-CC1 handle?

   A: It supports both analog and digital input/output signals in 4-wire configuration.

2. Q: Can I use this block with non-Emerson systems?

   A: While designed for DeltaV™, it may be adapted to other systems, though compatibility must be verified.

3. Q: How is the block mounted in a panel?

   A: It is DIN-rail or screw-mounted using industry-standard rail dimensions.

4. Q: Are the terminals labeled for wiring identification?

   A: Yes, the terminals are pre-numbered and clearly labeled.

5. Q: What tools are needed for wire installation?

   A: A standard flat-blade screwdriver is sufficient for the screw terminals.

6. Q: What is the spacing between terminals?

   A: The terminal pitch is optimized at standard 5.08 mm for easy access.

7. Q: Is this terminal block hot-swappable?

   A: Yes, when used with the appropriate DeltaV I/O card configuration.

8. Q: Does it support shielded cables?

   A: Yes, shielded cables can be used, and grounding options are available.

9. Q: Is there a fuse in the block?

   A: No, this block does not contain fuses but can work alongside external fused blocks.

10. Q: What is the lifespan of this terminal block?

    A: It typically exceeds 10 years under industrial operating conditions.
