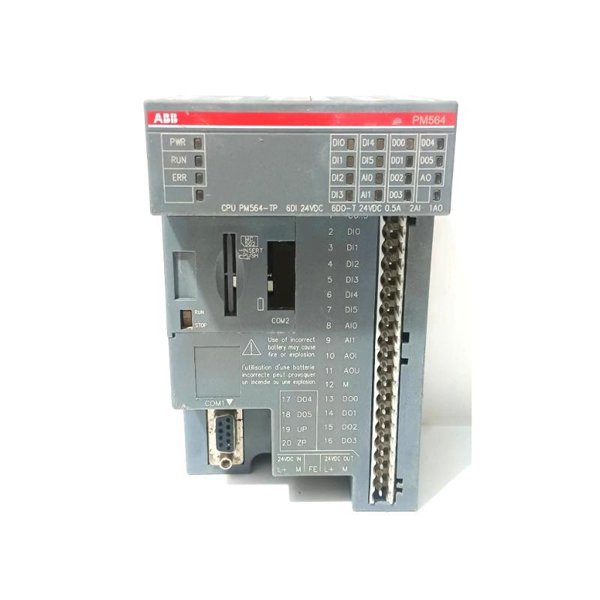

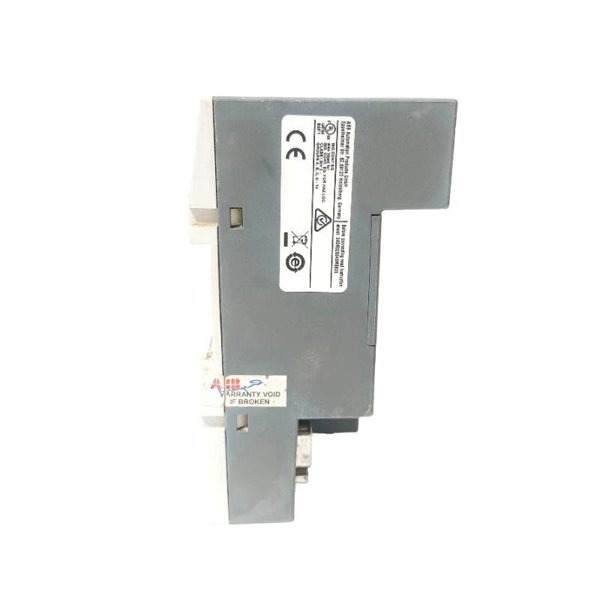

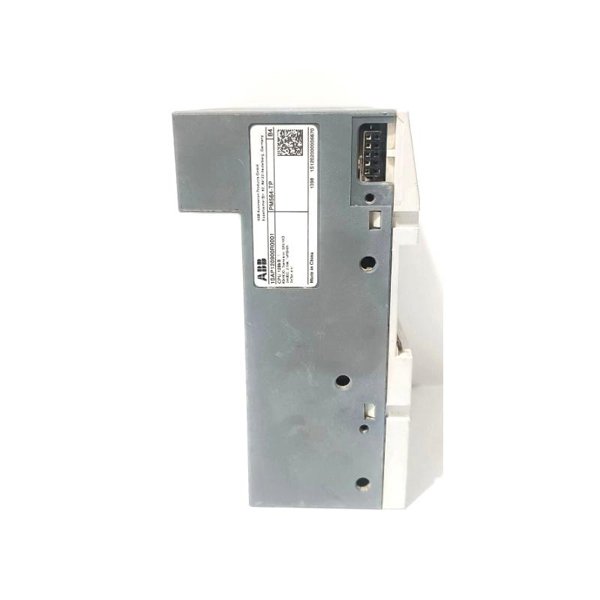

ABB PM564-TP 1SAP120900R0001 AC500 Programmable Logic Controller (PLC)
Manufacturer:ABB
Product Number:PM564-TP 1SAP120900R0001
Product Type:AC500 Programmable Logic Controller
Origin:Sweden (SE)
Dimensions:74 × 135 × 82 mm
Weight:0.29 kg
Views:36
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PM564-TP is a compact, cost-efficient programmable logic controller (PLC) from the AC500-eCo series. It features integrated digital and analog inputs/outputs, ideal for small to medium automation tasks. It provides high reliability and ease of programming for industrial applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1SAP120900R0001 |
| Product Type | Programmable Logic Controller (PLC) |
| Memory | 128 kB Flash EPROM |
| Digital Inputs | 6 |
| Digital Outputs | 6 (transistor type) |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Power Supply | 24 V DC |
| Processor | 32-bit Freescale ARM, 50 MHz |
| Programming Languages | IL, FBD, LD, SFC, ST, CFC |
| Operating Temperature | 0 … +60 °C (horizontal mount) |
| Mounting | DIN rail (horizontal/vertical) |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 74 × 135 × 82 mm |
| Weight | 0.29 kg |
Applications
-
Machine control in small and medium factories
-
Building automation
-
Packaging lines
-
Pump and compressor control
-
Material handling systems
Advantages
-
Compact design for space-saving installations
-
Integrated I/O reduces additional hardware costs
-
Supports multiple IEC 61131-3 programming languages
-
Simple maintenance with pluggable terminal blocks
-
Reliable and robust for industrial environments
FAQ
Q1: What power supply does the PM564-TP require?
A1: It requires a 24 V DC power supply.
Q2: How many digital inputs and outputs does it have?
A2: It has 6 digital inputs and 6 transistor-type digital outputs.
Q3: Does it support Ethernet communication?
A3: The standard PM564-TP does not include Ethernet; for Ethernet use, the PM564-TP-ETH variant is recommended.
Q4: What is the maximum operating temperature?
A4: It can operate up to +60 °C when mounted horizontally.
Q5: Can it be mounted vertically?
A5: Yes, but with reduced output load (50% per group).
Q6: What programming languages are supported?
A6: IL, FBD, LD, SFC, ST, and CFC are supported.
Q7: Is a real-time clock available?
A7: Yes, an optional RTC can be added with accessory TA561-RTC.
Q8: Does it have onboard analog inputs and outputs?
A8: Yes, 2 analog inputs and 1 analog output are integrated.
Q9: Is it suitable for marine applications?
A9: Yes, it meets IEC 61131-2 standards, suitable for industrial and marine use.
Q10: What is the protection level?
A10: It has an IP20 protection class when fully assembled.
