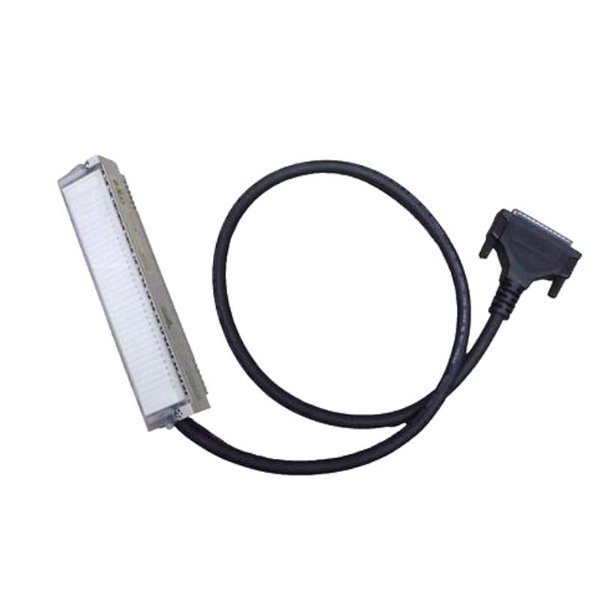

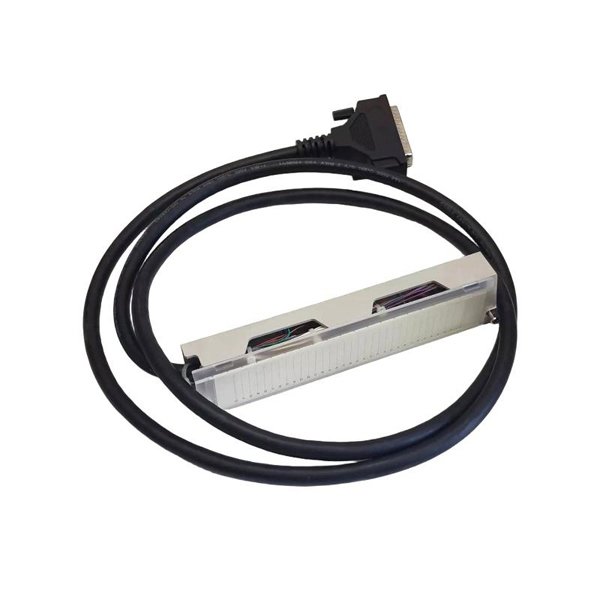

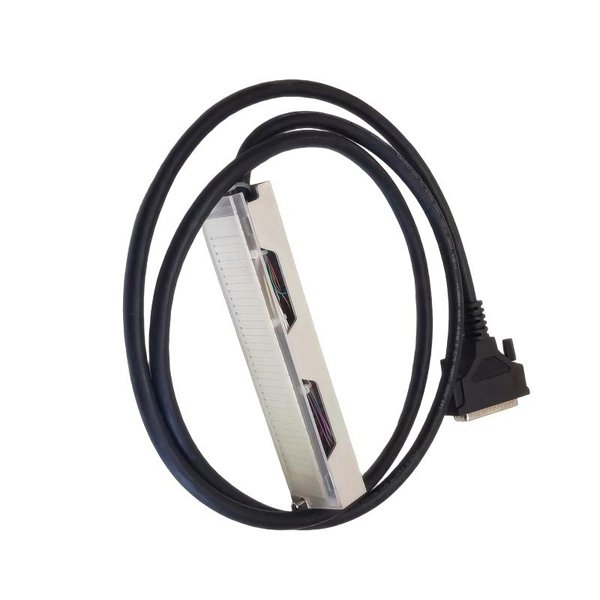

Schneider 140XTS01212 CableFast System Cable

The Schneider Electric 140XTS01212 CableFast System Cable is a robust, pre-terminated industrial wiring solution specifically designed for use with the Modicon Quantum automation platform. With a total cable length of 3.7 meters, it offers plug-and-play connectivity for I/O modules, remote drop interfaces, and control cabinet installations using the CableFast system. This cable enables faster wiring, increased signal integrity, and reduced on-site labor, making it a key component for efficient automation system deployment.

Designed to operate reliably in harsh industrial environments, this model features dual EMI shielding, industrial-grade insulation, and molded connectors that ensure consistent performance over long-term use. It supports both analog and digital data transmission across various I/O modules, making it highly versatile for a broad range of control system configurations.

Technical Specifications

Applications

The 140XTS01212 CableFast cable is engineered for use in automation environments requiring high reliability and low installation complexity. Key applications include:

• Process Automation Systems

  Used to interconnect I/O modules within chemical, oil & gas, and batch processing plants.

• Industrial Machinery

  Facilitates signal transmission in assembly lines, packaging machines, and CNC systems.

• Water Treatment Facilities

  Ideal for wiring remote I/O systems in pump stations and treatment control rooms.

• Power Distribution

  Supports monitoring and control in substations, generators, and electrical grids.

• Food & Beverage Production

  Clean cable routing and shielded construction suitable for hygiene-critical areas.

• Building Automation

  Used for advanced HVAC, lighting, and utility monitoring via distributed I/O.

Advantages

• Plug-and-Play Design

  Reduces installation time by eliminating manual connector termination.

• Consistent Cable Quality

  Factory-manufactured cables ensure standardization and fewer wiring errors.

• Enhanced Signal Protection

  EMI shielding minimizes the risk of signal degradation in noisy environments.

• Durability and Flexibility

  Rugged build resists bending, vibration, and chemical exposure.

• Optimized Length

  3.7 meters is ideal for applications needing extra distance within panels or across cabinets.

• Certified and Compliant

  Meets global electrical and safety standards for industrial use.

Frequently Asked Questions (FAQ)

1. What system is the 140XTS01212 cable compatible with?

It is specifically designed for use with Schneider’s Modicon Quantum series using the CableFast system.

2. How long is the cable?

This model is 3.7 meters (12.1 feet) in length.

3. Is the cable pre-terminated?

Yes, it includes factory-molded CableFast connectors, ensuring consistent quality and quick installation.

4. Can it be used for both analog and digital signals?

Yes, depending on the I/O module connected, the cable supports both analog and digital transmission.

5. Is the cable shielded?

Yes, it includes aluminum foil and braided shielding for EMI/RFI protection.

6. What certifications does this cable meet?

It meets CE, UL, RoHS, and IEC international compliance standards.

7. What is the diameter of the cable?

The outer diameter is 12 mm.

8. Is the cable flame-retardant?

Yes, it complies with IEC 60332-1 flame resistance standards.

9. Can this cable be used outdoors?

It is primarily designed for indoor control cabinets, though with proper protection it may be used in outdoor-rated enclosures.

10. What are the primary benefits of using CableFast cables?

They improve speed of installation, minimize wiring errors, and enhance system maintainability through modular wiring.
