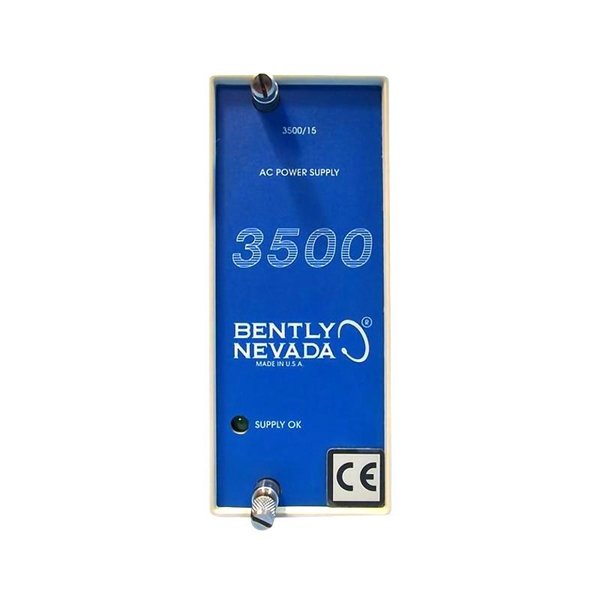

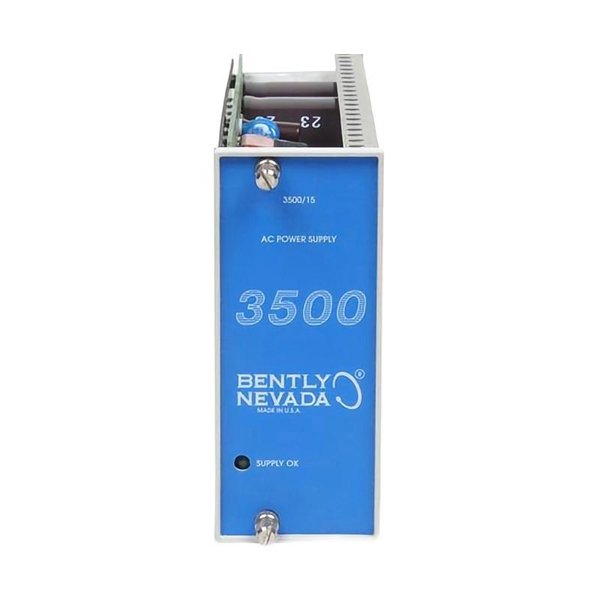

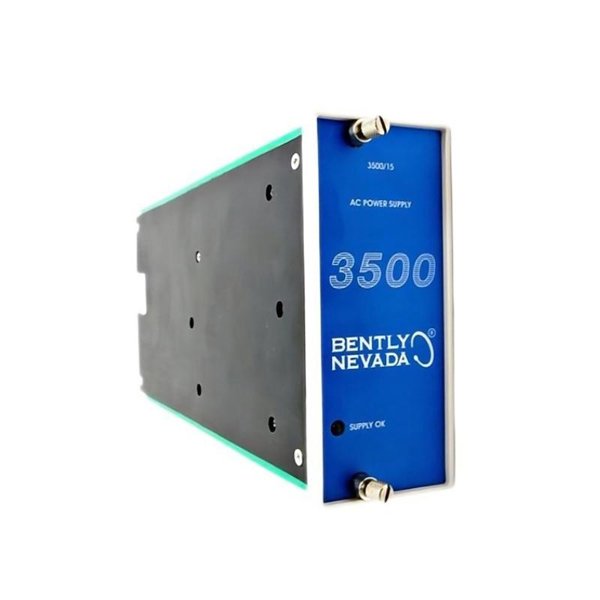

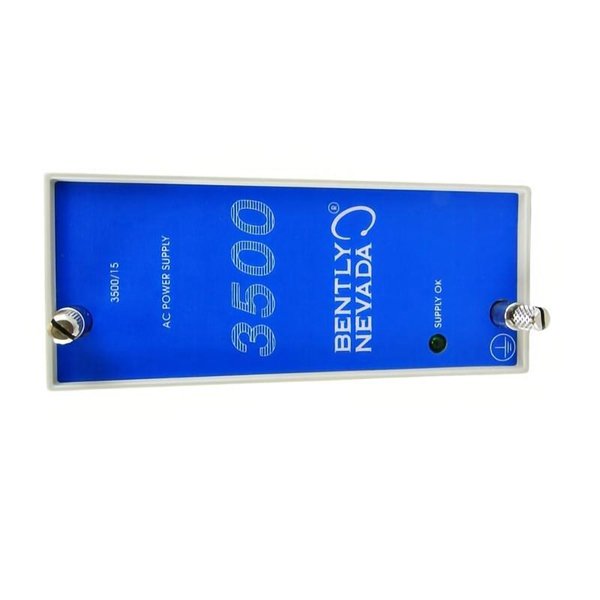

Bently Nevada 3500/15-07-07-00 Power Supply Module

The Bently Nevada 3500/15‑07‑07‑00 is a specialized 125 VDC power supply module designed for the Bently Nevada 3500 Machinery Protection System. Unlike the standard +24 VDC versions, this module delivers 125 VDC for applications requiring higher voltage rail, often seen in harsh or specialized industrial environments. Built for redundancy and continuous operation, it’s hot-swappable and optimized for zero-downtime installation, making it especially valuable for mission-critical rotating machinery in power generation, oil & gas, and industrial automation.

Technical Specifications

Applications

The 3500/15‑07‑07‑00 module is tailored for specialized systems that require a 125 VDC power rail, such as:

• High-voltage sensor networks in turbine/generator protection racks

• Industrial control systems where higher DC voltage minimizes current draw over long cables

• Oil & gas platforms requiring robust, redundant high-voltage supplies

• Heavy-duty compressor monitoring with elevated voltage for extended signal reliability

• OEM machinery applications that integrate the 3500 system into higher-voltage infrastructure

• Research or offshore environments needing high-voltage reliability under harsh conditions

Product Advantages

• High Voltage Capability: Offers regulated 125 VDC for systems requiring elevated voltage rails

• Redundancy Included: Operates in parallel for a fail-safe, uninterrupted power supply

• Zero-Downtime Service: Hot-swappable design allows safe replacement during operation

• Global Power Adaptability: Runs off 85–264 VAC mains worldwide without converter

• Built for Harsh Conditions: Resilient against vibration, temperature extremes, and surge events

• Immediate Diagnostics: LED indicators give clear status at a glance

• Space-Efficient Integration: Compact, single-slot format allows full rack utilization

• Fully Compatible: Works seamlessly with the entire Bently 3500 module family

• Stable Voltage Output: Delivers clean, regulated voltage essential for high-voltage modules

• Trusted Reliability: Tried-and-tested in industrial systems globally

Frequently Asked Questions (FAQ)

1. Why use 125 VDC instead of 24 VDC?

125 VDC minimizes current draw for long cable runs and provides cleaner power for signal-sensitive applications.

2. Does this work with existing 24 VDC 3500 racks?

Yes – rack wiring must be compatible, but module is plug-compatible with 3500 slots.

3. Can it be redundant?

Yes, install two in parallel and they automatically share and switch if one fails.

4. Is it hot-swappable?

Absolutely. It can be replaced without shutting down the rack.

5. How do I check module status?

Two LEDs: Green (power OK), Red (fault condition).

6. What power protections are included?

Includes protections for voltage, current, and temperature anomalies.

7. Can I use it in explosive environments?

Yes, certified CE, UL, CSA, RoHS; suitable for zone-rated applications depending on rack housing.

8. Does output stay stable under load changes?

Yes, it maintains regulated 125 VDC even under varying output loads.

9. Does it need any special tools?

All front-panel connectors allow tool-free insertion and removal.

10. Will use of this module impact other devices?

Only if other modules expect 24 VDC. Use only within racks designed for 125 VDC power rails.
