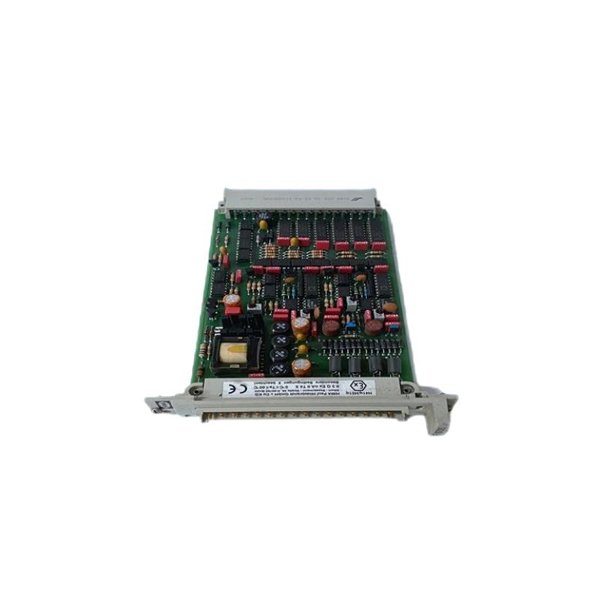

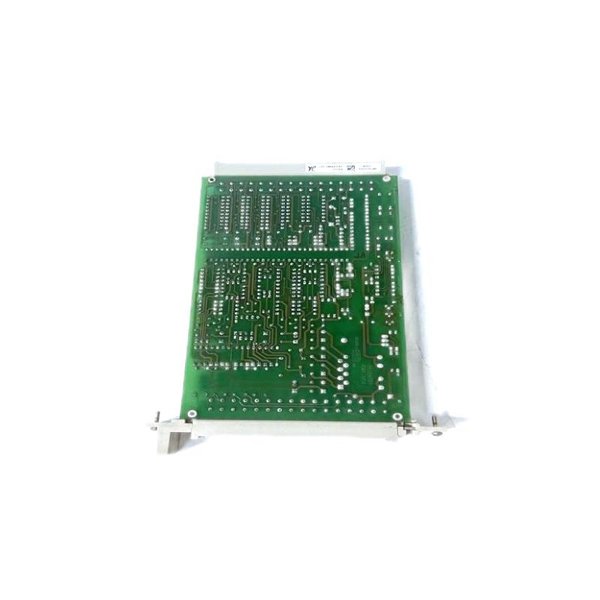

Hima F6220 Thermocouple Input Module

The HIMA F6220 Thermocouple Input Module is a high-precision module designed for industrial temperature measurement applications. As part of HIMA’s renowned safety and automation solutions, the F6220 provides reliable thermocouple signal processing for critical temperature monitoring in industries such as oil & gas, power generation, chemical processing, and manufacturing.

Equipped with multiple thermocouple input channels, this module supports various thermocouple types and ensures accurate temperature readings with high immunity to electrical noise. Designed for seamless integration into HIMA’s safety and control systems, the F6220 is ideal for applications where temperature stability and precision are paramount.

Technical Specifications

Applications

The HIMA F6220 module is widely used in various industries for precise and safe temperature monitoring, including:

• Oil & Gas: Monitoring temperature in pipelines, refining processes, and offshore platforms.

• Power Generation: Ensuring safe temperature control in turbines, boilers, and heat exchangers.

• Chemical Processing: Maintaining optimal conditions in reactors and distillation units.

• Pharmaceutical Manufacturing: Monitoring temperature-sensitive production processes.

• Metallurgy & Steel Industry: Measuring high-temperature furnace operations.

• Food & Beverage: Ensuring safe cooking and processing temperatures in industrial kitchens.

Advantages

• High Precision: Supports multiple thermocouple types with ±0.1% accuracy.

• Wide Temperature Range: Capable of measuring extreme temperatures from -100°C to +1300°C.

• Industrial-Grade Durability: Built to withstand harsh environments and electrical noise.

• Automatic Cold Junction Compensation: Enhances measurement accuracy in fluctuating conditions.

• SIL 3 Certified: Meets stringent safety requirements for critical processes.

• Fast Response Time: Less than 100ms for real-time temperature monitoring.

• Reliable Isolation: Galvanic isolation for each input prevents interference and ensures signal integrity.

• Easy Integration: Seamlessly connects to HIMA control systems for efficient process automation.

Frequently Asked Questions (FAQ)

1. What thermocouple types does the HIMA F6220 support?

   It supports Type K, J, T, E, N, R, S, and B thermocouples.

2. What is the maximum temperature the module can measure?

   It depends on the thermocouple type, but the maximum range is up to +1300°C.

3. Is the module suitable for safety-critical applications?

   Yes, it is SIL 3 certified according to IEC 61508 safety standards.

4. Can this module be integrated with other HIMA systems?

   Yes, it is designed to work seamlessly with HIMA safety and automation systems.

5. Does it provide cold junction compensation?

   Yes, it features automatic cold junction compensation for enhanced accuracy.

6. What is the response time of the F6220 module?

   It has a response time of less than 100ms.

7. Is the module resistant to electrical noise?

   Yes, it has galvanic isolation for each input channel to prevent interference.

8. What is the operating temperature range of this module?

   It operates between -20°C and +70°C.

9. Can it be used in humid environments?

   Yes, it has a humidity tolerance of 5% – 95% (non-condensing).

10. What industries commonly use the HIMA F6220?

    It is widely used in power generation, oil & gas, chemical processing, metallurgy, and pharmaceuticals.
