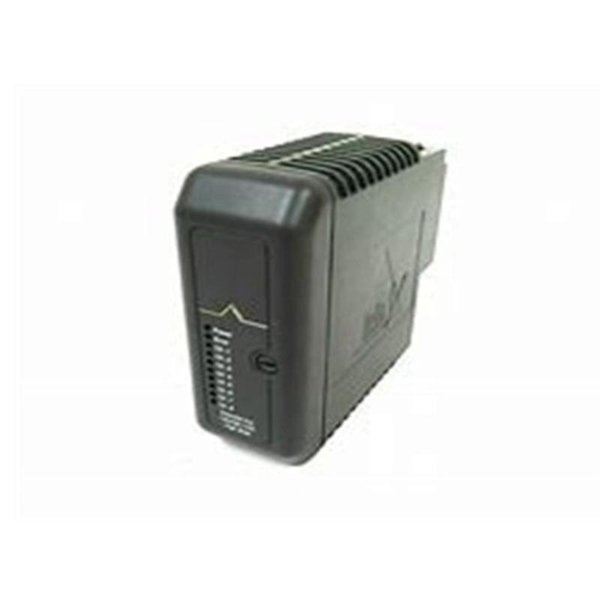

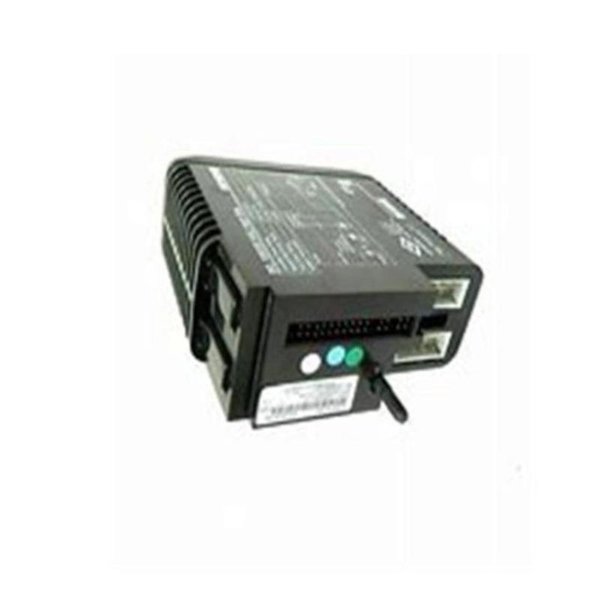

Emerson KJ3001X1-BH1+KJ3001X1-BK1 Input/Output Modules

The Emerson KJ3001X1-BH1 + KJ3001X1-BK1 modules are part of the DeltaV™ Distributed Control System (DCS) architecture, designed for high-performance and reliable analog or digital I/O operations. The KJ3001X1-BH1 acts as the I/O module itself, while the KJ3001X1-BK1 serves as the associated terminal block for field wiring. Together, they form a robust and flexible solution for connecting process signals to the DeltaV system, supporting real-time monitoring and control in demanding industrial environments.

Key Features

• High-density input/output capability

• Seamless integration with DeltaV DCS

• Field wiring connected via terminal block (BK1)

• Hot-swappable module for minimal downtime

• LED status indicators for diagnostics

• Electrical isolation between channels and system

• DIN rail or system carrier installation

• Suitable for analog or digital I/O depending on configuration

Technical Specifications

Industry Applications

• Oil & Gas Processing

• Power Generation

• Chemical & Petrochemical Plants

• Pulp & Paper Industry

• Water & Wastewater Treatment

• Pharmaceutical Manufacturing

• Food and Beverage Automation

Product Advantages

• Designed for critical control applications with high reliability

• Integrated diagnostics enhance system maintainability

• Easy installation and removal for reduced downtime

• Supports both analog and digital signal types

• Compact footprint suitable for space-constrained cabinets

• Field-proven in harsh industrial environments

Frequently Asked Questions (FAQ)

1. What is the role of KJ3001X1-BH1 and KJ3001X1-BK1?

   KJ3001X1-BH1 is the I/O module; KJ3001X1-BK1 is the terminal block used for field wiring.

2. Can this module handle both analog and digital signals?

   Yes, it supports both types based on system configuration.

3. Is this module hot-swappable?

   Yes, it can be replaced without shutting down the system.

4. What kind of diagnostic features are available?

   LED indicators provide visual status for module health and channel activity.

5. Is it compatible with all DeltaV systems?

   Yes, it integrates fully with DeltaV DCS systems.

6. What type of field devices can be connected?

   Sensors, actuators, transmitters, and contact switches among others.

7. Is field wiring done through KJ3001X1-BK1?

   Yes, the BK1 terminal block connects field devices to the module.

8. Are the channels electrically isolated?

   Yes, channel and system isolation is provided.

9. What certifications does it hold?

   CE, UL, CSA, and RoHS compliance for global industrial use.

10. How many channels does it support?

    Up to 16 I/O channels depending on the configured signal type.
