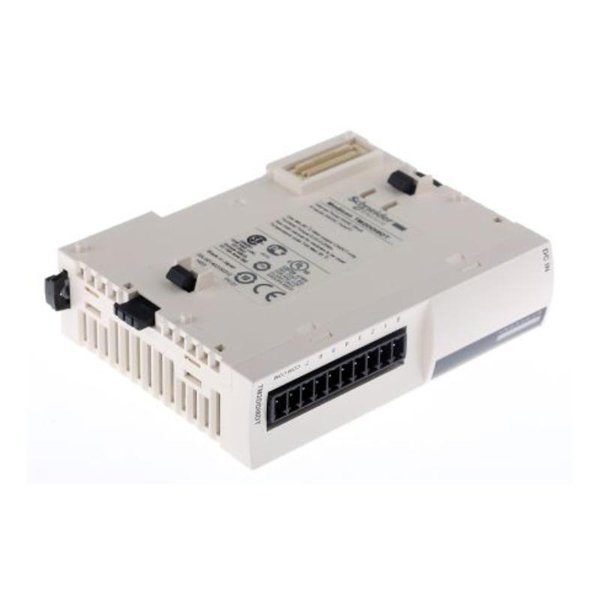

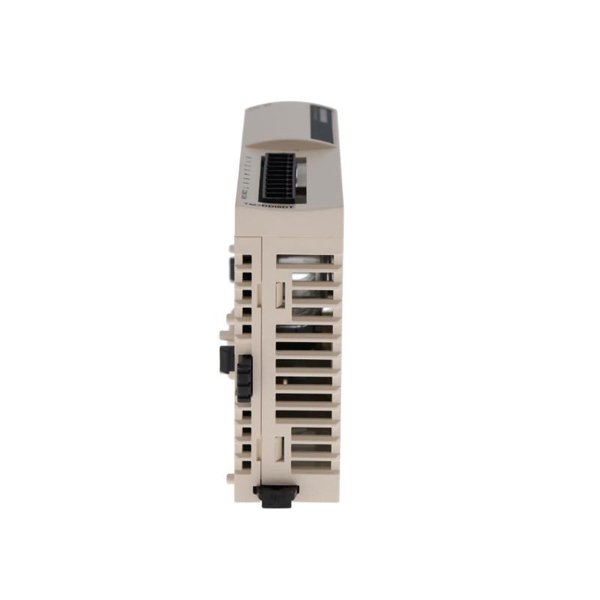

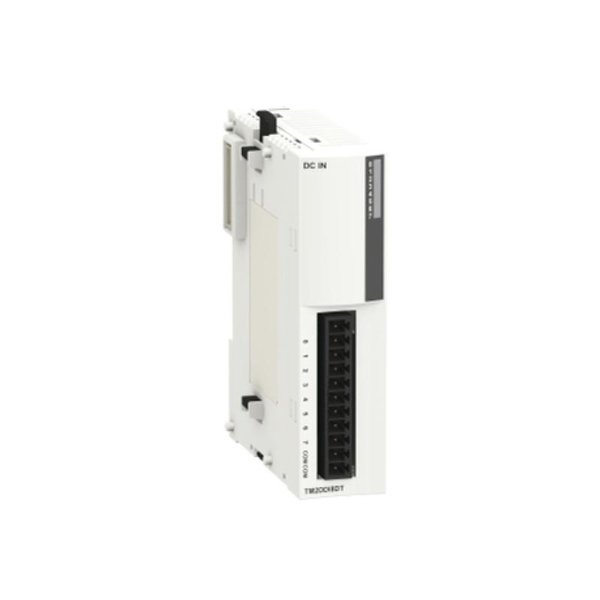

Schneider TM2DDI8DT Logic Controller
Manufacturer:Schneider
Product Number:TM2DDI8DT
Condition:Logic Controller
Origin:France
Dimensions:84.6x 27.3x 90mm
Weight:0.1 kg
Views:29
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The TM2DDI8DT features 8 digital inputs with advanced filtering and diagnostics. Below are the detailed specifications:
| Parameter | Value |
|---|---|
| Number of Inputs | 8 |
| Input Type | Sink/Source (24V DC) |
| Input Voltage | 24V DC (15-30V DC) |
| Current Consumption | 5mA per input (typical) |
| Response Time | ≤ 3ms |
| Isolation | 500V AC between field and logic |
| Connection Type | Screw terminal |
| Dimensions | 84.6x 27.3x 90mm |
| Weight | 0.1 kg |
| Operating Temp. | -25°C to +70°C |
| Protection Rating | IP20 |
Product Applications
The TM2DDI8DT is widely used in industrial automation for:
-
Machine Control: Monitoring sensors, switches, and buttons in automated machinery.
-
Process Automation: Data acquisition in manufacturing and assembly lines.
-
Material Handling: Integration with conveyor systems and robotic arms.
-
Energy Management: Input signal processing in power distribution systems.
-
Building Automation: HVAC and lighting control applications.
Product Advantages
-
High Reliability: Built to withstand industrial environments with robust isolation and filtering.
-
Easy Integration: Compatible with Modicon PLCs for seamless system expansion.
-
Compact Design: Space-saving form factor for dense control panels.
-
Flexible Input Configuration: Supports both sink and source input wiring.
-
Fast Response Time: Ensures real-time data acquisition for critical applications.
-
Diagnostic Capabilities: LED indicators for input status and fault detection.
Frequently Asked Questions (FAQ)
-
What PLCs are compatible with the TM2DDI8DT?
It is compatible with Modicon M221, M241, and M251 PLCs.
-
Can this module handle both sink and source inputs?
Yes, it supports both sink and source input configurations.
-
What is the maximum input voltage?
The module accepts 24V DC inputs with a range of 15-30V DC.
-
How fast is the response time?
The response time is ≤ 3ms per input.
-
Is the module isolated?
Yes, it provides 500V AC isolation between field and logic sides.
-
What is the operating temperature range?
It operates from -25°C to +70°C.
-
Does it have diagnostic LEDs?
Yes, each input channel has an LED for status indication.
-
What is the protection rating?
The module has an IP20 rating for basic dust protection.
-
Can I expand the number of inputs?
Yes, multiple TM2DDI8DT modules can be added to a compatible PLC.
-
What is the weight of the module?
It weighs 0.1 kg.
