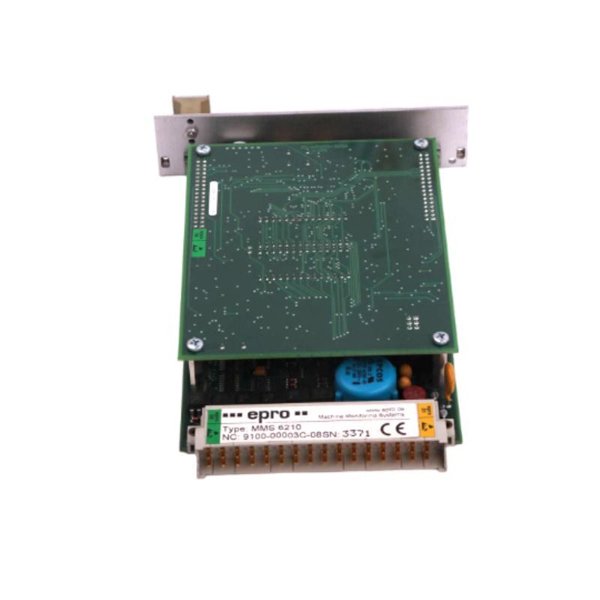

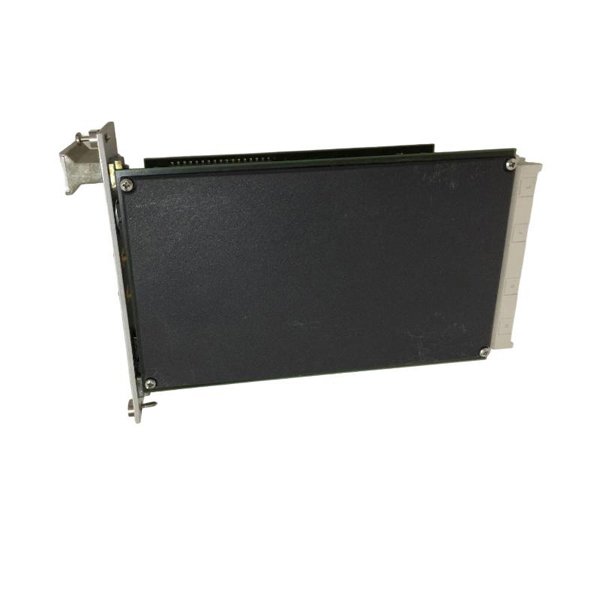

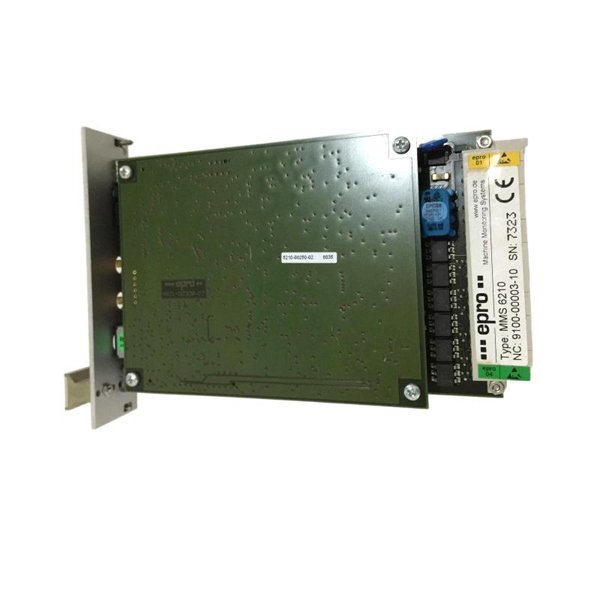

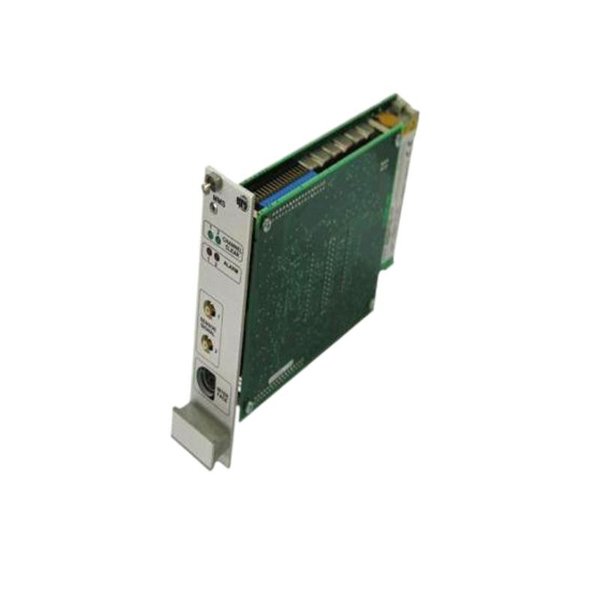

Epro MMS6210 Dual-Channel Shaft Displacement Monitoring Module

The Epro MMS6210 is a high-precision dual-channel shaft displacement monitoring module designed for continuous machinery condition monitoring. As part of the Epro MMS6000 series, the MMS6210 is primarily used to measure and monitor shaft displacement in rotating equipment such as turbines, compressors, motors, and pumps.

This module operates by processing signals from non-contact eddy current proximity sensors and converts them into meaningful shaft displacement values. Its dual-channel capability enables simultaneous monitoring of two independent measuring points, offering greater flexibility and reduced rack space requirements.

Engineered for industrial reliability and diagnostic accuracy, the MMS6210 is equipped with alarm relays, LED status indicators, and configurable thresholds, making it a critical component for predictive maintenance systems and machinery protection schemes in high-demand industrial environments.

Technical Specifications

Applications

The Epro MMS6210 module is widely used across several industries where shaft position monitoring is essential for the safe and efficient operation of rotating machinery:

• Turbomachinery

  Shaft displacement detection on steam and gas turbines to prevent axial thrust failures.

• Compressors

  Monitor shaft movement for mechanical wear and imbalance detection.

• Pumps

  Displacement monitoring to avoid cavitation and seal damage.

• Generators and Motors

  Used to ensure proper rotor alignment and early detection of mechanical issues.

• Petrochemical and Refining Plants

  Critical component for condition monitoring systems in ATEX-classified areas.

• Power Generation Facilities

  Enhances reliability of critical rotating assets by enabling predictive maintenance.

Advantages

• Dual Independent Channels

  Monitors two measurement points with full isolation and independent configuration.

• High Accuracy

  Provides precise measurements of shaft movement to support condition-based maintenance.

• Robust Construction

  Designed for use in industrial environments with wide temperature and humidity tolerance.

• Flexible Outputs

  Supports both analog and relay outputs for seamless integration with existing control systems.

• Integrated Alarm Logic

  Includes alert and danger level configuration with corresponding relay outputs.

• LED Status Indication

  Allows for easy on-site diagnosis of module and sensor status.

• Compact Size

  Optimized footprint for high-density rack installations.

• Interoperability

  Compatible with other MMS6000 series modules and Epro proximity probes.

Frequently Asked Questions (FAQ)

Q1: What sensors are compatible with the MMS6210?

A1: It is designed to work with Epro eddy current proximity probes (e.g., PR6423, PR6424).

Q2: How many channels does the MMS6210 support?

A2: It supports two independent monitoring channels.

Q3: What type of output does this module provide?

A3: It provides analog 4–20 mA signals and alarm relay outputs.

Q4: Can this module be used in hazardous areas?

A4: Yes, when used with appropriate certified sensors and safety barriers.

Q5: How is the module installed?

A5: It is rack-mounted as part of the MMS6000 system.

Q6: What diagnostics does the module support?

A6: It includes LED indicators for OK, Alert, Danger, and sensor fault detection.

Q7: Is the module hot-swappable?

A7: No, power should be removed before replacing or inserting the module.

Q8: What is the benefit of having two channels in one module?

A8: It saves rack space and wiring, reducing installation cost.

Q9: Can thresholds be configured individually for each channel?

A9: Yes, each channel has independent configuration for Alert and Danger levels.

Q10: What kind of maintenance does the module require?

A10: Routine inspection for wiring integrity and system status via LED indicators.
