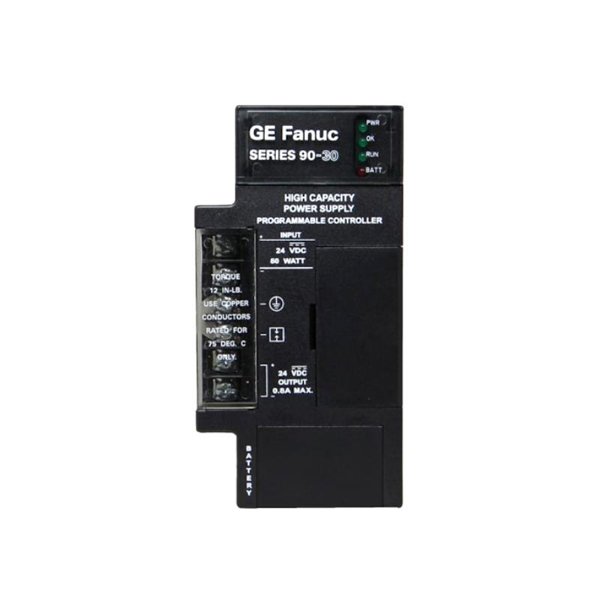

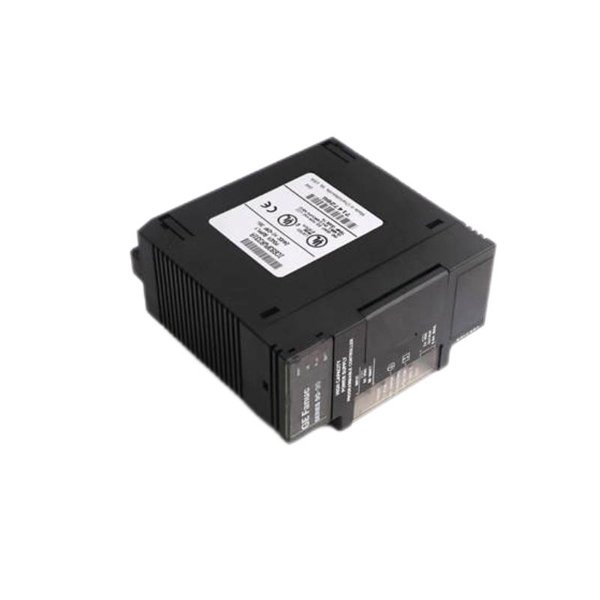

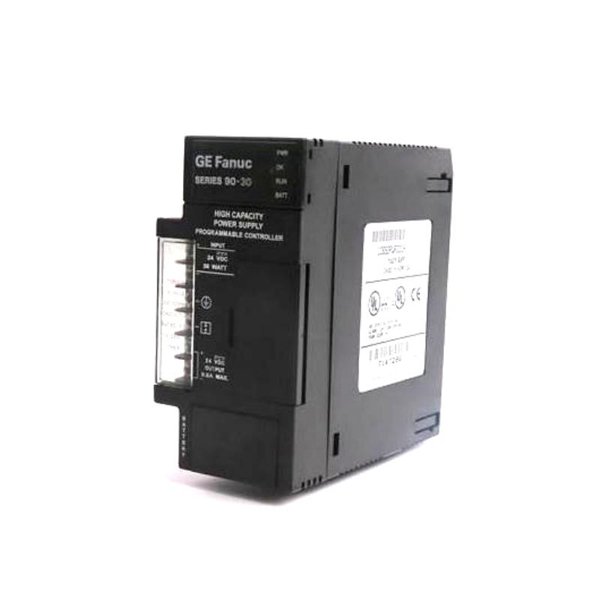

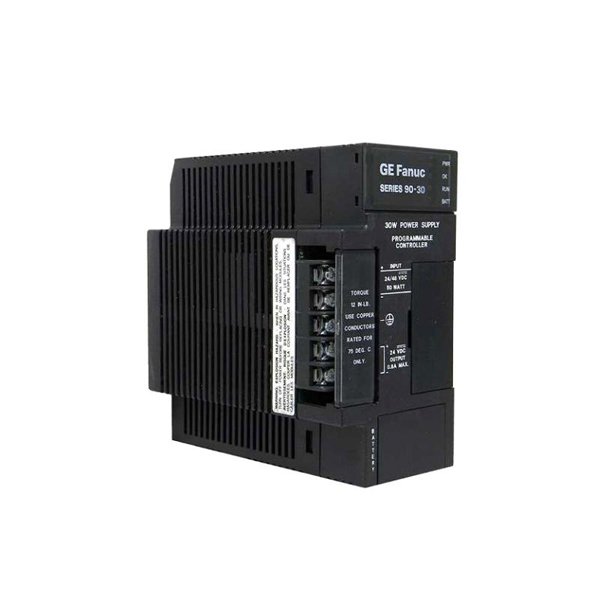

General Electric IC693PWR331 Power Supply Module

The GE IC693PWR331 is a high-capacity power supply module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This module is engineered to provide reliable and efficient power to the PLC and its associated modules, ensuring optimal performance in various industrial automation applications. Operating with a nominal input voltage of 24 VDC, the IC693PWR331 delivers consistent and stable power outputs necessary for the seamless operation of industrial control systems.​

Product Specifications

Below is a detailed table outlining the specifications of the GE IC693PWR331 Power Supply Module:

Product Applications

The GE IC693PWR331 Power Supply Module is utilized across various industrial sectors due to its robust performance and reliability. Key applications include:

1. Industrial Automation: Provides essential power to PLC systems controlling manufacturing processes, ensuring seamless and efficient operations.​

2. Process Control Systems: Supplies stable power to control systems in industries such as chemical, pharmaceutical, and food processing, where precise process management is critical.​

3. Material Handling: Powers automated conveyor systems, robotic arms, and sorting equipment, facilitating smooth material flow in warehouses and distribution centers.​

4. Energy Management: Supports power monitoring and distribution systems within industrial plants, contributing to effective energy utilization and management.​

5. Building Automation: Delivers reliable power to building management systems overseeing HVAC, lighting, and security systems, enhancing operational efficiency and comfort.​

6. Transportation Systems: Used in control systems for transportation infrastructure, including traffic management and railway signaling, ensuring safety and reliability.​

7. Water and Wastewater Treatment: Powers control systems that manage pumps, valves, and treatment processes, essential for maintaining water quality and environmental compliance.​

Product Advantages

The GE IC693PWR331 Power Supply Module offers several notable advantages:

1. High Load Capacity: Capable of delivering up to 30 W of power, accommodating the needs of multiple modules within the PLC system.​

2. Multiple Output Voltages: Provides +5 VDC and +24 VDC outputs, offering flexibility to power various modules and external devices.

3. Wide Input Voltage Range: Accepts input voltages from 18 to 30 VDC, ensuring compatibility with different power sources and enhancing application versatility.​

4. Reliable Performance: Designed to maintain output specifications even with input voltages as low as 18 VDC, ensuring consistent operation under varying conditions.​

5. Compact and Modular Design: Fits seamlessly into the GE Series 90-30 PLC system, allowing for easy integration and space-efficient installation.​

6. Enhanced Safety Features: Includes overcurrent and overvoltage protection mechanisms, safeguarding the system and connected devices from electrical faults.​

7. Compliance with Standards: Meets UL and CE certification requirements, ensuring adherence to recognized safety and quality standards.​

8. Temperature Resilience: Operates effectively within a broad temperature range, suitable for various industrial environments.​

Frequently Asked Questions (FAQ)

Here are ten frequently asked questions about the GE IC693PWR331 Power Supply Module:

1. What is the primary function of the IC693PWR331 module?

   The IC693PWR331 is a high-capacity power supply module designed to provide reliable power to the GE Fanuc Series 90-30 PLC system and its associated modules.

2. What are the input voltage specifications for the IC693PWR331?

   The module accepts a nominal input voltage of 24 VDC, with an operational range between 18 to 30 VDC.

3. What output voltages does the IC693PWR331 provide?

   It provides +5 VDC for the PLC system, a +24 VDC relay power output, and an isolated +24 VDC output for auxiliary devices.

4. What is the maximum output current for the +5 VDC supply?

   The module can deliver up to 7 A on the +5 VDC output.

5. What is the total power capacity of the IC693PWR331?

   The module has a total load capacity of 30 W, distributed across its various outputs.

6. What are the physical dimensions and weight of the IC693PWR331?

   The module conforms to the standard GE Series 90-30 module size and weighs 0.54 kg.

7. Is the IC693PWR331 compatible with all GE Fanuc Series 90-30 PLC systems?

   Yes, it is designed specifically for compatibility with the GE Fanuc Series 90-30 PLC systems.

8. Does the module include any protective features?

   Yes, the IC693PWR331 includes overcurrent and overvoltage protection mechanisms to safeguard the system and connected devices.

9. What are the operating and storage temperature ranges for the IC693PWR331?

   The operating temperature range is 0°C to 60°C, and the storage temperature range is -40°C to 85°C.

10. Where can I purchase the IC693PWR331 module?

    The module is available through various industrial automation equipment suppliers and online marketplaces.
