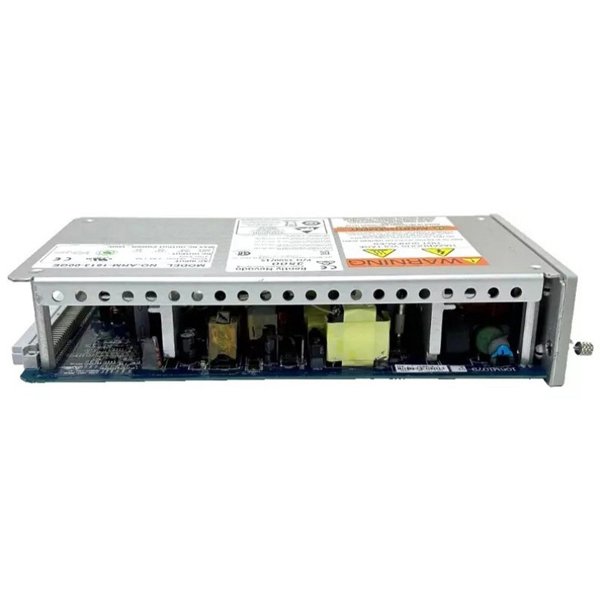

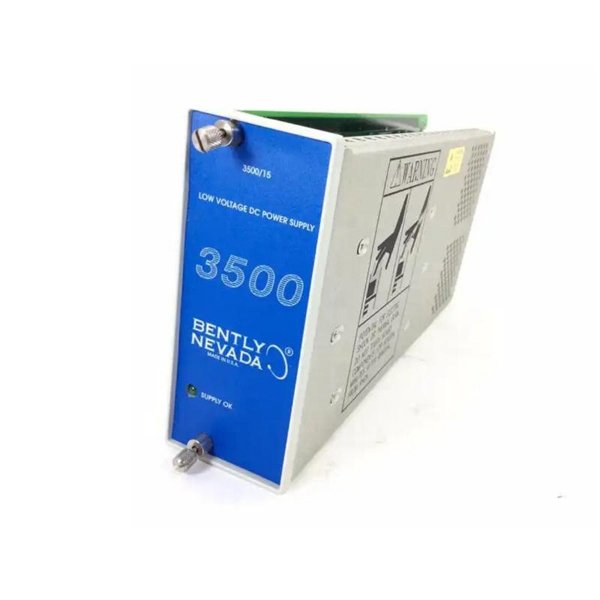

Bently Nevada 3500/15-05-00 AC/DC Power Supply Module

The Bently Nevada 3500/15-05-00 power supply module is a versatile and robust AC/DC power supply unit designed specifically for the Bently Nevada 3500 Series Machinery Protection System. This module provides both alternating current (AC) and direct current (DC) power outputs, ensuring a stable and continuous power source for various monitoring and control modules within the 3500 rack.

Engineered with industrial-grade components, the 3500/15-05-00 guarantees high reliability and efficiency in harsh operating environments. Its advanced design includes protective features such as overvoltage, overcurrent, and short-circuit protection, enhancing system safety and reducing downtime. The compact size allows seamless integration into the 3500 system, making it suitable for a wide range of industrial applications where power integrity and reliability are paramount.

Technical Specifications

Applications

The 3500/15-05-00 AC/DC power supply module is a critical component in the Bently Nevada 3500 system, used to power multiple monitoring modules for machinery protection. Typical applications include:

• Power Generation – Powering vibration, temperature, and speed monitoring modules in turbines and generators.

• Oil & Gas – Providing stable power for pumps, compressors, and rotating equipment protection.

• Petrochemical Plants – Supporting instrumentation for chemical processing machinery.

• Mining & Heavy Industry – Ensuring reliable power for machinery condition monitoring in harsh environments.

• Marine and Offshore – Supplying power to protection systems aboard vessels and offshore platforms.

• Water and Wastewater Treatment – Powering motors and pumps monitoring systems for continuous operation.

Key Advantages

• Dual Power Outputs: Supplies both AC and DC power to accommodate a wide range of modules and system requirements.

• Wide Input Voltage Range: Accepts a broad input range (85-265 VAC), enabling use worldwide without additional transformers.

• Compact and Space-Saving: Its small footprint fits neatly into 3500 series racks, saving valuable panel space.

• Robust Protection Features: Protects the system against electrical faults such as overvoltage, overcurrent, and short circuits.

• Passive Cooling: Eliminates the need for fans, reducing maintenance and improving reliability.

• High Efficiency: Ensures efficient power conversion, minimizing energy loss and heat generation.

• Industrial-Grade Design: Built to endure harsh operating conditions, including vibration and temperature extremes.

• Compliance with Industry Standards: Certified to meet international safety and environmental standards.

Frequently Asked Questions (FAQ)

1. What types of power outputs does this module provide?

   It provides both AC and DC power outputs for versatile system support.

2. What is the input voltage range for the 3500/15-05-00?

   The module accepts 85 to 265 VAC input voltage at 47 to 63 Hz.

3. What is the maximum DC output current?

   It can supply up to 2.5 A at 24 VDC.

4. Can this module be installed in any 3500 series rack?

   Yes, it is designed for seamless installation in all standard 3500 racks.

5. What protection features are included in the power supply?

   The module includes overvoltage, overcurrent, and short circuit protection.

6. Does the power supply require active cooling?

   No, it uses passive ventilation for cooling.

7. What are the physical dimensions of this power supply?

   It measures 120.7 mm (L) × 50.8 mm (W) × 251.5 mm (H).

8. How much does the module weigh?

   Approximately 1.39 kg.

9. Is the power supply RoHS compliant?

   Yes, it complies with RoHS environmental standards.

10. What operating temperatures can the module withstand?

    It operates reliably from -40°C to +70°C.
