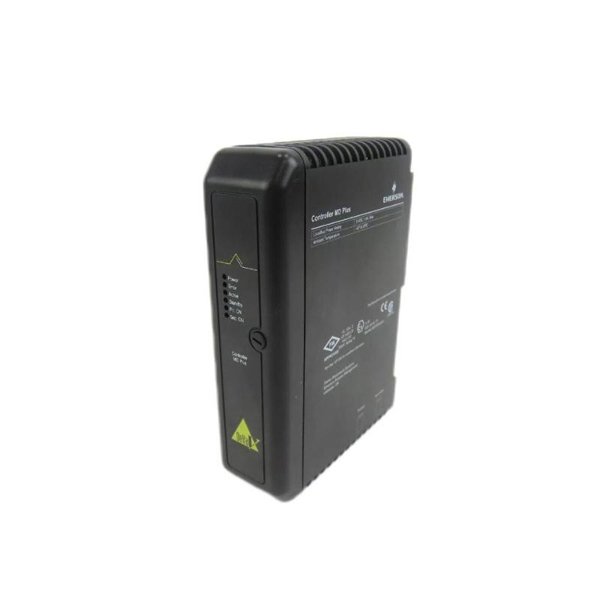

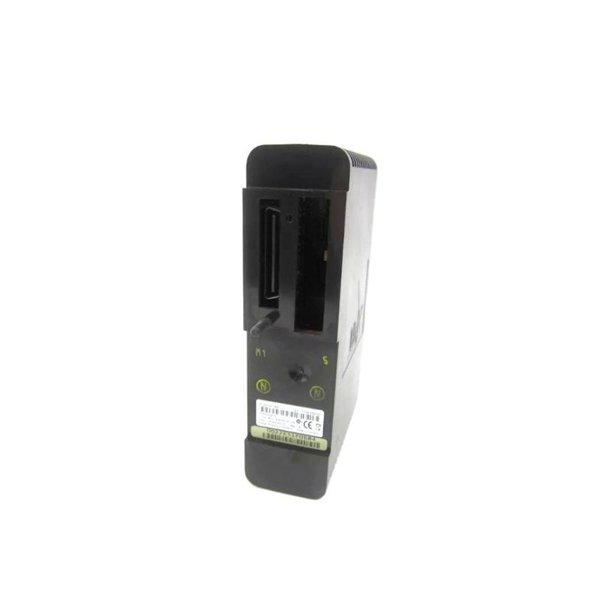

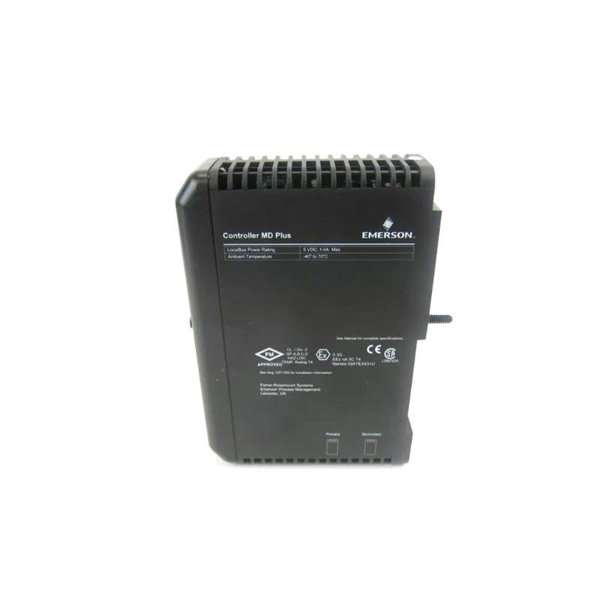

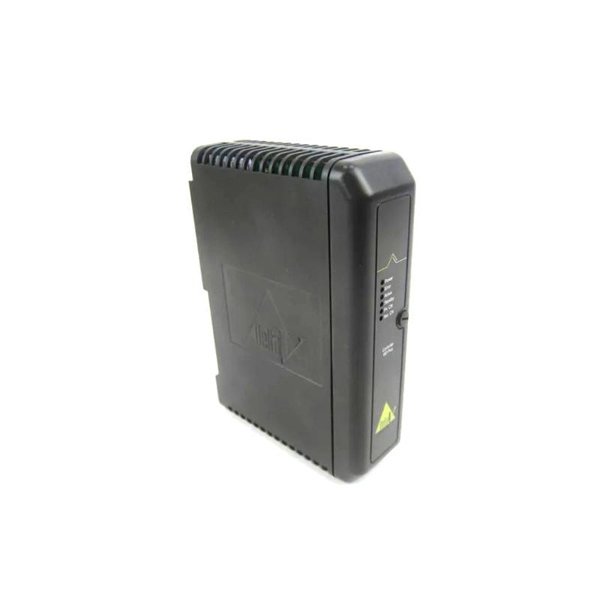

Emerson KJ2003X1-BB1 Controller Module

The Emerson KJ2003X1-BB1 Controller Module is a critical component designed for industrial automation systems. It belongs to the DeltaV series of control systems, which are renowned for their scalability, reliability, and user-friendly interface. This controller module is responsible for managing control loops, integrating data from various field devices, and ensuring smooth communication between the system components.

Emerson’s KJ2003X1-BB1 module provides precise control over processes, making it essential in a variety of industries such as oil and gas, chemical, power generation, and water treatment. It is capable of handling multiple I/O configurations, supporting a wide range of input and output devices to meet the diverse requirements of automation systems. Additionally, the KJ2003X1-BB1 is designed for ease of integration and optimal performance, ensuring that it helps achieve operational efficiency and safety in critical industrial processes.

Product Specifications

Below are the key specifications for the Emerson KJ2003X1-BB1 Controller Module:

Product Applications

The Emerson KJ2003X1-BB1 Controller Module is designed to serve a wide array of industries that require precise and dependable process control. Its key applications include:

• Oil and Gas: The module is used to control and monitor pumps, valves, and sensors in both upstream and downstream operations, ensuring safe and efficient production.

• Chemical Processing: In chemical plants, the KJ2003X1-BB1 is employed to regulate temperature, pressure, and flow in reactors, mixers, and distillation columns.

• Power Generation: It is integral in power plants for controlling turbines, boilers, and generators, ensuring steady performance and minimizing downtime.

• Water Treatment: Used for monitoring and controlling water filtration, chemical dosing, and pumping systems, the module ensures consistent quality and flow.

• Manufacturing: It plays a vital role in automation systems that control assembly lines, material handling, and product testing equipment.

This controller module can interface with numerous sensors, actuators, and control devices, making it a central piece in sophisticated industrial control systems.

Product Advantages

• High Flexibility: The KJ2003X1-BB1 module supports a broad range of digital and analog I/O configurations, making it adaptable to various industrial needs.

• Reliable Performance: With its solid build and high-quality components, this module ensures long-lasting performance even in harsh operating conditions.

• Easy Integration: The module is compatible with various communication protocols such as Modbus RTU, HART, and Fieldbus, allowing seamless integration into existing control systems.

• Space-Saving Design: Its compact size enables efficient use of panel space while still supporting a high number of I/O points, ideal for space-constrained environments.

• Wide Operating Temperature Range: The module is capable of operating in extreme conditions, with a temperature range spanning from -20°C to +60°C, ensuring reliability in diverse climates.

• Energy Efficiency: With a low power consumption of just 2.5W, the KJ2003X1-BB1 module helps minimize overall system energy use.

• Durability: The module is built to withstand industrial environments, with an IP20 rating ensuring protection from dust and debris.

• User-Friendly Setup: The DeltaV system’s intuitive software interface simplifies configuration and troubleshooting, reducing the time needed for setup and maintenance.

FAQ

1. What is the input voltage for the KJ2003X1-BB1 Controller Module?

   • The module operates with a 24V DC input voltage.

2. How many I/O channels does the KJ2003X1-BB1 support?

   • It supports 32 digital I/O channels, allowing for flexible input and output configurations.

3. What is the weight of the Emerson KJ2003X1-BB1?

   • The module weighs 1.2 kg.

4. What is the operating temperature range of the KJ2003X1-BB1?

   • The module operates within a temperature range of -20°C to +60°C.

5. Which communication protocols does the module support?

   • It supports Modbus RTU, HART, and Fieldbus communication protocols.

6. What are the environmental protection standards for the KJ2003X1-BB1?

   • The module has an IP20 environmental protection rating, providing dust and debris resistance.

7. What are the dimensions of the KJ2003X1-BB1 Controller Module?

   • The module’s dimensions are 210 × 150 × 60 mm.

8. How is the module mounted?

   • The KJ2003X1-BB1 can be mounted vertically or horizontally on a DIN rail.

9. What is the power consumption of the module?

   • The module consumes 2.5W of power during operation.

10. What industries use the Emerson KJ2003X1-BB1 Controller Module?

    • This module is commonly used in industries such as oil and gas, chemical processing, power generation, water treatment, and manufacturing.
