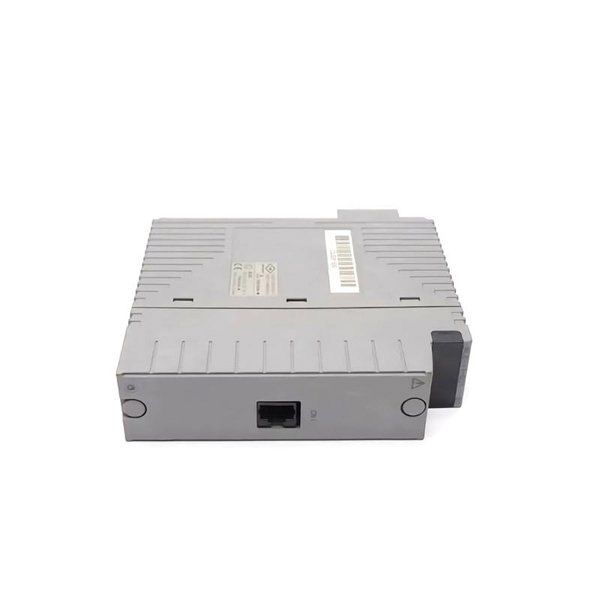

Yokogawa ALE111 Ethernet Communication Module

The Yokogawa ALE111 Ethernet Communication Module is an industrial-grade network communication interface designed to provide high-speed, reliable Ethernet connectivity within the Yokogawa CENTUM CS 3000 and CENTUM VP process automation systems. This module plays a critical role in ensuring seamless communication between field devices, operator stations, and control processors by leveraging standard Ethernet protocols.

Engineered for robust, real-time performance in mission-critical environments, the ALE111 supports both TCP/IP and UDP/IP communication, enabling it to handle complex data exchanges essential for modern distributed control systems (DCS). With its integration-ready design and compatibility with a wide range of network topologies, the ALE111 simplifies the configuration of highly scalable industrial control networks.

Technical Specifications

Applications

The ALE111 module is employed across a wide range of industries where industrial automation and data acquisition are crucial:

• Petrochemical Plants: Facilitates secure Ethernet communication between DCS nodes.

• Power Generation Facilities: Enables fast data exchange between I/O systems and control rooms.

• Pharmaceutical Manufacturing: Ensures network redundancy and real-time monitoring.

• Water & Wastewater Treatment: Connects field sensors and actuators via Ethernet.

• Food and Beverage Processing: Offers stable and scalable networking for automation systems.

• OEM and System Integration: Used in custom automation panels with Ethernet-based control.

Key Advantages

• High Network Reliability

  Supports redundant Ethernet configurations, ensuring minimal downtime and fault tolerance.

• Ease of Integration

  Compatible with Yokogawa’s engineering tools and process control systems, reducing engineering time.

• Flexible Protocol Support

  Handles TCP/IP and UDP communications, suitable for diverse industrial applications.

• Compact Design

  Slim module form factor saves space in crowded control panels or racks.

• Robust Performance

  Industrial-grade tolerance for temperature, humidity, and EMI, ensuring long-term stability.

• Future-Proof Architecture

  Easily scalable for large plant automation projects involving IoT or Industry 4.0 initiatives.

Frequently Asked Questions (FAQ)

1. What is the main function of the ALE111 module?

   The ALE111 provides Ethernet communication capability for Yokogawa control systems, allowing DCS components to exchange data via standard Ethernet protocols.

2. Can the ALE111 support redundancy?

   Yes, it supports redundant configurations to ensure continuous operation in critical applications.

3. Which Yokogawa systems is ALE111 compatible with?

   It is designed for use with CENTUM CS 3000 and CENTUM VP systems.

4. Does the module require an external power supply?

   No, the ALE111 draws power from the system rack it is mounted on.

5. What communication protocols does ALE111 support?

   It supports TCP/IP, UDP/IP, FTP, and SNTP protocols.

6. Is there a specific tool for configuring the ALE111?

   Yes, it uses Yokogawa’s proprietary engineering and configuration tools.

7. What is the data transmission speed of the module?

   The module operates at 10/100 Mbps with automatic negotiation.

8. Can this module be used in high-temperature environments?

   Yes, it operates within a temperature range of 0°C to 50°C and can be stored up to 70°C.

9. What mounting options are available for ALE111?

   It can be DIN rail or rack-mounted depending on the control system design.

10. Is the ALE111 suitable for modern smart factory applications?

    Absolutely. Its Ethernet-based design and protocol support make it fit for Industry 4.0 setups.
