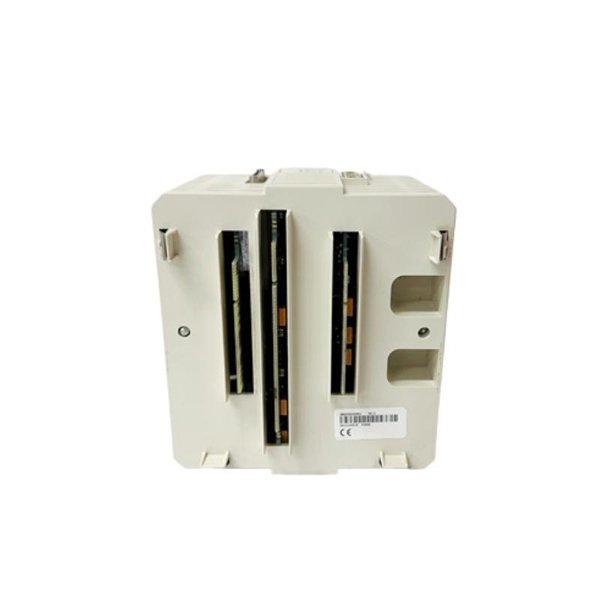

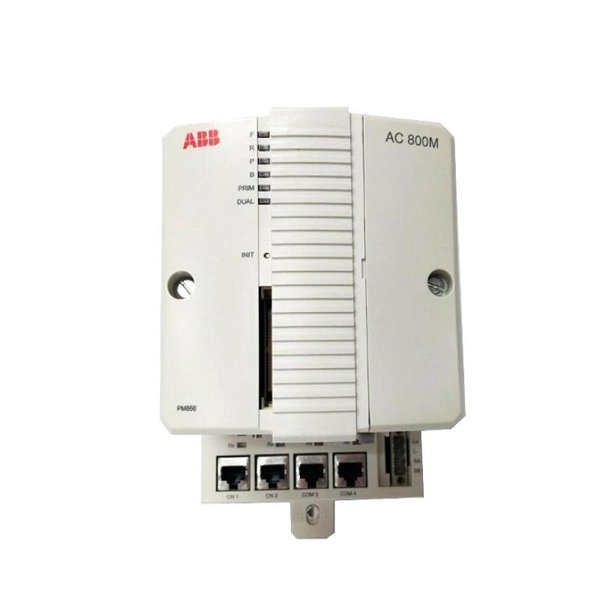

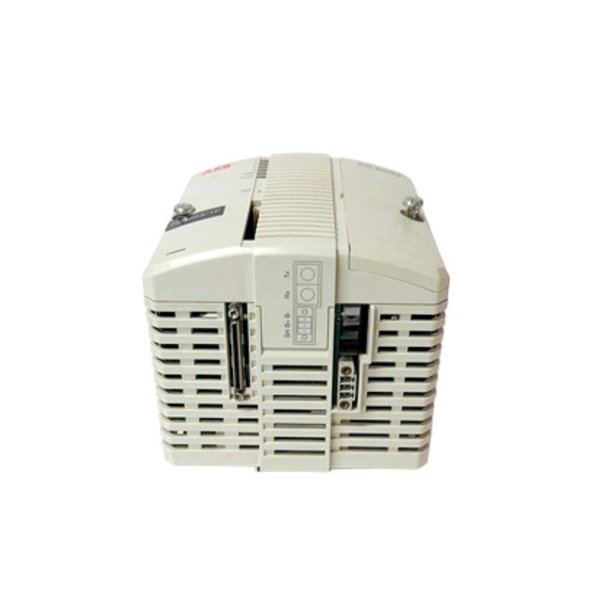

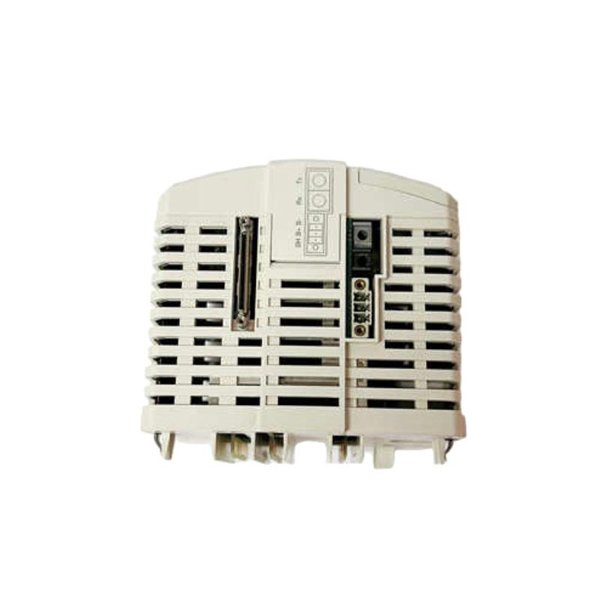

ABB PM866-2 3BSE050201R1 Processor unit

The ABB PM866-2 Processor Unit (Part Number: 3BSE050201R1) is a high-performance central processing unit (CPU) designed for the AC 800M series within the ABB 800xA distributed control system (DCS). As the core intelligence module, PM866-2 is responsible for executing control logic, managing communication with I/O modules, and coordinating system tasks across network layers in mission-critical industrial automation environments.

This processor is an upgraded version of the earlier PM866 model, offering faster execution speeds, enhanced memory, built-in redundancy support, and improved diagnostic capabilities. It plays a vital role in real-time process control, supporting a wide range of industrial applications including energy, chemical, oil & gas, pulp & paper, pharmaceuticals, and more.

The PM866-2 combines reliability, scalability, and interoperability into a compact and easily configurable platform, delivering exceptional performance and long-term stability for demanding automation needs.

Product Specifications

Product Applications

The ABB PM866-2 processor module is utilized in a wide array of automation and process industries where uninterrupted control, reliability, and modular design are paramount. Primary application areas include:

• Oil & Gas Refineries – Process unit coordination, safety logic execution, and distributed control.

• Power Generation Plants – Turbine control, boiler management, and grid synchronization.

• Chemical & Petrochemical – Reaction control, temperature/flow management, and continuous processing.

• Water & Wastewater Treatment – Monitoring pumps, dosing units, filtration, and SCADA integration.

• Pharmaceutical Manufacturing – Compliance-based control with traceability and audit trails.

• Pulp & Paper Mills – Monitoring of process variables in bleaching, drying, and paper formation stages.

• Food & Beverage Industry – Batch control, quality management, and CIP processes.

Product Advantages

• High-Speed Performance: Delivers efficient real-time processing for complex automation logic and loops.

• Flexible Communication: Supports multiple protocols and networks, ensuring seamless integration with various field devices and systems.

• Enhanced Redundancy: Supports dual-redundant CPU operation, minimizing downtime and improving system reliability.

• Scalable Design: Easily configurable with other AC 800M modules for small to large system architectures.

• Extended Memory: Large memory space enables complex application deployment and faster cycle execution.

• Industrial Durability: Engineered for demanding environments with robust operating temperature support.

• Simplified Maintenance: Diagnostic LEDs, easy firmware upgradeability, and hot-swap capabilities reduce service time.

• Secure System Integration: Built-in protection mechanisms ensure secure communication and data integrity across the network.

Frequently Asked Questions (FAQ)

1. What is the primary function of the PM866-2 module?

   It serves as the main CPU in the ABB AC 800M controller, executing control logic and managing system communications.

2. Is the PM866-2 compatible with redundant configurations?

   Yes, it fully supports redundant CPU setups for high availability applications.

3. What communication protocols does it support?

   Native support includes Ethernet/IP, MODBUS TCP, and additional fieldbus options via interface modules.

4. Can the firmware be updated?

   Yes, firmware can be upgraded using ABB Control Builder software for enhanced features and fixes.

5. Does PM866-2 support battery backup?

   Yes, it has a built-in real-time clock and battery for backup.

6. How is this processor module mounted?

   It can be mounted on a DIN rail or baseplate, depending on the control system configuration.

7. What’s the difference between PM866 and PM866-2?

   PM866-2 offers improved processing speed, extended memory, and better communication capability over PM866.

8. Is this module hot-swappable?

   While it supports modular replacement, proper system shutdown or redundant configuration is recommended.

9. What software is required for configuration?

   ABB’s Control Builder M or 800xA Engineering tools are used for programming and configuration.

10. What are the environmental operating limits?

    The module operates reliably between 0°C to +55°C and stores between -40°C to +70°C.
