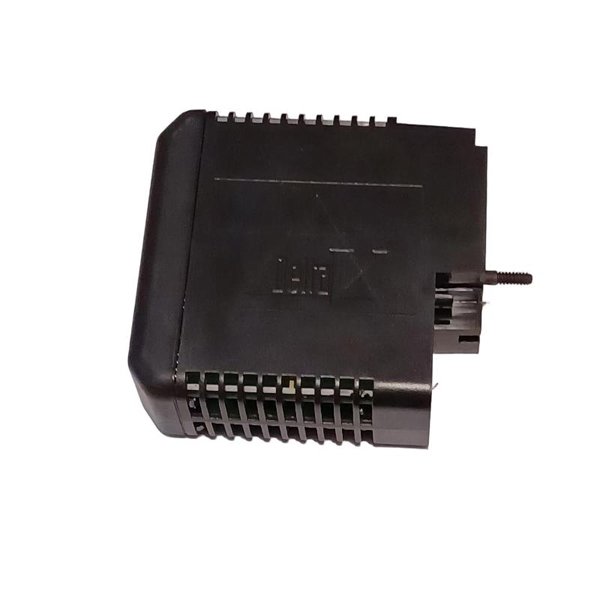

Emerson KJ3001X1-BK1 Input Module

The Emerson KJ3001X1-BK1 Input Module is a reliable and high-performance device designed for industrial automation systems, specifically compatible with Emerson’s Intelligent Logic Solver (ILS) platform. This input module functions as a vital interface that receives and processes electrical signals from various field devices such as switches, sensors, and transmitters. It translates real-world analog or digital inputs into signals intelligible to the control system.

Built to meet stringent industrial standards, the KJ3001X1-BK1 ensures precise signal acquisition, excellent noise immunity, and robust electrical isolation, which is critical for maintaining system accuracy and integrity. Its compact and modular design allows for easy installation and integration into control panels, making it suitable for a wide range of industrial environments.

Product Specifications

Product Applications

• Industrial automation input signal processing

• Monitoring and control of sensors and switches

• Process control systems requiring reliable input data

• Safety instrumented systems (SIS)

• Machine automation and factory floor control

• Power generation system monitoring

• Oil and gas process instrumentation

• Water and wastewater treatment control systems

• HVAC system input management

• Renewable energy system monitoring

Product Advantages

• Accurate Signal Acquisition: Ensures precise and reliable input signal detection for effective control.

• Robust Electrical Isolation: Protects control system from noise and faults originating at input sources.

• Compact Modular Design: Facilitates efficient space use in control cabinets.

• Seamless Integration: Compatible with Emerson Intelligent Logic Solver systems and communication protocols.

• Wide Operating Temperature Range: Suitable for diverse industrial environments.

• Easy Installation: DIN rail mounting and standardized wiring connectors simplify setup.

• High Durability: Designed for long-term reliable operation in harsh conditions.

• Safety Certifications: CE and UL approved to meet international standards.

• Low Maintenance: Minimal maintenance required, reducing operational costs.

• Improved System Uptime: Enhances overall system reliability by preventing input signal errors.

Frequently Asked Questions (FAQ)

1. How many input channels does the KJ3001X1-BK1 support?

   It supports 8 input channels, configurable for digital or analog signals depending on the version.

2. What is the nominal input voltage?

   The nominal input voltage is 24 V DC.

3. What type of inputs does the module accept?

   The module accepts digital or analog inputs depending on the specific model variant.

4. How is electrical isolation achieved?

   Optical isolation is used between input circuits and control logic to protect against noise and faults.

5. What is the operating temperature range?

   The module operates reliably between -20°C and +70°C.

6. Is the module compatible with standard DIN rails?

   Yes, it is designed for easy DIN rail mounting.

7. What certifications does the KJ3001X1-BK1 hold?

   It is CE certified and UL recognized for safety and quality.

8. Can the module be used in safety instrumented systems?

   Yes, it is suitable for SIS applications where reliable input signal processing is critical.

9. What is the response time for input signals?

   The response time is typically less than 10 milliseconds.

10. What maintenance is required for this input module?

    Routine checks for wiring integrity and cleaning of connection points are recommended.
