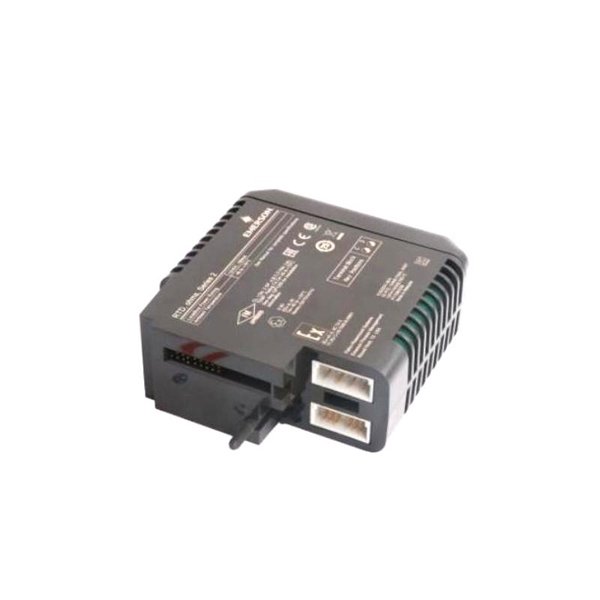

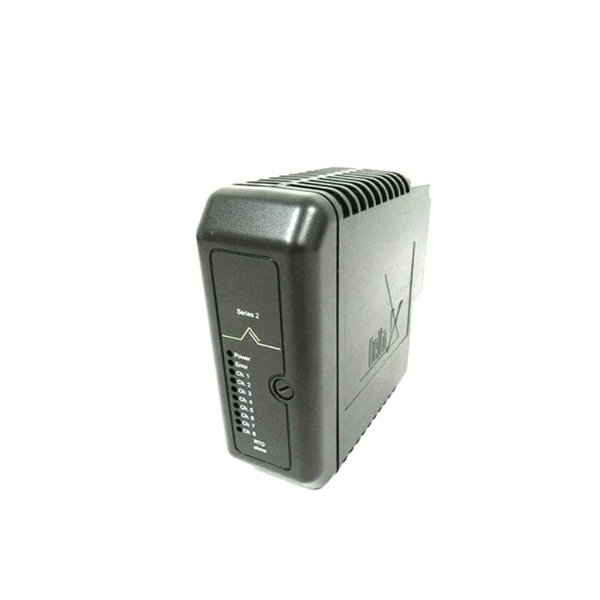

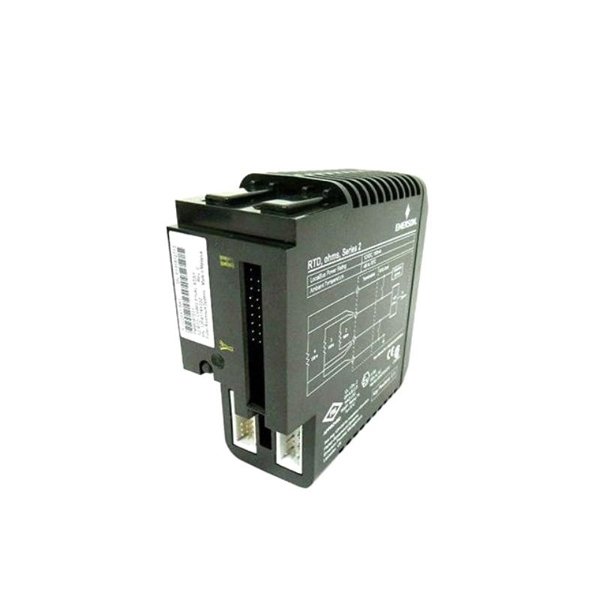

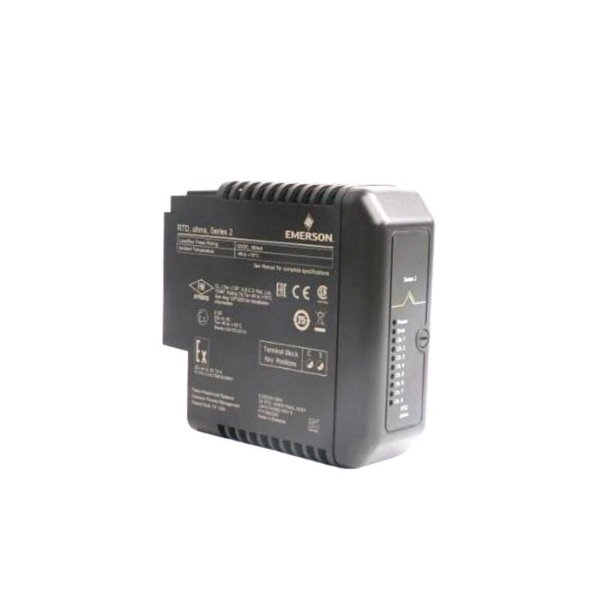

Emerson KJ3225X1-BA1 12P4174X042 RTD/ Resistance Input Card

The Emerson KJ3225X1-BA1 12P4174X042 is a robust and highly reliable RTD/Resistance Input Card designed for precision temperature measurement and resistance monitoring applications. It is part of Emerson’s comprehensive series of control system components, specifically engineered to integrate seamlessly with their distributed control systems (DCS). This input card is tailored to support a broad range of industrial applications where accurate, real-time temperature data is essential. It plays a crucial role in providing precise temperature measurements, ensuring efficient operation, and maintaining system stability.

Product Specifications

Product Applications

The Emerson KJ3225X1-BA1 RTD/Resistance Input Card is widely used in industries such as:

1. Oil & Gas – For monitoring temperature sensors in oil rigs, pipelines, and refineries.

2. Chemical Plants – Ensuring accurate measurement of temperature in reactors and processing equipment.

3. Power Generation – For turbine temperature measurement and monitoring cooling systems.

4. Pharmaceuticals – In sterile processing where accurate temperature control is vital.

5. Food and Beverage – To maintain precise temperature controls in production lines and storage areas.

6. Automotive – For use in manufacturing and test environments that require precise temperature control.

Product Advantages

1. High Precision: The KJ3225X1-BA1 card offers excellent accuracy with a range of up to ±0.1°C, ensuring that your system operates within precise temperature parameters.

2. Wide Temperature Range: This card operates efficiently across a broad temperature range of -200°C to 850°C, making it suitable for a diverse range of industrial environments.

3. Fast Response Time: With a response time of just 100 ms, it enables real-time temperature measurements that are crucial for timely decision-making.

4. Easy Integration: Its compatibility with Emerson’s distributed control systems (DCS) ensures smooth integration into existing control architectures.

5. Durability: Built to withstand demanding industrial conditions, this card is durable and reliable in continuous operations.

6. Space-Saving Design: With compact dimensions (107 x 41 x 105 mm) and lightweight (0.2 kg), it is easy to install and saves valuable panel space.

FAQ

1. What is the temperature range of the Emerson KJ3225X1-BA1 RTD input card?

   • The card supports a temperature range from -200°C to 850°C.

2. How many input channels does the KJ3225X1-BA1 card have?

   • The card has 4 input channels.

3. What is the accuracy of the KJ3225X1-BA1 input card?

   • The card provides an accuracy of ±0.1°C.

4. Can the KJ3225X1-BA1 card be integrated with existing Emerson DCS systems?

   • Yes, the card is fully compatible with Emerson DCS systems.

5. What is the power supply requirement for this card?

   • The card requires a 24V DC power supply.

6. How fast is the response time of the KJ3225X1-BA1?

   • The card has a response time of 100 ms.

7. What is the weight of the KJ3225X1-BA1 input card?

   • The card weighs 0.35 kg.

8. What is the primary use case for the KJ3225X1-BA1?

   • It is primarily used for precise temperature measurement and resistance monitoring in industrial applications.

9. Does the card support both RTD and resistance inputs?

   • Yes, the card supports both RTD and resistance inputs.

10. Is the KJ3225X1-BA1 suitable for high-temperature applications?

    • Yes, it is suitable for high-temperature applications with a maximum range of 850°C.
