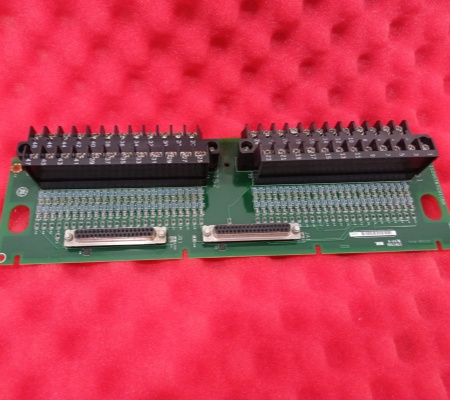

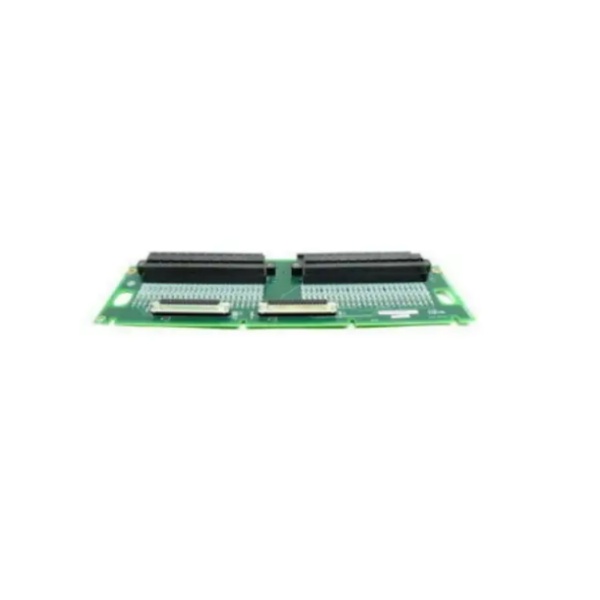

General Electric IS200TBTCH1CBB Thermocouple Terminal Board

The Thermocouple Processor Board VTCC accepts 24 E, J, K, S or T thermocouple inputs. These inputs are wired to two barrier type modules on the Termination Board TBTC. Cables with molded plugs connect the Termination Board to the VME rack where the VTCC Thermocouple Board resides. The TBTC can provide simplex or triplex module redundant control. This one, like any other PCB in the EX2100 Excitation Control System family, has a designated intended application range that does a good job of contextualizing its hardware selection. The product shown provides 24 unique thermocouple outputs to the larger VTCC Thermocouple Processor Board assembly. Other performance specifications of the Thermocouple Processor Board include its high frequency noise rejection and cold junction reference handling applications.

Frequently asked questions about the product are as follows:

-What is the main function of the IS200TBTCH1CBB?

It is used to receive and process temperature signals from thermocouples and convert them into data that can be used by the control system.

-How to install the IS200TBTCH1CBB?

During installation, make sure the power is off, insert the board into the designated slot and fix it, connect the thermocouple signal wire, and finally check whether the wiring is correct.

-How to ensure the long-term reliability of the IS200TBTCH1CBB?

Perform regular maintenance. Avoid overloading or overheating. Use high-quality thermocouples and cables.
