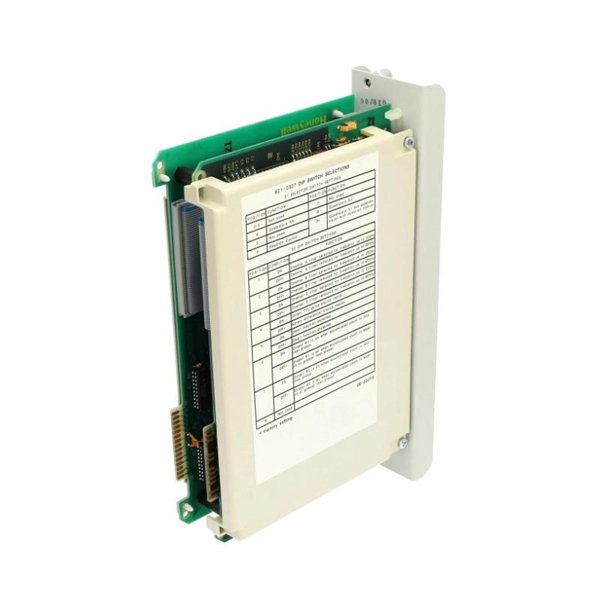

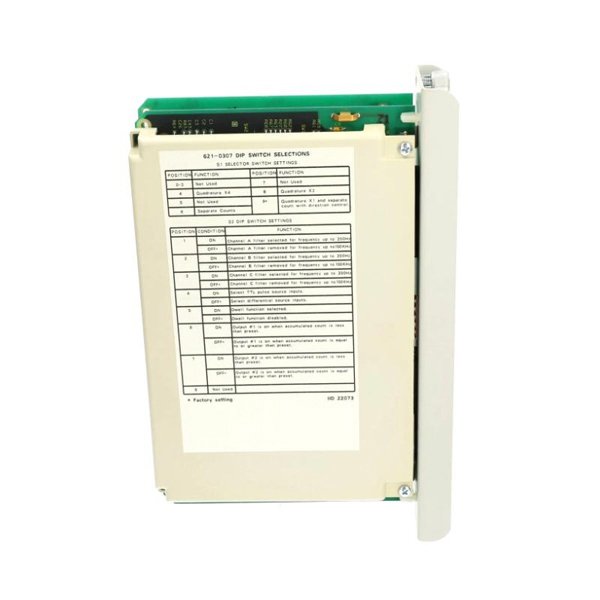

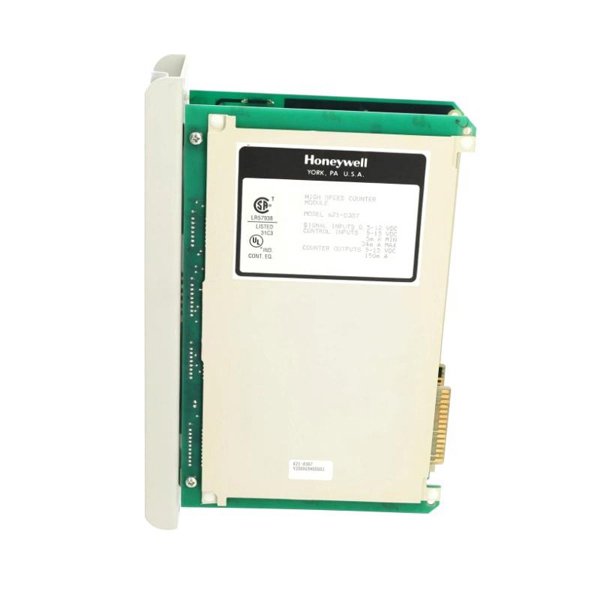

Honeywell 621-0307 High Speed Counter Module

The Honeywell 621-0307 High-Speed Counter Module is a specialized input module designed to perform high-speed counting functions in real-time, making it ideal for industrial environments requiring precise pulse signal tracking. It is part of Honeywell’s trusted TDC 2000 and TDC 3000 Distributed Control Systems (DCS) and provides fast and reliable pulse processing for critical applications like flow measurement, motion control, and event counting.

This module interfaces directly with encoders, turbine flow meters, proximity sensors, and other pulse-generating devices. Its rapid response capability and dedicated counter logic allow it to accurately measure frequency, pulse width, and event counts independently of the main controller scan cycle. With isolated inputs and onboard diagnostics, the 621-0307 ensures accurate and interference-free signal processing, even in electrically noisy environments.

The 621-0307 is an essential tool for engineers managing high-speed operations where precise counting and timing are critical for production efficiency and control system responsiveness.

Technical Specifications

Applications

The 621-0307 is engineered for industries where real-time high-speed signal capture and precise counting are essential. Typical application scenarios include:

• Turbine Flow Metering

  Converts pulse signals from flow meters into accurate volumetric data.

• Packaging Machinery

  Counts parts or packages passing a sensor at high speed for automated tracking.

• Conveyor Systems

  Detects and tallies product units, enabling inventory monitoring and flow control.

• Motor Speed and Shaft Rotation Monitoring

  Captures encoder signals to compute RPM, direction, and acceleration.

• Material Handling

  Controls batch quantity based on item count using optical or proximity sensors.

• Industrial Weighing and Filling Systems

  Activates process steps based on pulse counts from rotary encoders.

Key Advantages

• Real-Time High-Speed Performance

  Handles pulse rates up to 25 kHz, ensuring accurate capture of fast events.

• Flexible Counting Modes

  Supports multiple counter modes including frequency, up/down, and quadrature.

• 32-bit Counter Capacity

  Allows high-range event counting without risk of overflow during long operations.

• Input Isolation

  Provides signal integrity by eliminating ground loops and electrical noise.

• System Integration

  Natively supported in TDC 2000, TDC 3000, and PlantScape control architectures.

• Onboard Diagnostics

  Monitors loss of signal, overflow, and reports faults to operators.

• Compact Industrial Form Factor

  Easy to install in control cabinets, DIN-rail or backplane-compatible.

• Reduces Processor Load

  Offloads high-speed counting from the main controller for optimized performance.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 621-0307 module?

   It performs high-speed counting, pulse width, and frequency measurement for discrete pulse inputs.

2. What types of sensors can be used with this module?

   The module accepts pulse inputs from encoders, proximity sensors, turbine meters, and NAMUR-type devices.

3. How many counting channels are available?

   It provides 4 independent high-speed input channels.

4. Can this module detect pulse direction?

   Yes, it supports quadrature input mode to detect direction and speed of rotation.

5. What is the maximum pulse rate it can handle?

   Typically up to 25 kHz, depending on input type and signal quality.

6. Is the input signal electrically isolated?

   Yes, each input is isolated to reduce electrical noise and protect the system.

7. How does this module communicate with the control system?

   It uses Honeywell’s Universal Control Network (UCN) to interface with controllers and I/O processors.

8. Does the module support diagnostics?

   Yes, including error detection, signal loss alerts, and overflow monitoring.

9. Is it suitable for motion control systems?

   Absolutely. It is ideal for tracking encoder signals in high-speed motion applications.

10. Can it be mounted directly in a field panel?

    Yes, it is DIN rail and backplane mountable for flexible installation in control cabinets.
