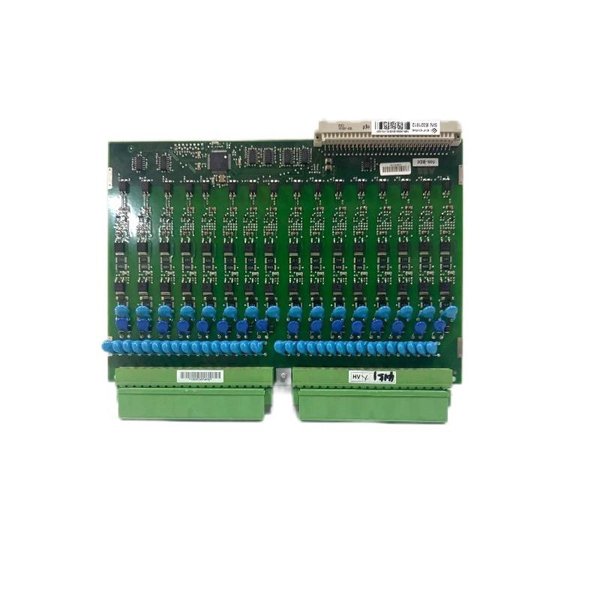

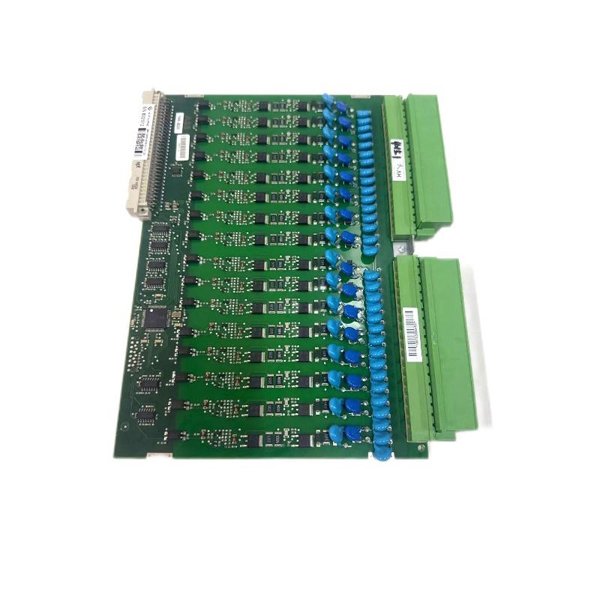

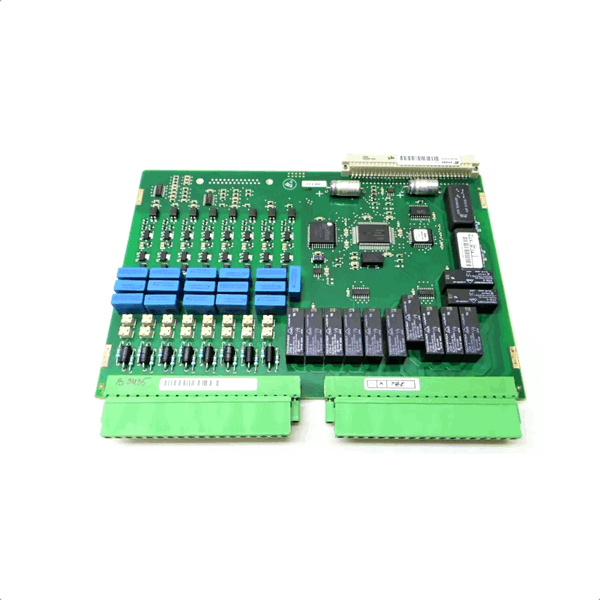

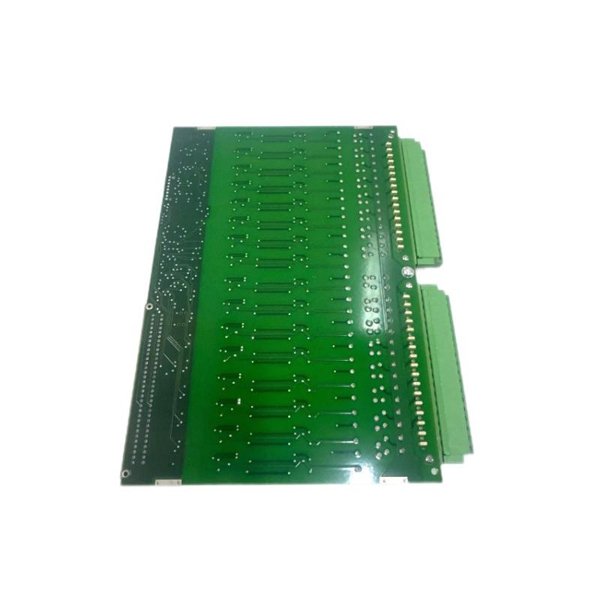

ABB 1MRK000508-BDr06 Binary Input/Output Module

The ABB 1MRK000508-BDr06 is a robust binary input/output (I/O) module designed for seamless integration into industrial automation systems. This module provides essential I/O capabilities for digital signal processing, allowing efficient management of both input and output signals in control systems. Its advanced design is optimized for environments where reliable signal management and high durability are critical.

The ABB 1MRK000508-BDr06 module is used to interface with a wide variety of digital devices such as switches, sensors, actuators, and relays. It supports a high number of input and output channels, making it suitable for medium to large-scale automation projects. The module offers excellent communication capabilities through protocols like Modbus and Profibus, ensuring smooth integration with existing automation systems.

Its compact design, combined with its rugged performance, makes it ideal for industrial applications that require long-lasting, reliable I/O processing. Whether in process control, factory automation, energy management, or safety systems, this module ensures smooth operation and dependable performance under challenging conditions.

Product Specifications

Product Applications

The ABB 1MRK000508-BDr06 module is designed for use in a wide range of industrial automation applications, including:

• Factory Automation: Used for controlling and monitoring machines, assembly lines, and robotic systems in manufacturing plants.

• Process Control: Widely applied in industries such as chemical, pharmaceutical, food and beverage, and water treatment plants where discrete signals are needed to operate pumps, valves, mixers, and other equipment.

• Energy Management: Perfect for energy distribution and consumption monitoring systems in industrial settings, ensuring efficient energy use and system management.

• Building Automation: Can be used in managing HVAC systems, lighting controls, security systems, and other building infrastructure for both commercial and industrial buildings.

• Safety Systems: Interfaces with emergency shutdown switches, safety relays, and other critical devices to ensure system safety in case of malfunction or emergency.

• Automated Testing: Used in test benches to monitor and control input and output signals for automated testing of electrical components and systems.

Product Advantages

• High Channel Density: With 16 input and 16 output channels, this module can manage multiple digital signals, making it an ideal choice for complex automation systems.

• Compact and Lightweight: Measuring just 20 x 198 x 262 mm and weighing 0.4 kg, the module’s compact design fits easily into standard control panels, making it suitable for environments where space is limited.

• Wide Operating Temperature Range: The module can operate in environments with temperatures from -25°C to +70°C, providing reliable performance in both low and high-temperature conditions.

• Durable and Reliable: Built to withstand the rigors of industrial environments, the ABB 1MRK000508-BDr06 is designed for long-lasting operation with minimal maintenance requirements.

• Flexible Communication: The module supports popular communication protocols like Modbus and Profibus, making it easily compatible with various industrial control systems and allowing for seamless data transfer.

• DIN Rail Mounting: Designed for DIN rail mounting, the module is easy to install and integrate into existing systems, offering flexible configuration options for different setups.

• Energy-Efficient: Operating with a 24 V DC power supply, the module is designed to be energy-efficient, making it suitable for applications where low power consumption is a priority.

FAQ

1. Q: What is the power supply requirement for the ABB 1MRK000508-BDr06?

   A: The ABB 1MRK000508-BDr06 operates on a 24 V DC power supply.

2. Q: How many input and output channels does the module support?

   A: The module supports 16 input channels and 16 output channels.

3. Q: What communication protocols are supported by this module?

   A: The module supports Modbus and Profibus communication protocols.

4. Q: What is the operating temperature range for the 1MRK000508-BDr06?

   A: The module operates in a temperature range of -25°C to +70°C.

5. Q: What is the weight of the ABB 1MRK000508-BDr06 module?

   A: The weight of the module is 0.4 kg.

6. Q: How is the ABB 1MRK000508-BDr06 module mounted?

   A: The module is designed for DIN rail mounting, which simplifies installation in control panels.

7. Q: Can the ABB 1MRK000508-BDr06 module be used in industrial automation applications?

   A: Yes, the module is ideal for factory automation, process control, and other industrial applications that require digital signal management.

8. Q: Can the 1MRK000508-BDr06 module operate in extreme temperatures?

   A: Yes, it can operate in environments with temperatures ranging from -25°C to +70°C.

9. Q: Is the ABB 1MRK000508-BDr06 module suitable for safety applications?

   A: Yes, the module can be used to interface with safety systems such as emergency stop switches and safety relays.

10. Q: What is the mounting type for the ABB 1MRK000508-BDr06 module?

    A: The module uses DIN rail mounting for easy and secure installation in control panels.
