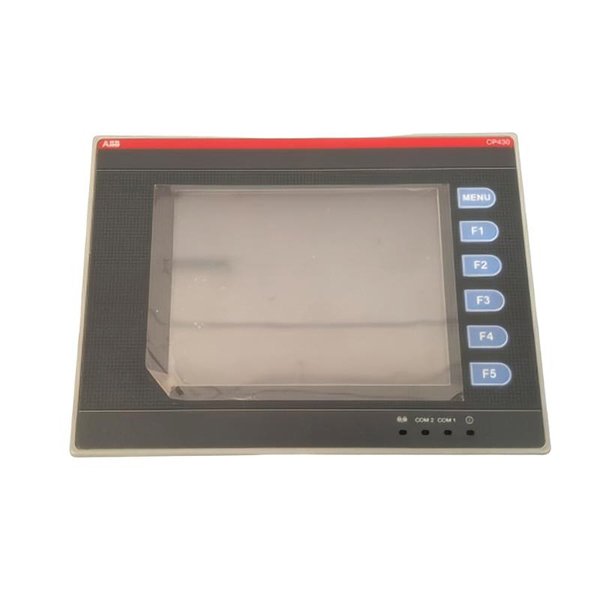

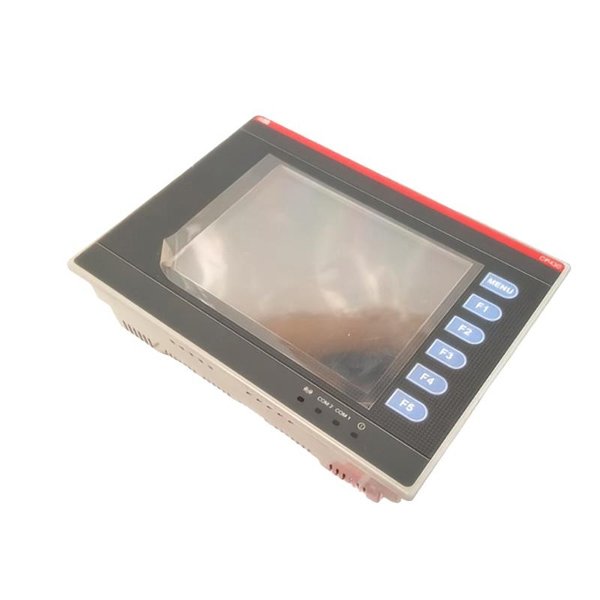

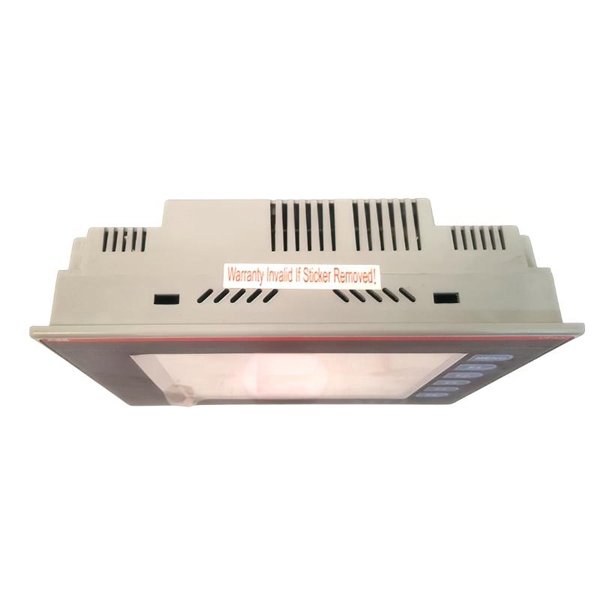

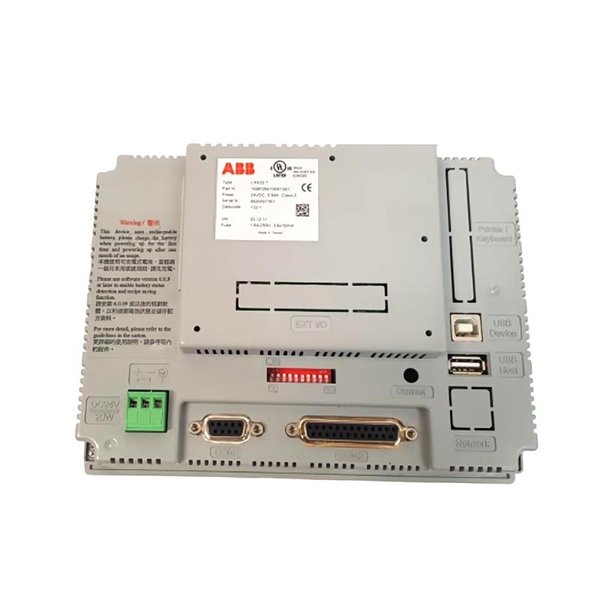

ABB CP430 T 1SBP260195R1001 Control Panel

The ABB CP430 T (1SBP260195R1001) is a high-performance HMI (Human-Machine Interface) touch panel, designed for demanding industrial automation applications. Engineered with a sleek and robust build, this control panel provides intuitive operation and real-time data visualization for process control systems. It belongs to ABB’s CP400 series, well-known for its versatility, reliability, and ease of integration with PLCs and other field devices.

This model comes with a 5.7-inch TFT color touchscreen, offering sharp visuals and responsive interaction. With support for multiple communication protocols, including Modbus and OPC, the CP430 T enables seamless integration across complex automation systems.

Product Specifications

Applications

The ABB CP430 T control panel is well-suited for a variety of industrial automation scenarios, such as:

• Manufacturing plants for machinery control

• Food and beverage processing lines

• HVAC systems for commercial buildings

• Water treatment facilities

• Packaging and logistics automation

• Renewable energy systems (solar and wind control stations)

• Building management systems (BMS)

Thanks to its flexible integration and user-friendly interface, it serves both OEMs and end-users seeking compact, yet powerful control solutions.

Product Advantages

• Compact Design: The 5.7-inch screen offers space-saving installation while providing clear, easy-to-navigate interfaces.

• Versatile Connectivity: Built-in Ethernet, serial ports, and USB allow for diverse protocol communications.

• High Protection Grade: With IP66-rated front panel, it withstands dust, water jets, and harsh environments.

• Easy Integration: Compatible with ABB PLCs and third-party systems via standard communication protocols.

• Fast Configuration: Supported by ABB’s Panel Builder 600 software for intuitive HMI project development.

• Reliable Operation: Solid-state design with no moving parts ensures long lifecycle and minimal maintenance.

• Energy Efficient: Low power consumption makes it suitable for continuous operation.

• Multi-language Support: Useful in international environments or globally distributed machinery.

• Cost-effective: Offers excellent value for small to mid-range automation tasks.

Frequently Asked Questions (FAQ)

1. Q: What software is used to program the CP430 T panel?

   A: The CP430 T is programmed using ABB Panel Builder 600, which offers drag-and-drop interface design and protocol configuration.

2. Q: Does the CP430 T support real-time trend graphing and historical data storage?

   A: It supports real-time trending, alarms, and event logging. However, historical data storage is limited to the internal memory and connected USB devices. For long-term storage, data should be exported to external systems.

3. Q: Is remote access possible for the CP430 T?

   A: Remote monitoring can be achieved when connected to an industrial network, though native remote desktop access may require additional setup.

4. Q: Can I use USB devices with the CP430 T?

   A: Yes, it has a USB Host port for data backup, logging, or external device communication.

5. Q: What is the screen resolution quality like?

   A: The panel features a 320 x 240 pixel TFT screen offering vivid colors and clear readability.

6. Q: What is the typical lifespan of this control panel?

   A: With no moving parts and industrial-grade components, it can last over 50,000 hours under normal operation.

7. Q: Is the panel firmware upgradable?

   A: Yes, firmware upgrades are supported via USB or Ethernet to ensure feature enhancements or bug fixes.

8. Q: Can this panel be used in outdoor installations?

   A: It can be used in protected outdoor enclosures; however, direct exposure to weather is not recommended.

9. Q: Does the CP430 T support alarms and event logging?

   A: Yes, it supports real-time alarms, event logs, and data trends.

10. Q: What kind of maintenance does the device require?

    A: Very minimal—mainly limited to cleaning the screen and ensuring secure wiring connections.
