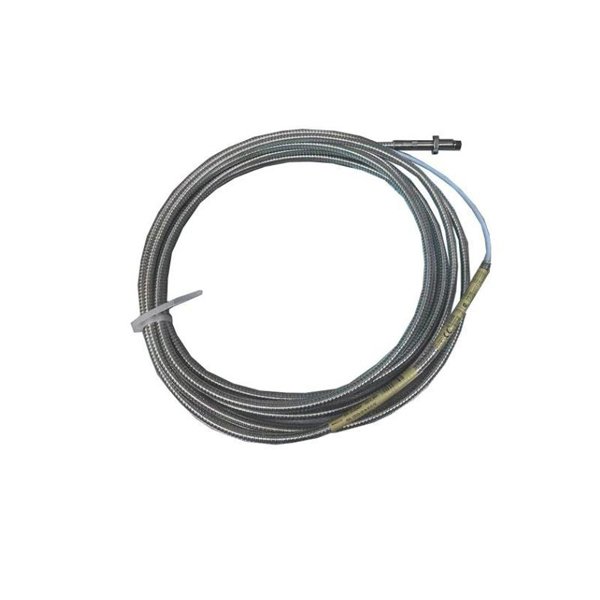

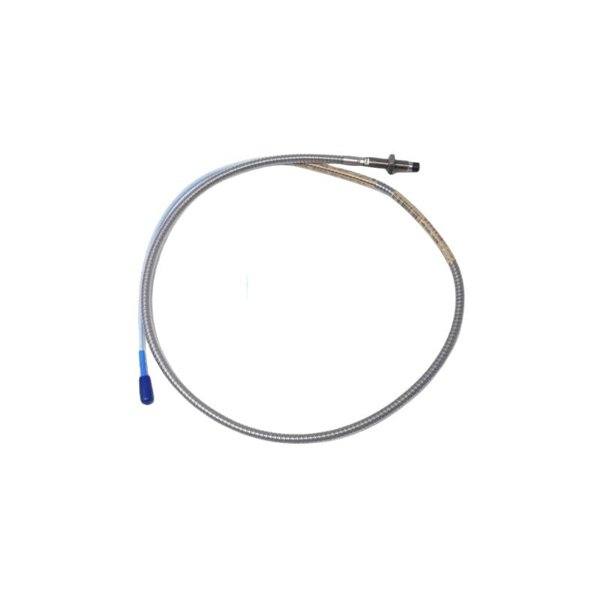

Bently Nevada 330104-01-02-50-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-01-02-50-02-05 is a 3300 XL 8 mm proximity probe, designed for accurate and reliable measurement of displacement in rotating machinery. It is part of Bently Nevada’s 3300 XL series, which is widely recognized for its high-precision sensing capabilities. The proximity probe is used for monitoring shaft displacement, vibration, and other dynamic measurements in industrial machinery.

This particular 3300 XL proximity probe features an 8 mm diameter, offering enhanced sensitivity and improved reliability for critical machinery monitoring. It is used to detect axial and radial displacements with exceptional accuracy, making it suitable for a wide range of industrial applications. With Bently Nevada’s advanced sensing technology, the 3300 XL probe ensures accurate readings even in challenging environments, where precise monitoring is essential for operational safety and efficiency.

Technical Parameters

Product Applications

The Bently Nevada 330104-01-02-50-02-05 3300 XL 8 mm proximity probe is a vital component for machinery protection and condition monitoring in various industrial applications. Some key applications include:

1. Turbines and Compressors: Used in steam, gas, and hydraulic turbines, as well as centrifugal compressors, to monitor shaft displacement and ensure correct alignment.

2. Pumps and Motors: Ideal for monitoring the health of pumps and electric motors by detecting displacement or vibration anomalies, ensuring optimized performance and longevity.

3. Generators: In power generation facilities, this proximity probe is used for monitoring rotating parts like generator shafts to ensure safe and efficient operation.

4. Industrial Fans and Blowers: Helps monitor the positioning of shafts in large fans and blowers to prevent misalignment, reducing mechanical wear and tear.

5. Process Industries: For applications such as oil & gas, petrochemical, and chemical plants, where precise machinery monitoring is crucial to avoid costly breakdowns.

6. Rotating Equipment: Used in various rotating equipment to ensure consistent operation by detecting early signs of wear, imbalance, or misalignment.

Advantages

1. High Accuracy: The 3300 XL probe offers an exceptional accuracy of ±0.5 μm, providing highly precise displacement measurements critical for machinery condition monitoring.

2. Long Cable Length: With a 5.0-meter cable, the probe can easily reach distant machinery or inaccessible installation points, making it versatile for a variety of setups.

3. Durability in Harsh Environments: The probe is built to withstand extreme environments with an IP68 rating, ensuring reliable operation even in dusty or wet conditions.

4. Wide Temperature Range: With an operating temperature range of -40°C to 121°C, the probe can function effectively across a broad range of industrial environments.

5. Stainless Steel Construction: Constructed with stainless steel, the probe offers excellent durability, corrosion resistance, and longevity, even in challenging industrial environments.

6. Low Power Consumption: The probe requires only 24 V DC power, making it energy-efficient and compatible with most industrial monitoring systems.

7. Easy Integration: The 3300 XL 8 mm proximity probe is easy to integrate into existing machinery condition monitoring systems, ensuring smooth setup and operation.

8. Highly Reliable Cable Construction: The armored stainless steel cable ensures the probe is resistant to physical damage, offering added protection during operation.

Frequently Asked Questions (FAQ)

1. What is the diameter of the Bently Nevada 3300 XL 8 mm proximity probe?

   • The probe diameter is 8 mm.

2. What is the total length of the proximity probe?

   • The total length of the probe is 5.0 meters.

3. What is the operating temperature range for this proximity probe?

   • The probe can operate in temperatures ranging from -40°C to 121°C.

4. What material is the Bently Nevada 3300 XL 8 mm probe made of?

   • The probe is made from stainless steel, ensuring durability and resistance to corrosion.

5. What is the power requirement for this proximity probe?

   • The probe requires a 24 V DC power supply.

6. How accurate is the Bently Nevada 3300 XL 8 mm proximity probe?

   • The accuracy of the probe is ±0.5 μm, providing highly precise measurements.

7. What is the frequency range of the 3300 XL proximity probe?

   • The probe operates in the frequency range of 0-200 kHz.

8. Is the probe suitable for harsh environments?

   • Yes, it has an IP68 environmental protection rating, making it dustproof and waterproof.

9. Can this proximity probe be used for turbine monitoring?

   • Yes, the probe is commonly used for turbine shaft monitoring in power generation plants.

10. What applications is this proximity probe suitable for?

• This probe is suitable for a wide range of industrial applications, including turbines, compressors, motors, pumps, fans, and rotating equipment.
