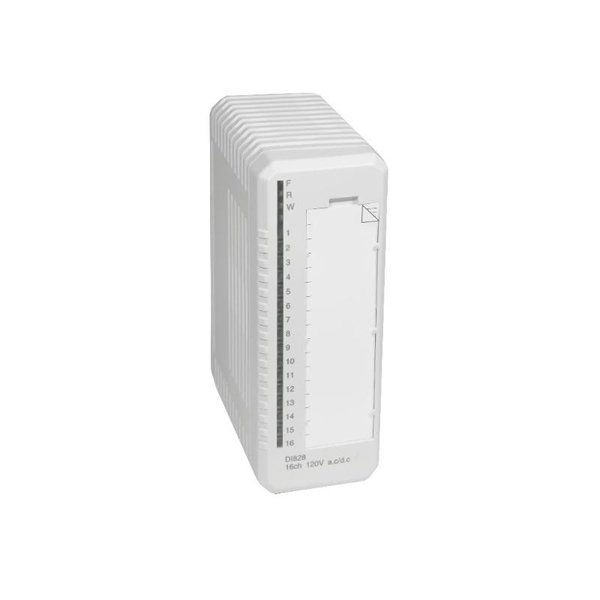

ABB DI828 3BSE069054R1 Digital Input Module

The ABB DI828 (3BSE069054R1) is a high-performance digital input module designed for use in ABB’s automation and control systems, particularly within the AC500 PLC family. It serves as a critical interface between field devices and the PLC, allowing the system to monitor the status of multiple digital inputs with precision and reliability.

This module provides robust input signal processing, supporting a wide range of industrial applications where reliable digital data acquisition is essential. With a compact design, rugged construction, and seamless integration into ABB automation architectures, the DI828 ensures efficient, scalable control solutions for industrial environments.

Product Specifications

Applications

The DI828 module is widely used in many industrial automation contexts, including but not limited to:

• Factory Automation: Monitoring the status of sensors, switches, and safety devices.

• Process Control: Collecting digital status signals from valves, pumps, and other actuators.

• Energy Management Systems: Tracking operational statuses of circuit breakers, relays, and meters.

• Building Automation: Integrating signals from lighting controls, HVAC systems, and security devices.

• Infrastructure Projects: Railway signaling, traffic control systems, and water treatment plants.

• Machine Building: As part of control panels for automated machinery requiring reliable input reading.

Advantages

• Reliable Performance: Designed with industrial-grade components ensuring stable operation even in harsh conditions.

• High Input Density: Allows for 16 digital signals to be read simultaneously, saving space and reducing wiring complexity.

• Compact and Lightweight: The module’s small size and low weight facilitate easy installation in control cabinets.

• Easy Integration: Seamlessly fits into ABB’s AC500 PLC platform, enabling fast configuration and programming.

• Robust Isolation: Provides galvanic isolation to protect the control system from electrical noise and faults.

• Wide Operating Range: Can operate reliably across a broad temperature and humidity range.

• Flexible Mounting Options: Supports both DIN rail and backplane mounting, adaptable to various setups.

• Compliance and Safety: Meets international standards for safety and electromagnetic compatibility.

Frequently Asked Questions (FAQ)

1. What kind of signals does the DI828 module accept?

   It accepts standard 24 V DC digital signals, usually from switches or sensors that indicate on/off states.

2. Can I use this module in very cold or hot environments?

   Yes, it operates reliably from -25°C up to +60°C, suitable for most industrial settings.

3. How many inputs does this module support at once?

   It can monitor 16 individual digital inputs simultaneously.

4. Is this module easy to install on a standard DIN rail?

   Absolutely, it’s designed for quick mounting on standard DIN rails or a backplane.

5. Does it require any special wiring or connectors?

   It uses standard industrial connectors; wiring is straightforward following the module’s manual.

6. How does the module indicate input status?

   Usually, the connected PLC or system will read the input signals; the module itself doesn’t have indicator LEDs on every channel but may have basic status LEDs.

7. What happens if there’s a wiring fault or voltage spike on inputs?

   The module includes protection and isolation to reduce damage risk, but proper installation and protective devices are recommended.

8. Can it be used with AC signals?

   No, this module is designed for DC input signals only.

9. What should I do if one input isn’t registering correctly?

   First, check the wiring and sensor output voltage; if everything is correct, try replacing the module or consult technical support.

10. Is this module compatible with older ABB PLC models?

    It is mainly designed for the AC500 series, compatibility with older PLCs may be limited.
