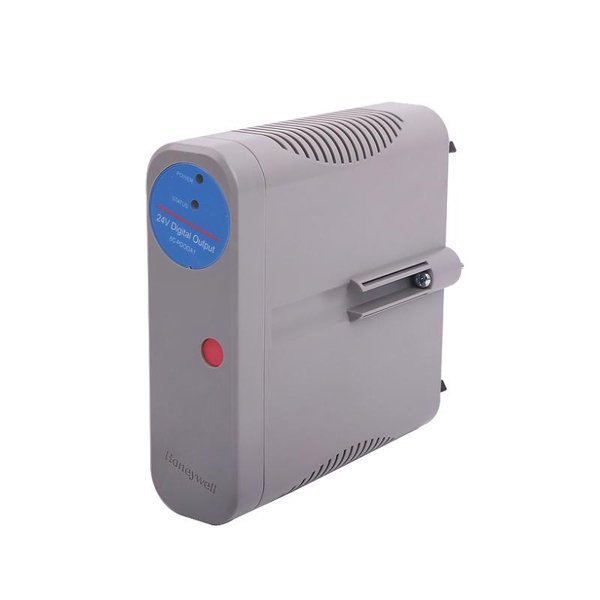

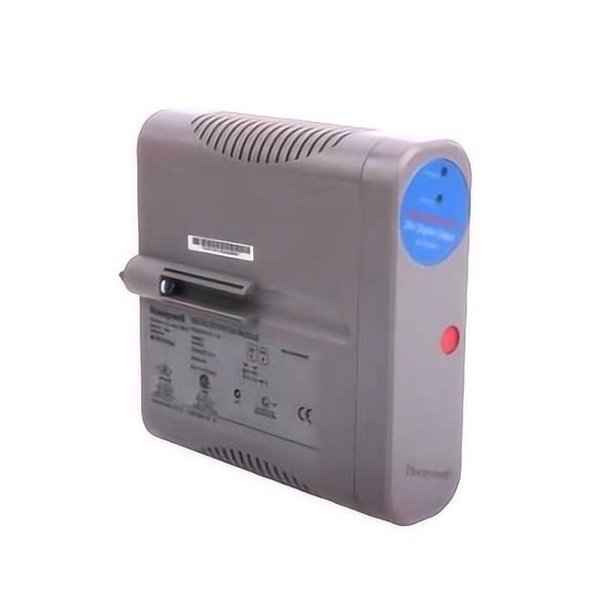

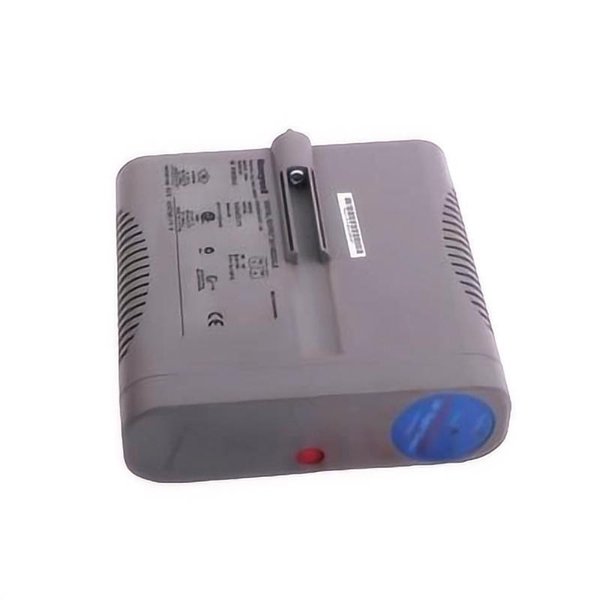

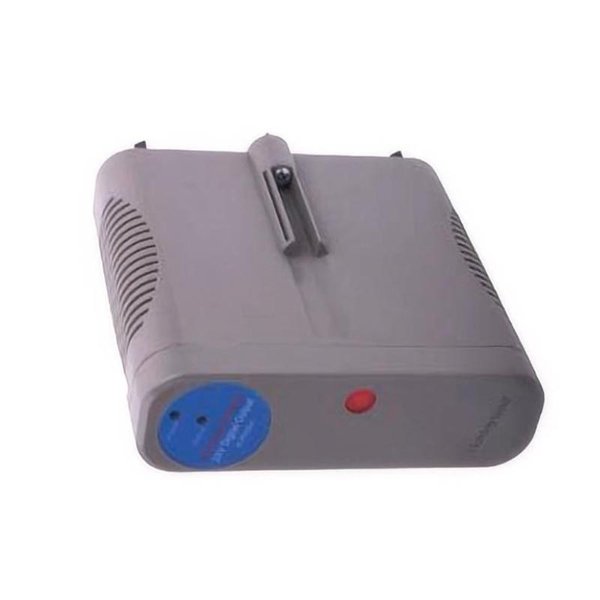

Honeywell 8C-POODA1 Digital Output Module

The Honeywell 8C-POODA1 Digital Output Module is a high-performance I/O module designed for use within Honeywell’s Experion PKS and C300 controller environments. It provides reliable digital output control for industrial automation and process applications, ensuring precise actuation of field devices such as relays, solenoids, alarms, and other binary-controlled equipment.

This module operates as an interface between the control system and the physical world, converting control signals into discrete electrical outputs that can activate or deactivate connected devices. With robust design and advanced diagnostics, it supports uninterrupted operation in mission-critical environments such as oil & gas, chemical processing, power generation, and manufacturing automation.

The 8C-POODA1 is engineered to meet stringent industrial performance standards, featuring strong electrical isolation, fault tolerance, and integrated diagnostic capabilities. These features make it ideal for installations where safety, accuracy, and reliability are paramount.

Product Parameters

Product Applications

• Actuating Field Devices: Controls solenoids, relays, contactors, and alarms in process systems.

• Industrial Automation: Used in manufacturing lines for precise equipment actuation.

• Process Control Systems: Interfaces with C300 and Experion PKS to manage on/off device control.

• Safety Systems: Supports binary actuation for emergency shutdown or alert systems.

• Infrastructure Management: Controls lighting, pumps, and ventilation systems in industrial facilities.

• Energy Sector Operations: Activates breakers, switches, and remote-controlled equipment in power plants.

Product Advantages

• High Reliability: Designed for continuous operation in mission-critical industrial environments.

• Fast Response Time: Less than 5 ms switching ensures precise and timely control actions.

• Electrical Isolation: Prevents cross-channel interference and protects system integrity.

• Integrated Diagnostics: Enables rapid fault detection and maintenance troubleshooting.

• Wide Compatibility: Works seamlessly with Honeywell Experion PKS and C300 systems.

• Industrial Durability: Withstands vibration, temperature fluctuations, and harsh environments.

• Scalable Architecture: Easily integrated into multi-module I/O configurations.

• Standards Compliance: Meets global safety and EMC regulations for industrial use.

FAQ

1. What is the maximum current each output channel can handle?

Each channel can supply up to 0.5 A.

2. How many output channels does the 8C-POODA1 provide?

It offers 16 isolated digital outputs.

3. Does the module provide channel-to-channel isolation?

Yes, each channel is isolated from the others and from the system.

4. Can this module operate in both sinking and sourcing output configurations?

Yes, it supports both depending on wiring configuration.

5. What is the typical output voltage rating?

Nominal output is 24 VDC, depending on system power configuration.

6. How fast can the module switch outputs?

It has a response time of less than 5 milliseconds.

7. Is the module hot-swappable in a live system?

It can be replaced in a powered system when used with appropriate safety procedures.

8. What diagnostic capabilities are built in?

It provides fault detection, channel status indication, and system-level diagnostic reporting.

9. Can it drive inductive loads directly?

Yes, but proper suppression devices (e.g., flyback diodes) are recommended for inductive loads.

10. Is it compatible with older Honeywell control platforms?

It is primarily designed for Experion PKS and C300 but can work with other Honeywell platforms that support the same I/O architecture.
