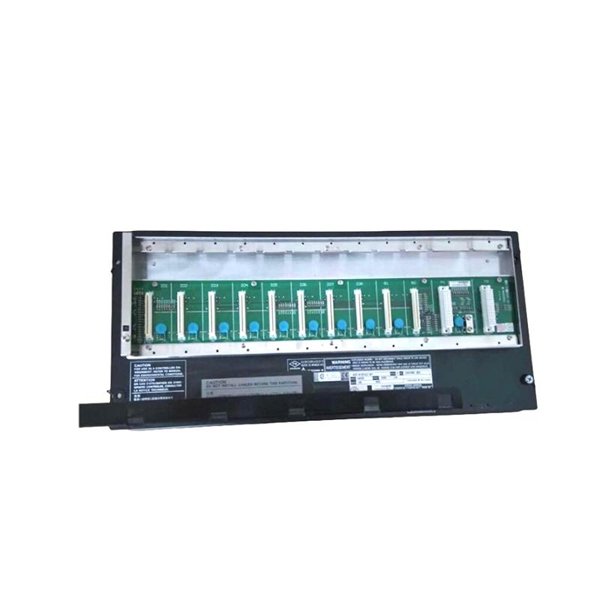

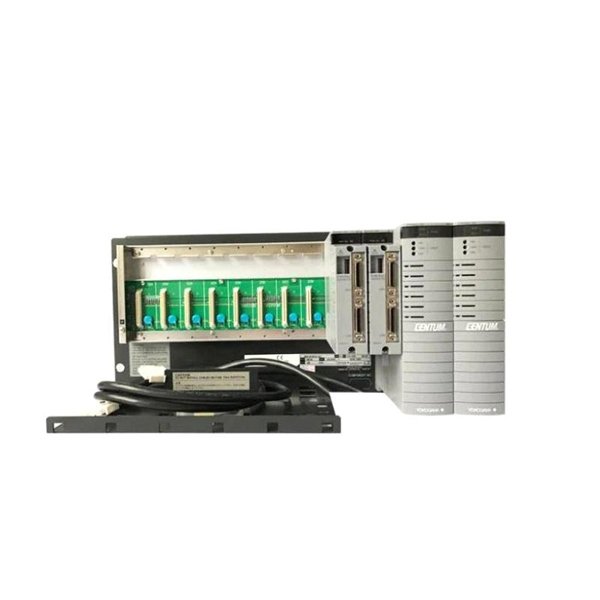

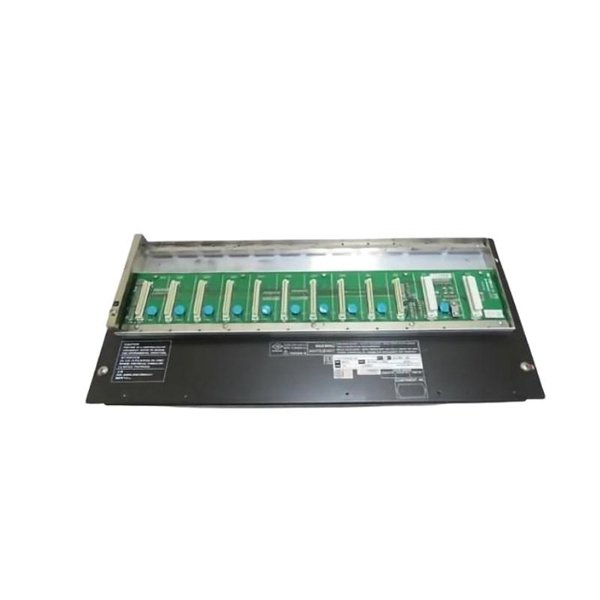

Yokogawa ANB10D-421/CU2N/NDEL ESB Bus Node Unit

The Yokogawa ANB10D-421/CU2N/NDEL is an ESB Bus Node Unit developed by Yokogawa Electric Corporation as part of its robust and high-performance CENTUM VP distributed control system (DCS). It plays a critical role in expanding the I/O architecture via ESB (Enhanced System Bus) to connect field I/O nodes to the Field Control Station (FCS). This node unit ensures high-speed and reliable communication between control systems and field devices, allowing engineers to design flexible, scalable control architectures for industrial automation.

Designed for critical infrastructure industries such as oil and gas, chemical processing, power generation, and pharmaceuticals, this unit excels in demanding applications where precision, reliability, and long-term operation are essential.

Product Specifications

Product Applications

The ANB10D-421/CU2N/NDEL unit finds broad application across various sectors due to its robustness, versatility, and Yokogawa’s proven reliability:

• Oil and Gas: For remote I/O communication in offshore platforms and refineries. Interfaces seamlessly with process control logic and safety systems.

• Chemical Plants: Used to gather analog/digital inputs/outputs from distributed skids and modular units for centralized control.

• Power Generation: Supports environmental controls, turbine monitoring, and substation automation systems in fossil and renewable energy plants.

• Pharmaceuticals: Assures high-speed data transmission from I/O points, supporting batch process operations under GMP-compliant environments.

• Water Treatment: Utilized for centralized monitoring of distributed instrumentation across pump stations, chemical dosing units, and SCADA integration.

Product Advantages

1. High-Speed and Stable Communication

   The ESB bus ensures consistent, low-latency communication across the system network. Redundant connections offer zero-switchover downtime.

2. Modular Architecture

   Allows connection of up to 16 I/O modules per node unit, making it scalable for future system expansions without downtime.

3. Environmental Durability

   With an industrial-grade enclosure and wide temperature/humidity support, it functions reliably even in demanding field conditions.

4. Compact Design

   The space-saving dimensions make the ANB10D-421 suitable for control cabinets with limited space, enhancing installation flexibility.

5. Seamless Integration

   Fully compatible with Yokogawa’s CENTUM VP and ProSafe-RS systems, reducing engineering time and increasing integration efficiency.

6. Advanced Diagnostics

   Integrated status indicators and diagnostics allow fast identification of faults, minimizing downtime and improving maintainability.

7. Safety Certified

   Certified for use in hazardous locations (ATEX Zone 2), ideal for industries like petrochemicals where explosion-proof equipment is required.

Frequently Asked Questions (FAQ)

1. What is the primary function of the ANB10D-421/CU2N/NDEL unit?

   • It acts as a node interface for I/O modules within Yokogawa’s ESB bus system, enabling communication between field devices and the control system.

2. Is this unit compatible with redundant configurations?

   • Yes, it supports redundant ESB bus connections, ensuring high system availability and fault tolerance.

3. How many I/O modules can be connected to this unit?

   • Up to 16 I/O modules can be directly connected to one ANB10D unit.

4. Can it be installed in hazardous locations?

   • Yes, it is ATEX certified for Zone 2 hazardous environments.

5. What power supply is required for the unit?

   • It operates on a 24 V DC power supply, standard for industrial systems.

6. Does the unit have onboard diagnostics?

   • Yes, it features built-in diagnostics and LED indicators for communication and system status.

7. Is it compatible with legacy Yokogawa systems like CENTUM CS 3000?

   • It is optimized for CENTUM VP but may be backward compatible through specific configuration paths.

8. What is the mounting method for this unit?

   • It can be mounted via DIN rail or directly onto control panels.

9. What is the unit’s cooling method?

   • It uses natural convection cooling, requiring no fans or external systems.

10. How do you replace a faulty node unit?

    • The unit is hot-swappable within the system’s redundancy architecture, meaning minimal system downtime.
