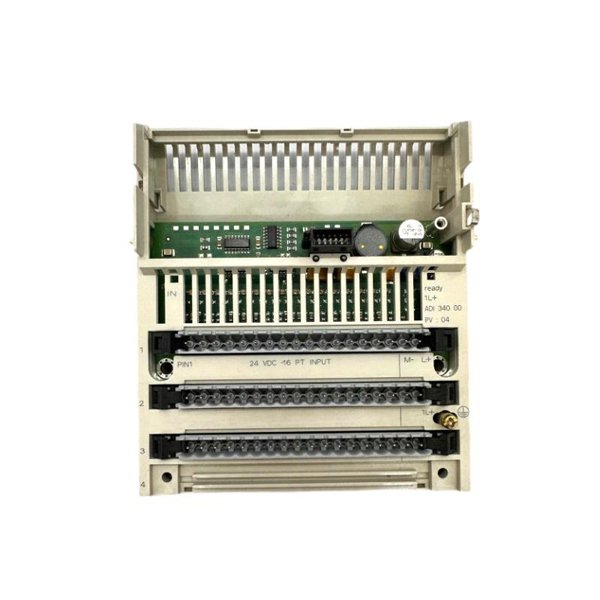

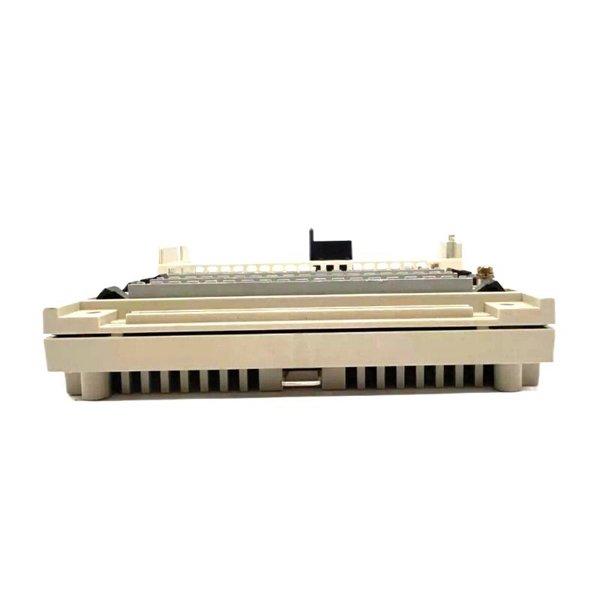

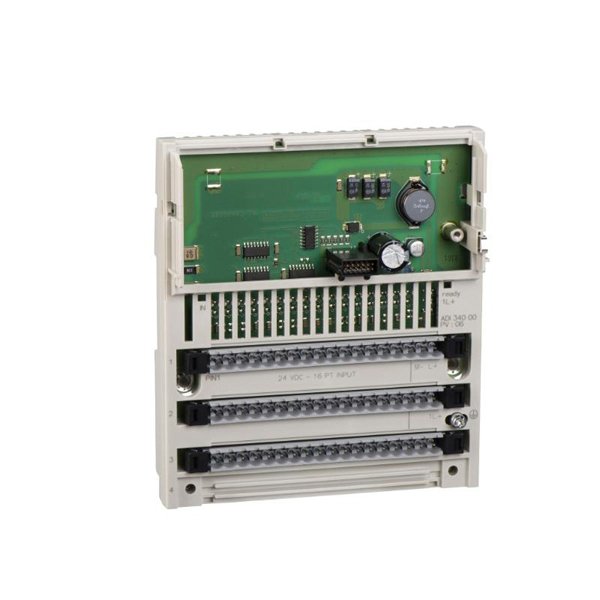

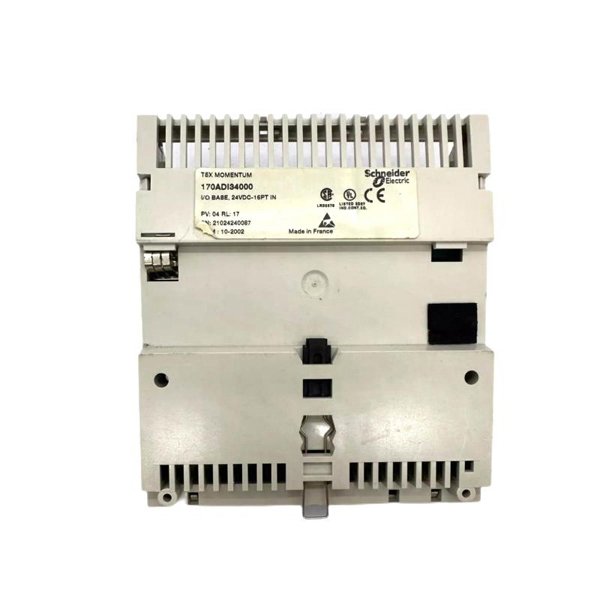

Schneider 170ADI34000 Discrete Input Module

The Schneider 170ADI34000 is a discrete input module designed for use in distributed control systems as part of the Modicon Momentum platform. Engineered for real-time, industrial automation environments, this module provides reliable monitoring of discrete signals from field devices such as sensors, switches, and pushbuttons. With 32 discrete input channels, this compact module allows for efficient and space-saving integration of numerous input points into automation architectures. Built to meet the demands of modern manufacturing, infrastructure control, and energy systems, the 170ADI34000 combines performance with robust design and compatibility across Schneider Electric’s control solutions.

Product Specifications

Product Applications

The 170ADI34000 is built for real-time data acquisition in a wide range of industries and automation scenarios. Its ability to handle high-density discrete signals makes it a suitable choice for systems requiring reliable digital input monitoring.

• Manufacturing Plants: Used in assembly lines, conveyor systems, and robotic control systems to monitor limit switches, sensor states, and other digital signals.

• Water & Wastewater Facilities: Monitors flow switches, pump status, and operational alarms across distributed pumping or treatment systems.

• Energy Management: Collects status signals from circuit breakers, relays, and protective devices in electrical substations or renewable energy fields.

• Transportation & Infrastructure: Installed in control cabinets to monitor gates, barriers, sensors, and signals for automated systems in railways or smart roads.

• Building Automation: Gathers input from security sensors, motion detectors, and access control systems in intelligent buildings.

Product Advantages

• High Channel Density: With 32 channels in a single module, it enables efficient use of space and minimizes cabinet wiring.

• Fast Response Time: Its sub-millisecond response makes it ideal for time-critical applications.

• Robust Industrial Design: Engineered to withstand challenging environments with extended temperature and humidity tolerance.

• Clear Diagnostics: Integrated LED indicators offer immediate channel status visibility, aiding in faster troubleshooting.

• Seamless Momentum Integration: Fully compatible with Modicon Momentum bases and processors, allowing quick integration without the need for complex configuration.

• Low Power Consumption: Optimized current draw reduces overall system energy requirements, contributing to more efficient operations.

• Reliable Isolation: Ensures protection of control circuits through robust channel-to-bus isolation.

Frequently Asked Questions (FAQ)

1. What is the input voltage range for the 170ADI34000?

   The input voltage range is 15 to 30 VDC, with a nominal operating voltage of 24V DC.

2. How many discrete inputs does this module have?

   The 170ADI34000 supports 32 discrete (digital) input channels.

3. Is this module sink or source input type?

   It is a sink (positive logic) input module.

4. Can I use this module with a Modicon Momentum processor base?

   Yes, it is designed to work directly with the Momentum platform and connects via the I/O base.

5. Does this module have channel status indicators?

   Yes, there are LED indicators for each input channel for easy diagnostics.

6. What is the response time for the inputs?

   The module has a fast response time of less than 1 millisecond.

7. What mounting options are available for this module?

   It can be mounted on a DIN rail or directly onto a Momentum base.

8. What kind of isolation does the module provide?

   It offers 500V isolation between the input channels and the internal bus.

9. Is the module certified for industrial use?

   Yes, it has CE, UL, CSA, and RoHS certifications.

10. What is the operating temperature range for the 170ADI34000?

    It operates reliably between 0°C and 60°C.
