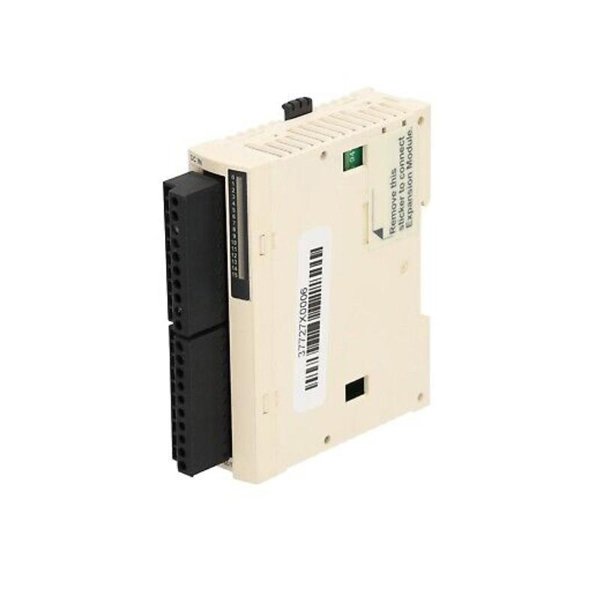

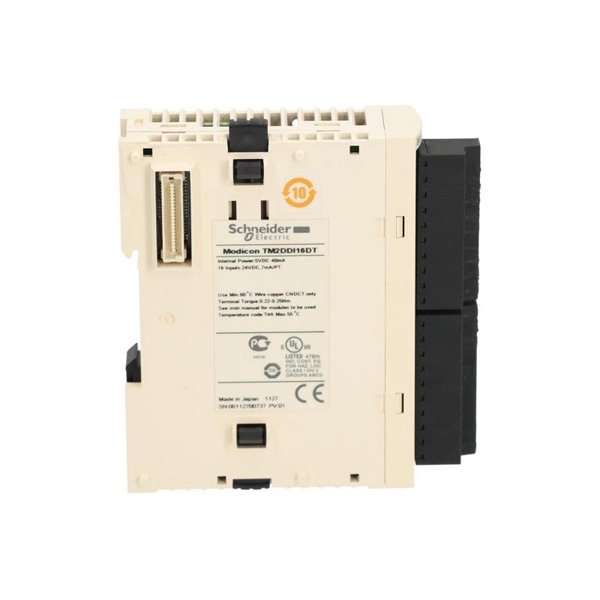

Schneider TM2DDI16DT Discrete Input Modules
Manufacturer:Schneider
Product Number:TM2DDI16DT
Condition:Discrete input modules
Origin:France
Dimensions:94.6x 90x 27.3mm
Weight:0.065kg
Views:41
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The TM2DDI16DT features 16 digital inputs, supporting 24V DC signals, and is designed for harsh industrial environments. Below are the detailed specifications:
| Parameter | Value |
|---|---|
| Number of Inputs | 16 |
| Input Type | Digital (Sink/Source) |
| Voltage Rating | 24V DC |
| Current Consumption | 5mA per input (typical) |
| Isolation Voltage | 500V AC |
| Response Time | <1ms |
| Connection Type | Removable screw terminal block |
| Dimensions | 94.6x 90x 27.3mm |
| Weight | 0.065kg |
| Operating Temp. | -25°C to +70°C |
| Protection Rating | IP20 |
Product Applications
The TM2DDI16DT is widely used in industrial automation for:
-
Machine control systems (e.g., packaging, CNC machines)
-
Process automation (e.g., conveyor systems, assembly lines)
-
Building automation (e.g., HVAC, lighting control)
-
Discrete manufacturing (e.g., automotive, electronics)
-
Safety systems (e.g., emergency stop monitoring)
Product Advantages
-
High Density: 16 inputs in a compact form factor save panel space.
-

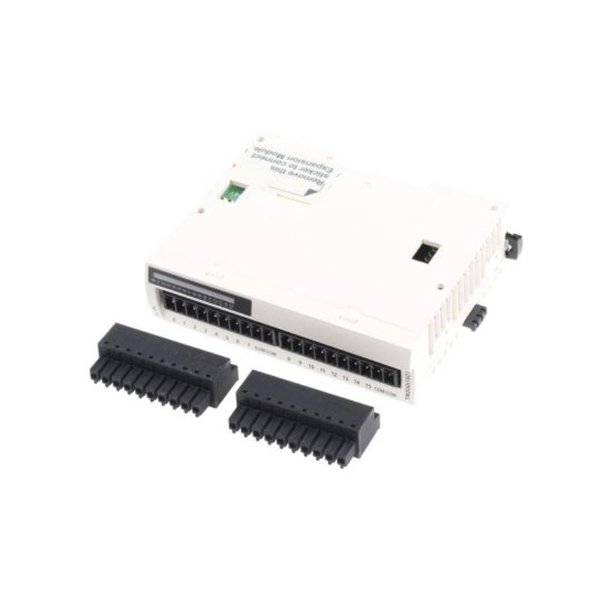

Flexible Wiring: Removable terminal blocks simplify installation and maintenance.
-
Wide Voltage Range: Supports 24V DC industrial standards.
-
Robust Design: Operates in extreme temperatures (-25°C to +70°C).
-
Fast Response: <1ms input response time for high-speed applications.
-
Compatibility: Works seamlessly with Modicon PLCs and TM2 expansion modules.
Frequently Asked Questions (FAQ)
-
Q: Is the TM2DDI16DT compatible with Modicon M221 PLCs?
A: Yes, it is fully compatible with Modicon M221, M241, and M251 PLCs.
-
Q: What is the maximum cable length for inputs?
A: Recommended cable length is up to 100m (shielded cable for noisy environments).
-
Q: Can this module be used in safety-critical applications?
A: No, it is not a safety-rated module. For safety applications, consider TM5S safety modules.
-
Q: Does it support both sink and source input configurations?
A: Yes, the inputs are configurable for sink or source operation.
-
Q: What is the power consumption of the module?
A: Approximately 80mA at 24V DC (all inputs active).
-
Q: Is the TM2DDI16DT hot-swappable?
A: No, power must be turned off before installation or removal.
-
Q: What is the IP rating of this module?
A: IP20 (protected against solid objects>12mm, not waterproof).
-
Q: Can I mix TM2 modules with TM3 or TM4 modules?
A: No, TM2 modules are not compatible with TM3/TM4 systems.
-
Q: How do I troubleshoot a faulty input?
A: Check wiring, voltage levels, and LED indicators (green = active).
-
Q: How long is the warranty period?
A: The standard warranty is 1 years, subject to proper usage and conditions.
