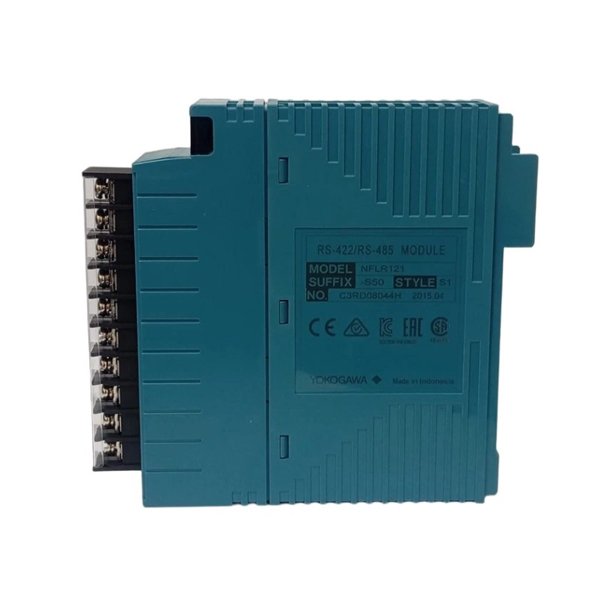

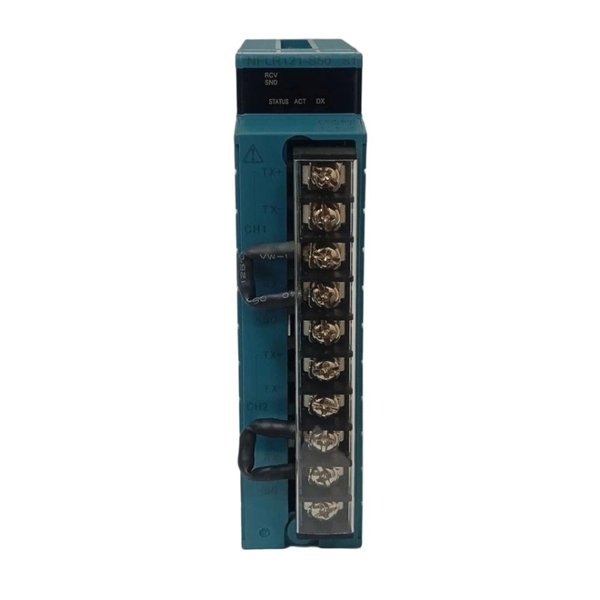

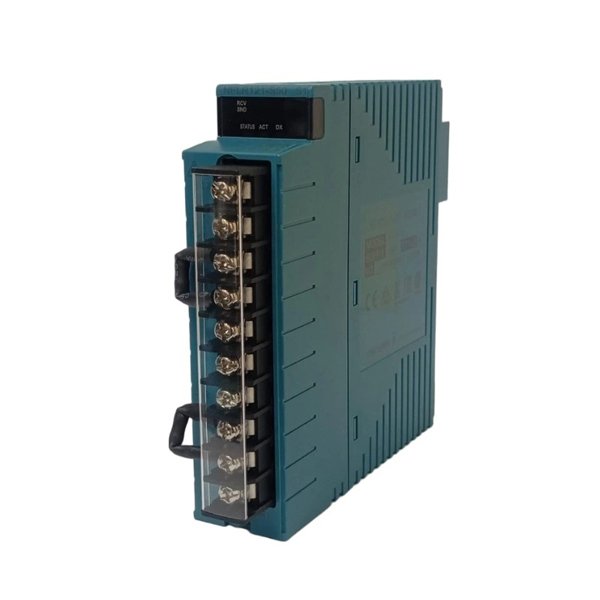

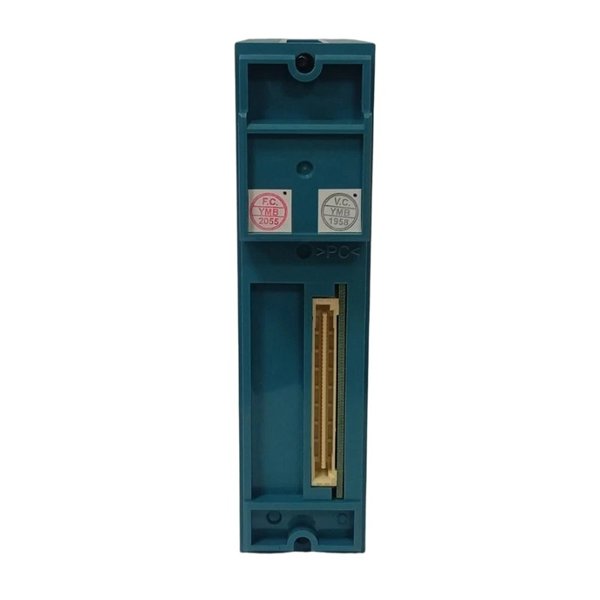

Yokogawa NFLR121-S50 S1 Serial Communication Module

The Yokogawa NFLR121-S50 S1 Serial Communication Module is a reliable interface module designed for industrial automation systems within the Yokogawa Node Field Control (NF) series. It provides seamless communication between controllers and external devices through standardized serial protocols. Built with a focus on performance, stability, and compatibility, this module supports efficient data exchange in demanding process control environments such as power generation, oil & gas, chemical processing, and large-scale manufacturing.

Technical Specifications

Product Applications

• Process Automation – Integration of controllers with legacy field devices.

• Power Plants – Real-time communication between turbine controllers and monitoring systems.

• Oil & Gas – Data transmission for remote sensors and instrumentation panels.

• Chemical Industry – Interfacing analytical instruments with central DCS systems.

• Manufacturing – Connection between PLCs and SCADA systems for production line monitoring.

• Utilities – Remote communication with substations and distributed assets.

Product Advantages

• High Compatibility: Supports multiple serial protocols, enabling integration with various third-party devices.

• Stable Operation: Designed for continuous operation in industrial environments with built-in error detection.

• Flexible Configuration: Customizable transmission settings to meet diverse application requirements.

• Compact Design: Small footprint with lightweight construction for easy installation.

• Energy Efficiency: Low power consumption without compromising communication reliability.

• System Integration: Seamlessly connects to Yokogawa NF series and CENTUM systems.

FAQ

Q1: What serial protocols are supported by the NFLR121-S50 S1 module?

A1: The module supports RS-232C, RS-422/485, and selected proprietary protocols.

Q2: What is the maximum supported baud rate?

A2: The maximum configurable baud rate is 115.2 kbps.

Q3: Can the module handle multiple devices on RS-485?

A3: Yes, RS-485 supports multi-drop communication with proper termination.

Q4: Does the module support CRC-based error checking?

A4: Yes, CRC and parity error detection mechanisms are implemented.

Q5: Is the communication configuration software-adjustable?

A5: Yes, transmission speed, data bits, stop bits, and parity can be configured through system software.

Q6: Can the module operate in redundant control systems?

A6: Yes, it is compatible with redundant architectures for high availability.

Q7: Does it support hot-swapping during operation?

A7: Hot-swapping is not recommended; modules should be replaced during system maintenance.

Q8: What isolation protection does it provide between ports and system bus?

A8: The module offers galvanic isolation to protect against voltage fluctuations and noise.

Q9: How is data integrity maintained in noisy environments?

A9: Error detection, shielding, and isolation mechanisms ensure reliable transmission in harsh conditions.

Q10: Can this module be integrated with Yokogawa CENTUM VP systems?

A10: Yes, it is fully compatible with Yokogawa’s CENTUM VP DCS platforms.
