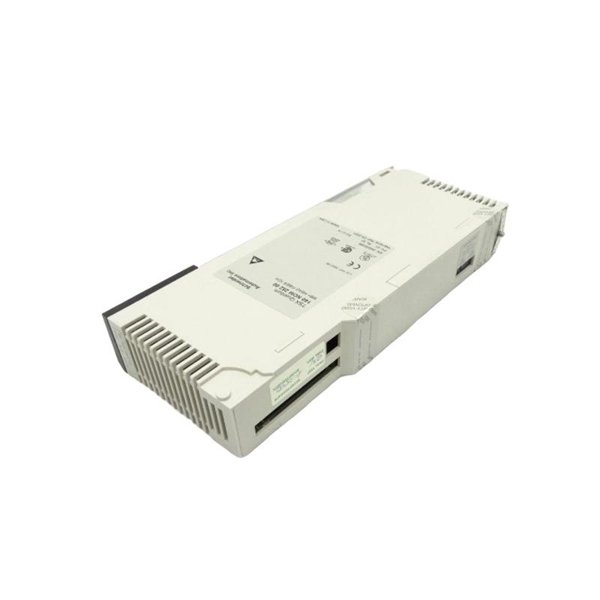

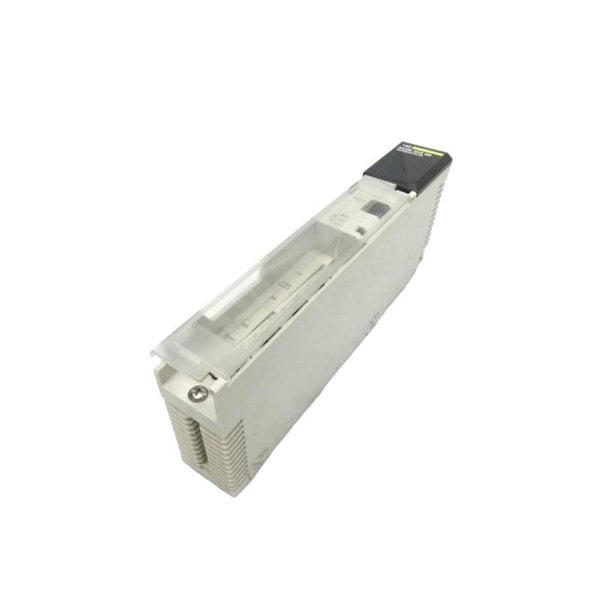

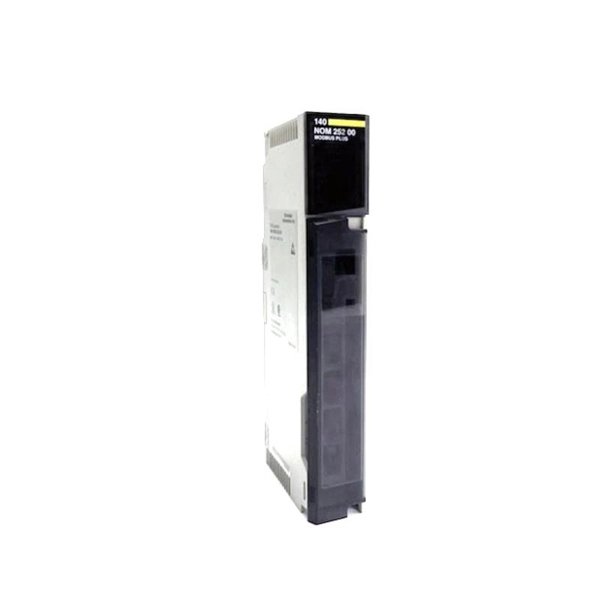

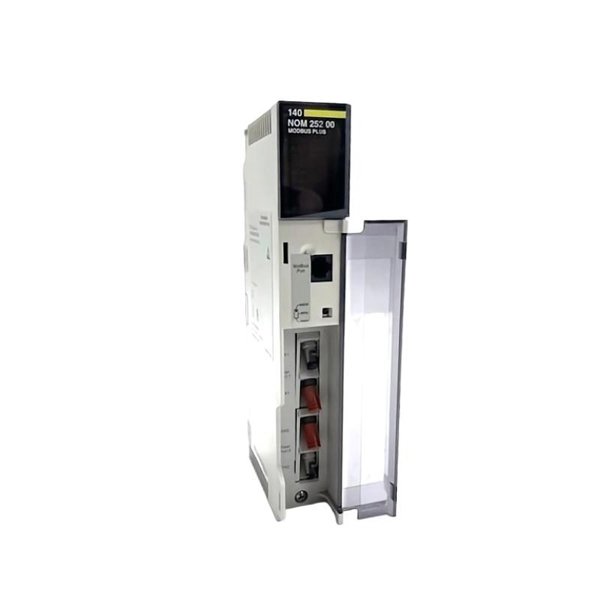

Schneider 140NOM25200C DIO Head-End Adaptor

The Schneider 140NOM25200C is a DIO (Distributed I/O) Head-End Adapter Module designed for integration into the Modicon Quantum platform. As an essential communication interface, this module enables Quantum PLCs to connect with distributed I/O nodes using the RIO (Remote I/O) communication protocol. Its primary function is to act as a communication master in a Remote I/O network, efficiently managing data exchange between the central processor and remote devices across various industrial automation settings.

Engineered for reliability and high-speed communication, the 140NOM25200C supports robust data handling and synchronization, ensuring minimal latency and maximum uptime. It is widely deployed in complex industrial systems where centralized control and remote data collection are crucial.

Product Specifications

Product Applications

The 140NOM25200C DIO Head-End Adapter plays a critical role in distributed automation systems by enabling centralized control with decentralized data collection. It is used across a wide range of industrial environments, such as:

• Process Automation Plants – for linking field devices to control systems.

• Oil & Gas Facilities – remote monitoring and control of pipelines and offshore platforms.

• Water Treatment Systems – integration of remote sensors, pumps, and valves into a central PLC.

• Manufacturing Lines – seamless communication between the Quantum controller and remote I/O racks.

• Power Generation – controlling auxiliary equipment and turbine monitoring systems from a central controller.

• Pharmaceutical Manufacturing – precise control and data logging of distributed process stations.

Product Advantages

• High-Speed Communication: Offers deterministic and reliable Remote I/O communication at up to 1.54 Mbps.

• Dual RIO Support: Allows configuration with two remote drops for greater flexibility in system architecture.

• Integrated Diagnostics: LED indicators and error codes allow quick identification of communication issues.

• Robust Design: Built to perform reliably in harsh industrial environments with wide operating temperature and humidity tolerances.

• Hot-Swappable: Can be replaced without shutting down the system, reducing downtime.

• Compact and Rack-Mounted: Saves space while offering powerful head-end communication functions.

• Enhanced System Integration: Fully compatible with Modicon Quantum architecture and programming tools.

• Fail-Safe Operation: Maintains communication integrity even during unexpected events.

• Global Compliance: Suitable for use in international applications with global certifications.

• Low Power Consumption: Efficiently designed to consume minimal current, ensuring energy savings.

Frequently Asked Questions (FAQ)

1. What is the function of the 140NOM25200C module?

   It acts as a head-end adapter that enables Quantum PLCs to communicate with Remote I/O nodes using the RIO protocol.

2. What type of connection does it use?

   It uses BNC coaxial connectors for communication via the RIO network.

3. How many RIO drops can be connected?

   The module supports up to 2 drops on the Remote I/O network.

4. Is this module hot-swappable?

   Yes, the module can be swapped without powering down the PLC rack.

5. What type of diagnostics does it provide?

   It includes LED indicators and internal diagnostics for communication status and error reporting.

6. What baud rate does it support?

   The module operates at a fixed baud rate of 1.54 Mbps.

7. Can this module be used in hazardous environments?

   Yes, it holds ATEX and CSA certifications, making it suitable for such conditions.

8. Is it compatible with other Modicon platforms?

   It is specifically designed for the Modicon Quantum series.

9. What is the power requirement for the module?

   It consumes approximately 370 mA at 5 V DC from the backplane.

10. Where is the 140NOM25200C manufactured?

    It is manufactured in France under Schneider Electric’s quality standards.
