Triconex 9761-210 3000510-510 Terminal Panel Module

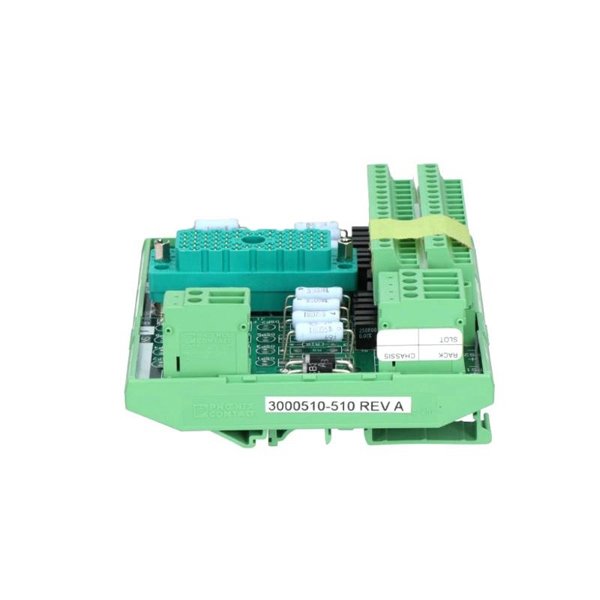

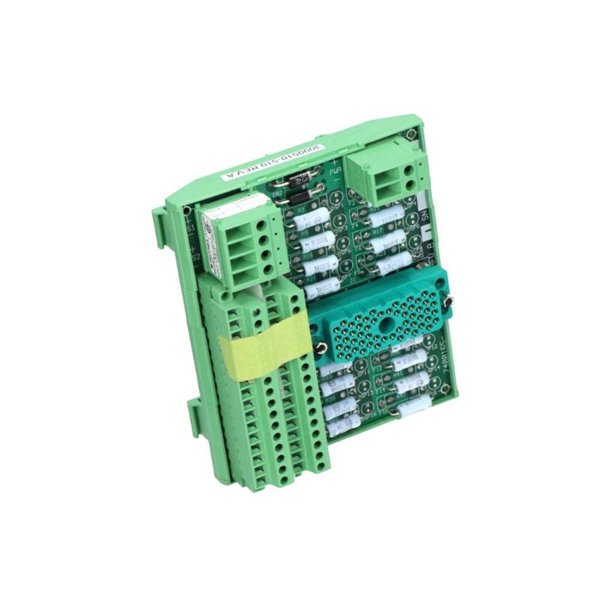

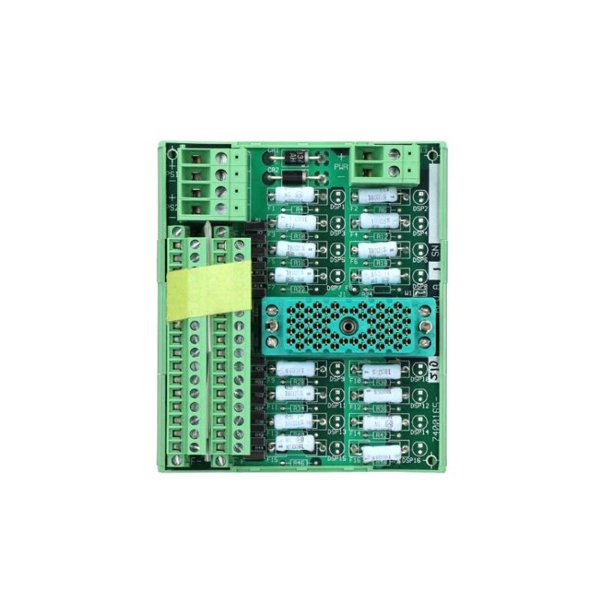

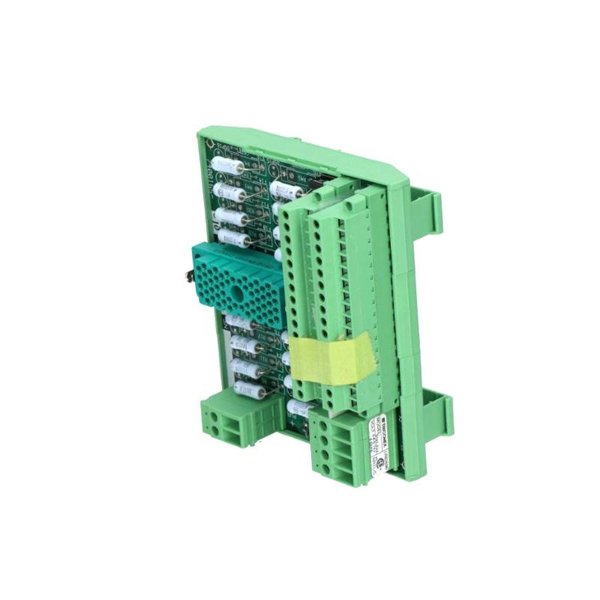

The Triconex 9761-210 Terminal Panel Module (Part Number: 3000510-510) is a dedicated terminal wiring interface designed to seamlessly integrate with Triconex Tricon™ safety systems. As part of the critical infrastructure in safety instrumented systems (SIS), this module facilitates reliable and orderly connection of I/O signals from field instruments to the system’s logic solvers.

The terminal panel ensures ease of maintenance, clean wire management, and high noise immunity. It is engineered to meet the demanding requirements of hazardous and mission-critical industries where safety, accuracy, and fault tolerance are paramount.

Product Specifications

Product Applications

The Triconex 9761-210 module plays an integral role in the functioning of high-reliability process systems, including:

• Oil & Gas Exploration and Refining – Providing safe and redundant field signal connectivity in offshore platforms and refineries.

• Petrochemical Plants – Secure termination of analog and digital I/O for reactors and distillation columns.

• Nuclear Energy Plants – Ensuring reliable and noise-isolated wiring for sensors and actuators in safety zones.

• Power Generation Facilities – Monitoring turbine parameters and facilitating fault-tolerant system wiring.

• Water and Wastewater Treatment – Connecting field instrumentation for pressure, flow, and level control.

• Pharmaceutical Manufacturing – Ensuring GMP-compliant safety and process interlocks.

Product Advantages

• Field-Wiring Convenience: Clean layout simplifies installation and wire identification.

• TMR System Integration: Fully compatible with Triconex Triple Modular Redundant (TMR) architecture.

• High Durability: Resistant to environmental hazards including dust, heat, and moisture.

• Safe and Isolated Wiring: Enhanced dielectric protection between channels and grounding.

• Fast Maintenance: Terminal labels and group separation allow for quick troubleshooting.

• Industrial Grade Build: Built to last in mission-critical safety environments.

Frequently Asked Questions (FAQ)

1. What type of systems can use the 9761-210 Terminal Panel?

   This panel is intended for use with Triconex Tricon™ safety systems and associated I/O modules.

2. Is the panel suitable for analog or digital signals?

   It supports both analog and digital signal termination depending on system configuration.

3. Can it be mounted in hazardous areas?

   The panel itself should be mounted in a control cabinet, but it supports signals from hazardous-rated field devices.

4. What kind of terminal blocks are used?

   It uses industrial-grade screw terminals to ensure secure field wiring.

5. Does it come pre-wired?

   No, field wiring must be connected during installation, but wire labeling aids the process.

6. What is the maximum number of channels?

   Typically supports up to 32 signal channels per unit, depending on I/O layout.

7. Is there electrical isolation between signal lines?

   Yes, the panel offers dielectric strength ≥1500 Vrms to isolate signals and avoid cross-talk.

8. How do I connect this panel to the I/O chassis?

   You can use Triconex-specified ribbon cables or standard shielded harnesses.

9. Is the documentation available from Triconex?

   Yes, detailed wiring diagrams and technical manuals are available via Schneider Electric.

10. How does this panel improve system reliability?

    It ensures clean, noise-immune, and organized field wiring which is critical in safety instrumented systems.
