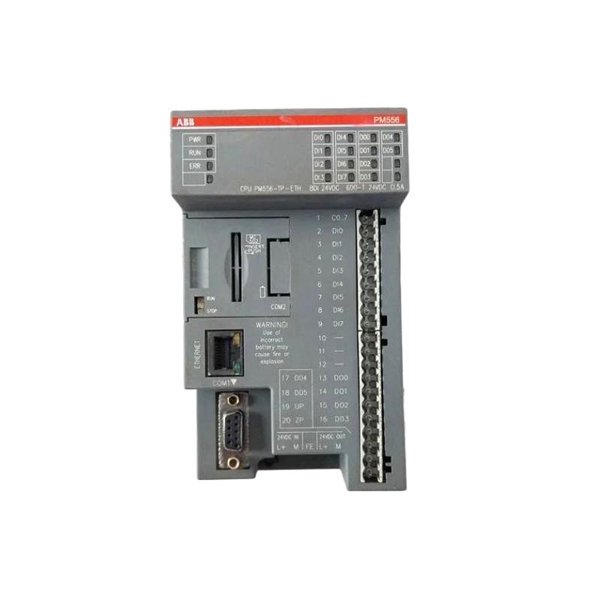

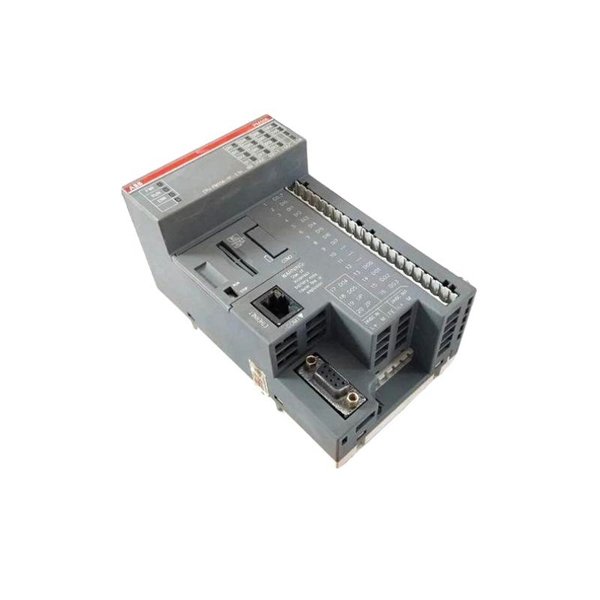

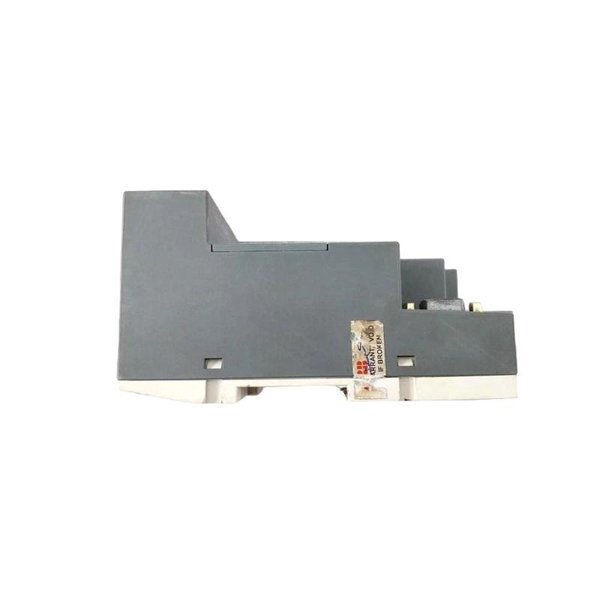

ABB PM556-TP-ETH 1SAP121200R0071 AC500 PLC Processor Module
Manufacturer:ABB
Product Number:PM556-TP-ETH 1SAP121200R0071
Product Type:AC500 PLC Processor Module
Origin:Sweden (SE)
Dimensions:74 × 135 × 82 mm
Weight:0.35 kg
Views:42
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PM556-TP-ETH is a core processor module designed for the AC500 PLC family. It offers high performance with integrated Ethernet communication, ensuring reliable and flexible automation control for various industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | PM556-TP-ETH |
| Part Number | 1SAP121200R0071 |
| Dimensions (W×H×D) | 74 × 135 × 82 mm |
| Weight | 0.35 kg |
| Processor Speed | 400 MHz |
| Memory (RAM) | 256 KB |
| Communication Ports | 1 × Ethernet, 1 × Serial |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to 55°C |
| Programming Language | IEC 61131-3 |
Applications
The PM556-TP-ETH module is suitable for:
-
Manufacturing automation systems
-
Process control in chemical plants
-
Infrastructure management (water, power)
-
Material handling and packaging
-
Machine control in automotive industry
Advantages
-
Integrated Ethernet for fast and flexible network connection
-
Compact size fits tight installation spaces
-
High processing speed improves control efficiency
-
Robust design ensures reliability in industrial environments
-
Compatible with a wide range of AC500 modules
-
Easy programming with IEC 61131-3 standards
FAQ
1. What programming software supports PM556-TP-ETH?
It is programmed using ABB’s Automation Builder software.
2. Can this module communicate over Ethernet?
Yes, it has a built-in Ethernet port supporting Modbus TCP and other protocols.
3. What is the power supply requirement?
It requires a 24 V DC power supply.
4. What operating temperature range does it support?
0°C to 55°C.
5. Is this module compatible with other AC500 modules?
Yes, it works seamlessly within the AC500 PLC system.
6. How much memory does the module have?
It includes 256 KB of RAM.
7. What is the processing speed of the CPU?
The processor runs at 400 MHz.
8. Does it support serial communication?
Yes, it has one serial communication port.
9. Can it be used in safety applications?
The standard PM556-TP-ETH is not safety-certified; ABB offers other models for safety applications.
10. What programming languages are supported?
It supports IEC 61131-3 languages such as Ladder Diagram (LD), Structured Text (ST), and Function Block Diagram (FBD).
