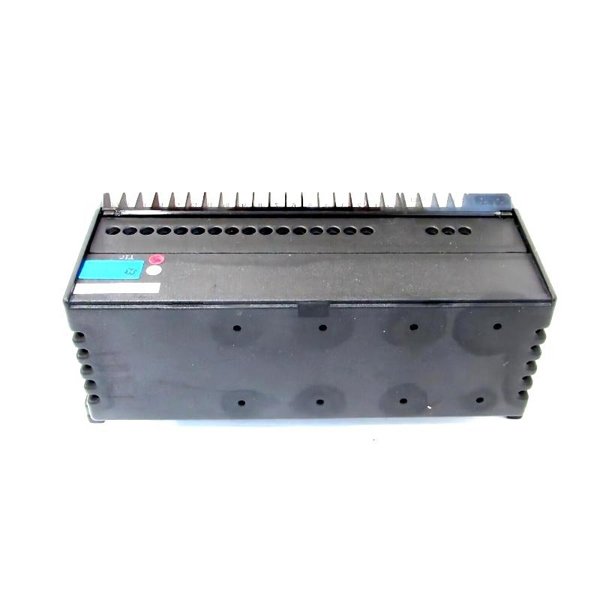

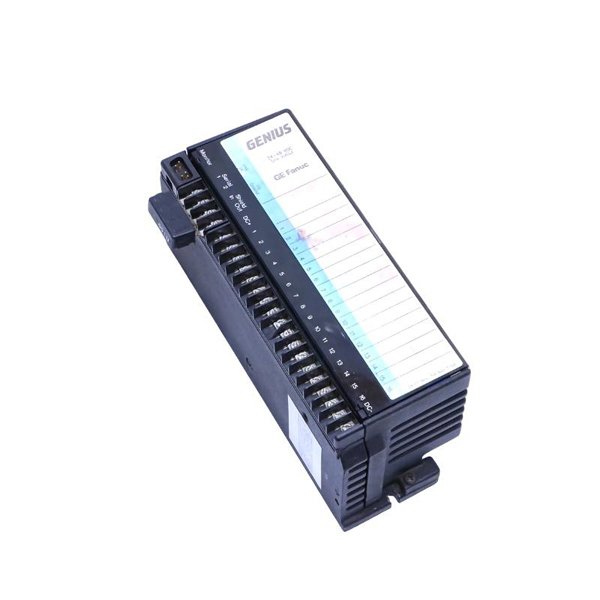

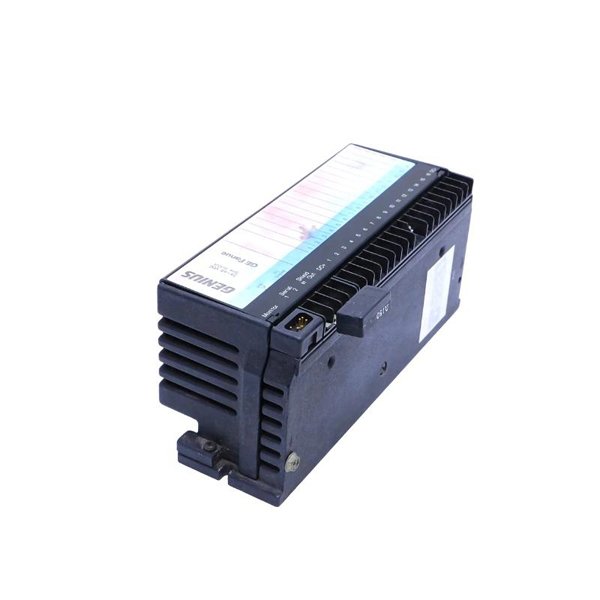

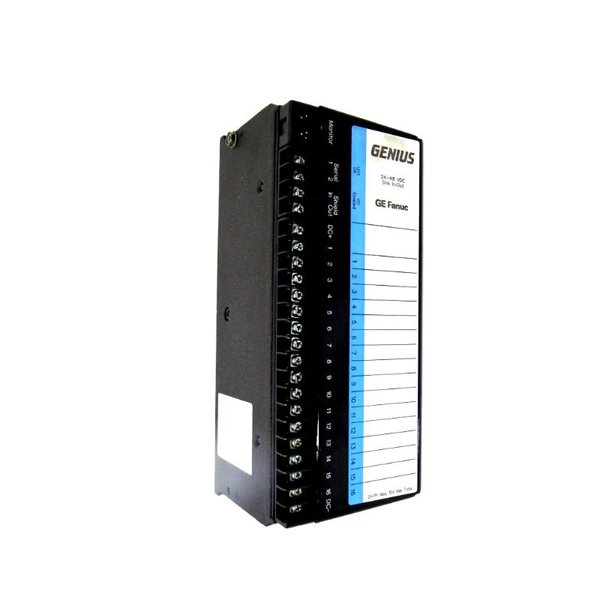

General Electric IC660ELD021 I/O Block Electronic Assembly

The GE IC660ELD021 is an Electronic Assembly for I/O Blocks from the Genius I/O family, designed to work in robust and high-reliability industrial environments. Developed by GE Fanuc, a trusted name in industrial automation, this module acts as an essential interface between field input/output devices and the control system. It is typically used in conjunction with terminal assemblies to form a complete Genius I/O block.

The IC660ELD021 specifically supports sink/source discrete inputs, making it ideal for monitoring field signals from switches, sensors, or other logic devices. With built-in diagnostics, fault detection, and flexible configuration, it ensures reliability and reduces system downtime.

Product Specifications

Applications

The GE IC660ELD021 is widely used in industrial and manufacturing environments, particularly in:

• Factory Automation: For integrating machinery sensors, pushbuttons, and relay status into PLC systems.

• Material Handling Systems: Monitoring limit switches, solenoids, and contactors.

• Water Treatment Plants: Capturing signal feedback from flow meters and valve actuators.

• Energy Sector: Collecting data from field switches in substations or turbine control systems.

• Food & Beverage Processing Lines: Monitoring packaging and conveyor sensors.

Product Advantages

• Robust Industrial Design: Built for harsh environments with high vibration and temperature variation.

• Flexible Input Options: Compatible with both sourcing and sinking inputs, increasing wiring flexibility.

• Modular Construction: Can be easily replaced or upgraded without rewiring the terminal block.

• Comprehensive Diagnostics: Helps reduce troubleshooting time and increases uptime.

• LED Indicators: Quick visual confirmation of individual input status.

• Part of Genius I/O Network: Seamless integration with GE Fanuc PLCs and other automation components.

Frequently Asked Questions (FAQ)

1. Q: Is IC660ELD021 compatible with both sourcing and sinking inputs?

   A: Yes, it supports both sourcing and sinking discrete input devices.

2. Q: Does this product require a specific terminal assembly?

   A: Yes, it must be paired with a compatible GE Genius terminal block for full operation.

3. Q: Can this I/O block be hot-swapped during operation?

   A: No, it must be powered down before removal or installation for safety and protection.

4. Q: Is it suitable for outdoor installations?

   A: It is not rated for outdoor use unless placed inside a weatherproof enclosure.

5. Q: What type of field devices can be connected to this module?

   A: It supports switches, proximity sensors, relay contacts, and other discrete input devices.

6. Q: Does this product offer short-circuit protection?

   A: Yes, it features built-in diagnostics including short-circuit detection.

7. Q: What is the lifespan of the IC660ELD021?

   A: With proper installation, it typically lasts 10+ years in industrial environments.

8. Q: Are firmware upgrades required for this module?

   A: No firmware upgrades are needed; it functions as a hardware-only I/O module.

9. Q: Is the IC660ELD021 backward compatible with older Genius blocks?

   A: Yes, it maintains backward compatibility with earlier Genius I/O systems.

10. Q: Can it be used in safety-critical systems?

    A: While reliable, it is not SIL-rated. For safety applications, use certified safety modules.
