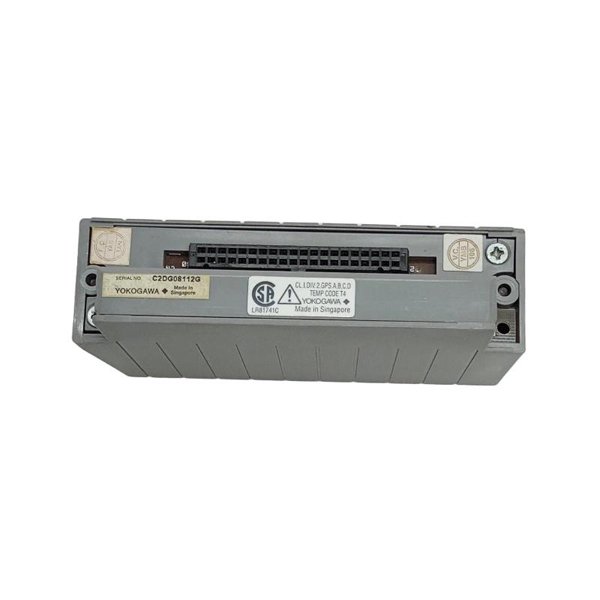

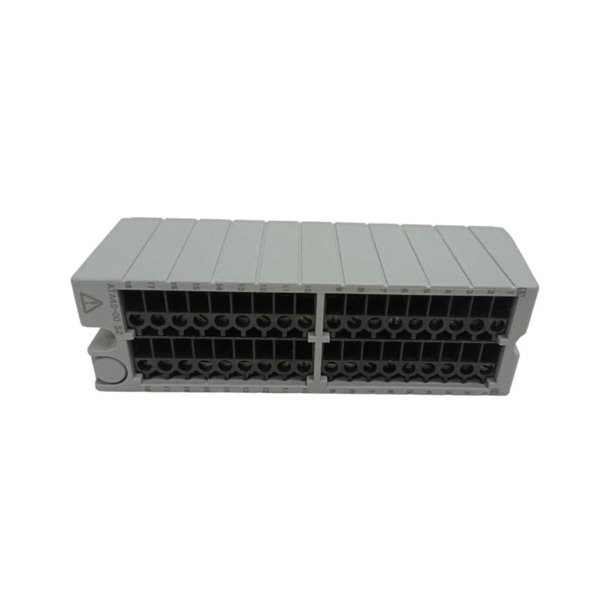

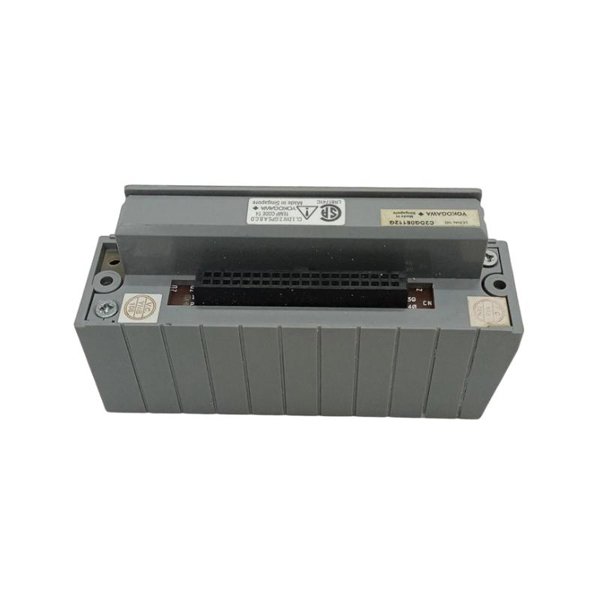

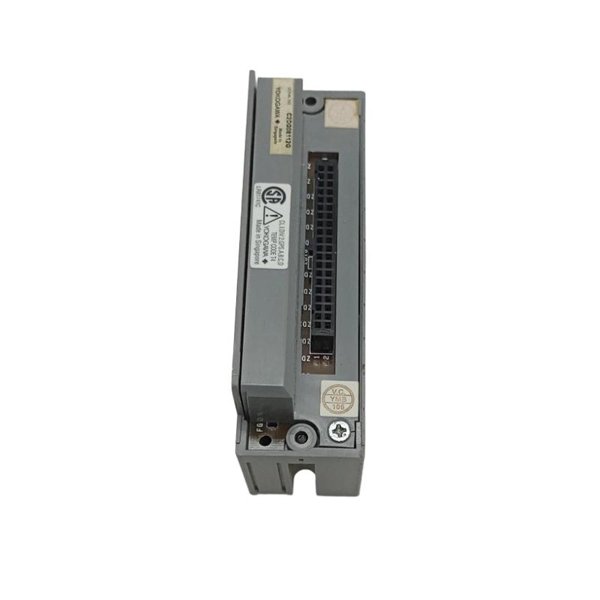

Yokogawa ATA4S-00 Pressure Terminal Block

The Yokogawa ATA4S-00 is a robust pressure terminal block designed for use in demanding industrial environments where accuracy, reliability, and durability are essential. This model features a high-quality construction with easy-to-install connections for seamless integration into industrial control systems. The ATA4S-00 is specifically designed for applications that require precise pressure monitoring and control, offering a safe and effective solution for various sectors, including oil and gas, chemical processing, power plants, and manufacturing industries. Its compact size and dependable performance make it a go-to choice for engineers seeking a reliable pressure monitoring solution.

Product Parameters

Applications

The ATA4S-00 pressure terminal block is ideal for a wide range of industrial applications where precise pressure measurements and reliable data transmission are essential. Some of the primary applications include:

• Oil and Gas: Used for monitoring pressure in pipelines, tanks, and drilling operations to ensure safe and optimal performance.

• Chemical Processing: Helps control and measure pressure in reactors, pipelines, and chemical storage systems, contributing to the safe operation of chemical plants.

• Power Plants: Used in turbines, boilers, and cooling systems to ensure accurate pressure readings for improved efficiency and safety.

• Manufacturing & Automation: Integrated into industrial control systems for precise pressure monitoring, ensuring consistent performance in production lines.

• HVAC Systems: Helps regulate and monitor pressure in heating, ventilation, and air conditioning systems for optimal performance and safety.

Advantages

1. Compact and Space-Saving Design: With dimensions of just 114 x 32.6 x 60.5 mm, the ATA4S-00 is designed to fit into spaces where larger terminal blocks cannot, making it an ideal choice for compact control systems.

2. Reliable Pressure Measurement: The ATA4S-00 provides highly accurate pressure measurements with low contact resistance (<1 ohm), ensuring consistent and precise data transmission.

3. Wide Temperature Range: The device can operate efficiently within a temperature range of -40°C to 85°C, making it suitable for use in both harsh and extreme environments.

4. Polycarbonate Enclosure: Its durable polycarbonate construction ensures the ATA4S-00 is resistant to chemicals, environmental stress, and mechanical damage, offering long-lasting performance.

5. Safety Features: With an insulation voltage rating of 500 VAC, the ATA4S-00 ensures safe and reliable operation in electrically sensitive environments.

6. Ease of Installation: The ATA4S-00 is designed for easy installation, reducing system downtime and simplifying maintenance procedures.

FAQ

1. What is the maximum pressure that the ATA4S-00 can handle?

   The ATA4S-00 can handle a maximum pressure of up to 1000 psi, making it suitable for many high-pressure industrial applications.

2. What is the required voltage for the ATA4S-00 to operate?

   The ATA4S-00 operates on a 24 VDC input voltage, which is typical in industrial automation and control systems.

3. Can the ATA4S-00 be used in hazardous environments?

   Yes, the ATA4S-00 is suitable for industrial environments, including hazardous locations. However, it’s important to verify specific compliance with local regulations and standards.

4. How does the ATA4S-00 ensure accuracy in pressure measurement?

   The ATA4S-00 provides accurate pressure measurements with minimal contact resistance (<1 ohm), ensuring stable and precise data for process control.

5. What materials are used in the construction of the ATA4S-00?

   The ATA4S-00 features a polycarbonate enclosure, which is highly resistant to environmental and chemical stress, providing excellent durability and long service life.

6. What is the insulation resistance rating of the ATA4S-00?

   The ATA4S-00 is rated for an insulation voltage of 500 VAC, ensuring safe operation in systems that may experience electrical disturbances.

7. Can the ATA4S-00 be used outdoors?

   Yes, the ATA4S-00 can be used outdoors, but it should be protected from extreme weather conditions and direct exposure to moisture to ensure optimal performance.

8. Is the ATA4S-00 compatible with other Yokogawa products?

   Yes, the ATA4S-00 is designed to integrate seamlessly with other Yokogawa equipment, making it a flexible option for industrial control systems.

9. How is the ATA4S-00 installed?

   The ATA4S-00 is designed for easy installation with simple connection procedures, reducing the setup time and minimizing downtime in critical systems.

10. How does the ATA4S-00 handle electrical interference?

    The ATA4S-00 offers excellent resistance to electrical interference, thanks to its low contact resistance and high insulation rating, making it reliable even in environments with potential electrical noise.
