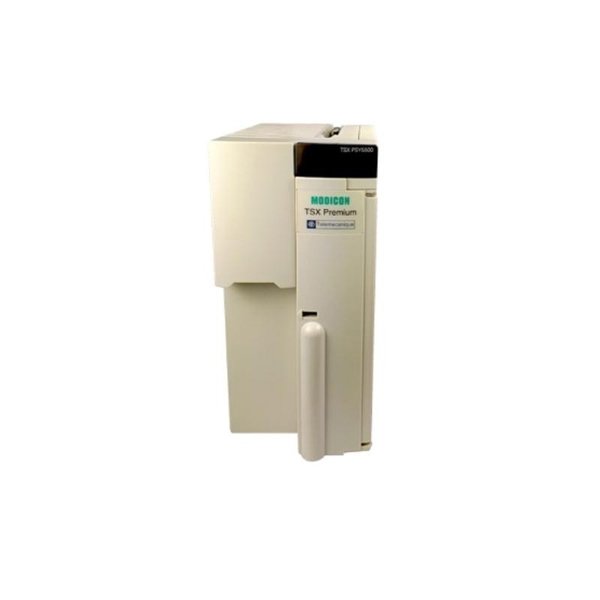

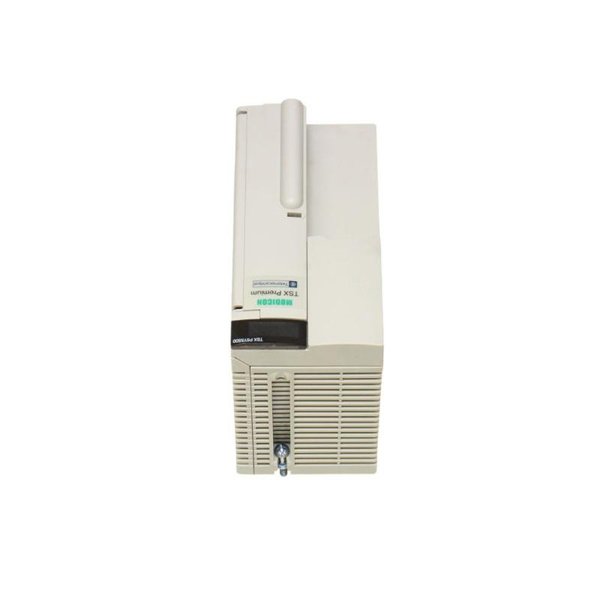

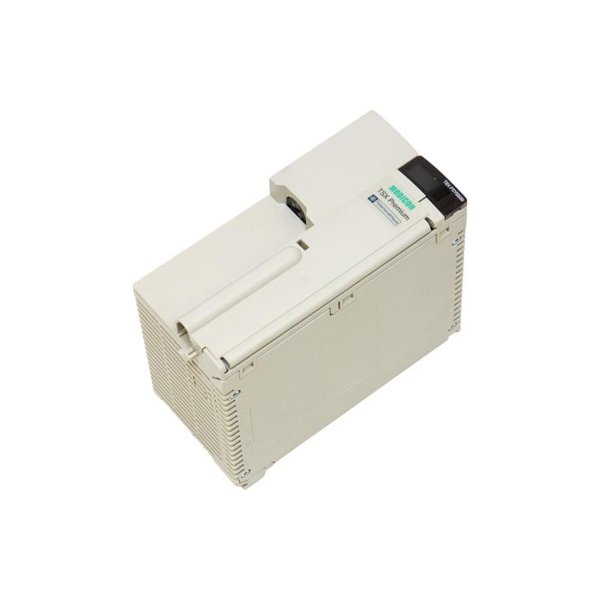

Schneider TSXP5Y5500M Power supply Module

The Schneider TSXP5Y5500M is a versatile, highly reliable I/O module designed to work with Schneider Electric’s TSX PLC systems. With its advanced features and efficient design, it is ideal for managing a wide range of automation applications. This module is a part of Schneider Electric’s extensive range of high-performance products designed to meet the needs of modern industrial environments.

Product Specifications

Applications

The Schneider TSXP5Y5500M is specifically designed to offer high performance and flexibility in industrial automation. Some of the key areas where this module can be applied include:

• Manufacturing Automation: Ensuring smooth operation of automated production lines by providing real-time control and monitoring.

• Building Automation: Efficiently handling lighting, HVAC, and security systems to optimize energy consumption.

• Process Control Systems: Managing and regulating various processes in industries such as chemical, oil & gas, and pharmaceuticals.

• Industrial Equipment Monitoring: Collecting data from sensors and acting as a gateway between various industrial machines and control systems.

• Material Handling Systems: Seamlessly integrating with conveyors, robotic arms, and other automated machinery for enhanced performance.

Product Advantages

1. High Reliability: The TSXP5Y5500M is built to withstand harsh industrial environments, ensuring a long lifespan and consistent performance.

2. Modular Design: Offers flexibility in system configuration and scalability to meet growing operational demands.

3. Energy Efficient: Helps in reducing energy consumption by optimizing control functions in automated systems.

4. Compact Size: Its small footprint allows easy integration into existing control panels without taking up too much space.

5. Easy Integration: Seamlessly integrates with other Schneider Electric PLCs, ensuring smooth and uninterrupted communication in automation systems.

6. Wide Operating Temperature Range: It is suitable for use in a variety of climates and industrial conditions, from extreme heat to freezing temperatures.

7. Simple Installation: The modular design allows for quick setup and installation, minimizing downtime during system upgrades or expansions.

8. Durability: Built to last under continuous operation, minimizing the need for frequent maintenance.

Frequently Asked Questions (FAQ)

1. What is the input voltage range of the Schneider TSXP5Y5500M?

   • The input voltage range is 24V DC, which is standard for most industrial automation applications.

2. Can the Schneider TSXP5Y5500M module be used in outdoor applications?

   • It is designed for indoor use with an IP20 rating. For outdoor use, additional enclosures or protective measures are required.

3. How many input and output channels does the Schneider TSXP5Y5500M support?

   • The module supports 16 digital inputs and 16 digital outputs.

4. What is the operating temperature range of this module?

   • The operating temperature range is from -10°C to +60°C, making it suitable for most industrial environments.

5. Can this module be used with third-party PLC systems?

   • While it is optimized for use with Schneider Electric’s TSX series PLCs, it may be compatible with other PLCs, depending on the communication protocol used.

6. What type of outputs are supported by this module?

   • The Schneider TSXP5Y5500M supports both relay and transistor outputs, offering flexibility in various applications.

7. Is the Schneider TSXP5Y5500M compatible with Schneider’s Modicon series?

   • Yes, it is fully compatible with Schneider’s Modicon PLC series, ensuring seamless integration within their control systems.

8. What is the IP rating of this product?

   • The TSXP5Y5500M has an IP20 rating, meaning it is protected against dust and can withstand some level of external physical contact.

9. What kind of protection features does the module have?

   • The module has built-in overvoltage, overload, and short-circuit protection, ensuring the safety and longevity of the system.

10. Is there a warranty for this product?

• Yes, Schneider Electric typically offers a 1-year warranty on their products, covering any manufacturing defects.
