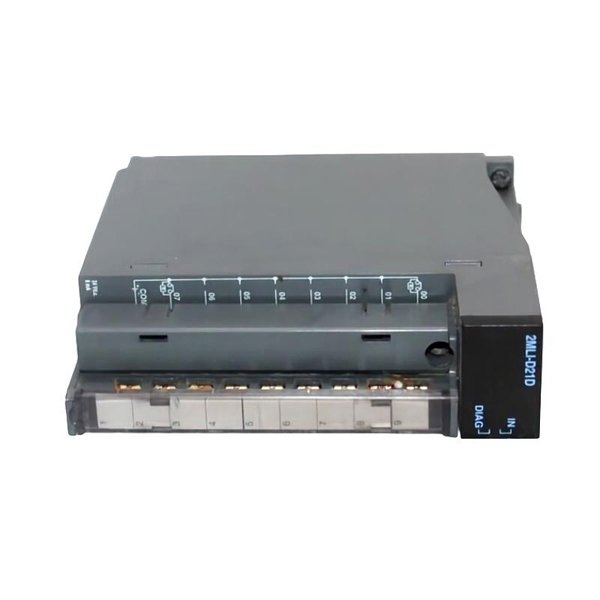

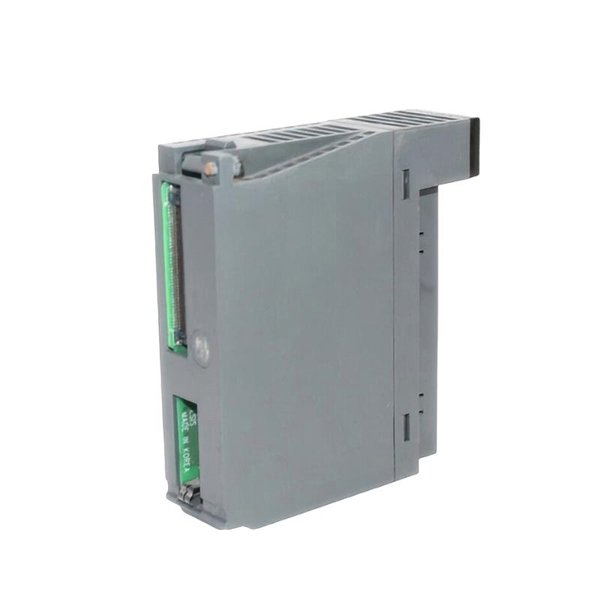

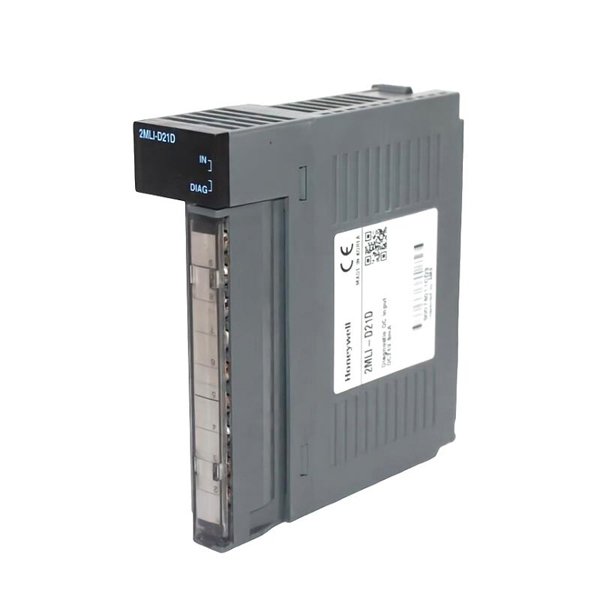

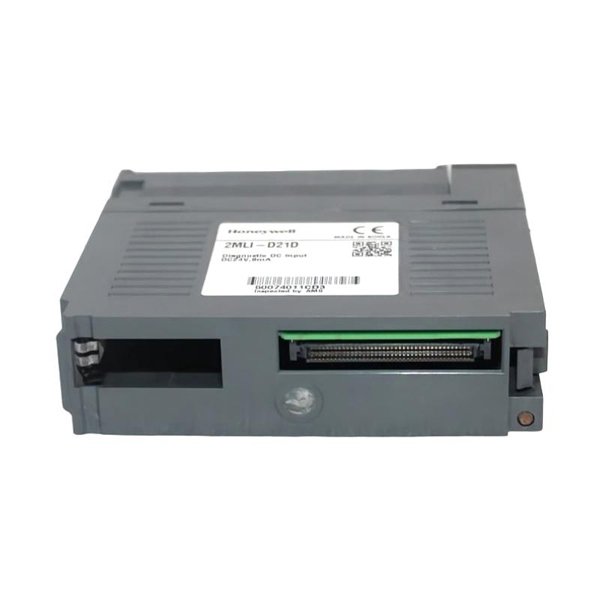

Honeywell 2MLI-D21D-CC Digital Input Module

The Honeywell 2MLI-D21D-CC Digital Input Module is a high-reliability component designed for industrial automation systems that require fast and accurate acquisition of digital signals. As part of Honeywell’s Modular Control System (MLI series), this module plays a critical role in interfacing field-level digital inputs—such as switches, sensors, and relays—with the main control processors.

Engineered to perform in harsh industrial environments, the 2MLI-D21D-CC ensures real-time data transmission and robust isolation between control logic and the input field devices. It is especially effective in applications requiring high-speed logic processing, event detection, and state monitoring.

This digital input module integrates seamlessly with Honeywell’s Distributed Control System (DCS) and Programmable Logic Controller (PLC) platforms, allowing for efficient deployment in various automation and safety-critical systems.

Product Specifications

Product Applications

• Process Control in Refining and Petrochemical Plants

  Monitors digital input states such as pump interlocks, flow switches, and tank level indicators.

• Manufacturing and Assembly Lines

  Captures on/off states from sensors, limit switches, and proximity sensors for real-time automation.

• Power Generation Facilities

  Used for monitoring contact states in turbines, transformers, and generator safety systems.

• Water and Wastewater Treatment

  Gathers feedback from float switches, motor starters, and alarm indicators.

• Building Automation and HVAC Systems

  Reads binary states from thermostats, occupancy sensors, and fire alarm systems.

• Pharmaceutical and Food Processing Plants

  Supports digital state detection in cleanroom environments, enhancing GMP compliance and traceability.

Product Advantages

• High Channel Density

  Supports up to 16 digital input points, reducing overall I/O module footprint and cost per point.

• Robust Electrical Isolation

  Galvanic isolation between input channels and control logic improves system safety and reduces risk from transients or short circuits.

• Built-in Diagnostics

  Includes per-channel LED indicators and internal diagnostics for fault detection and troubleshooting.

• Configurable Input Filtering

  Software-tunable debounce filtering ensures accurate signal detection in electrically noisy environments.

• Fast Response Time

  Sub-5 ms reaction time supports real-time control loop integration and high-speed logic execution.

• Seamless DCS/PLC Integration

  Designed for plug-and-play compatibility with Honeywell’s control systems, allowing for easy commissioning and expansion.

FAQ

1. What type of input devices can be connected to the 2MLI-D21D-CC module?

   The module can interface with discrete devices such as pushbuttons, proximity sensors, limit switches, relay contacts, and dry contacts that operate within a 18–32 VDC signal range.

2. Does this module support both sourcing and sinking input configurations?

   Yes, it is designed to be compatible with both sourcing and sinking devices, providing flexibility in system wiring.

3. Is each input channel electrically isolated from the others?

   Yes, the module features galvanic isolation between channels and from field wiring to internal logic, typically rated at 1500 V RMS.

4. How does the module handle input signal filtering or debounce?

   Each channel supports configurable software-based debounce filtering to eliminate false triggering caused by contact bounce or noise.

5. What is the module’s response time to a change in digital input state?

   Under typical conditions, the response time is less than 5 milliseconds, making it suitable for fast state monitoring and control.

6. Can the module detect wire faults or loss of signal from the input device?

   Yes, it supports diagnostics for detecting open circuits, short circuits, and signal absence, which are reported to the controller.

7. Are LED indicators available for each channel on the front of the module?

   Yes, each input channel has an associated status LED for quick visual diagnostics and operational feedback.

8. What type of controller platforms is the 2MLI-D21D-CC compatible with?

   It is compatible with Honeywell MLI-based systems, including HC900 and Experion PKS controllers such as C300.

9. Can the debounce settings be configured individually per channel?

   Yes, debounce and input filter parameters can be independently adjusted for each channel via system software tools.

10. How does the module respond to rapid input state changes under high-speed operation?

    The module is designed to reliably capture fast signal transitions without data loss, provided the input frequency and debounce settings are properly configured.
