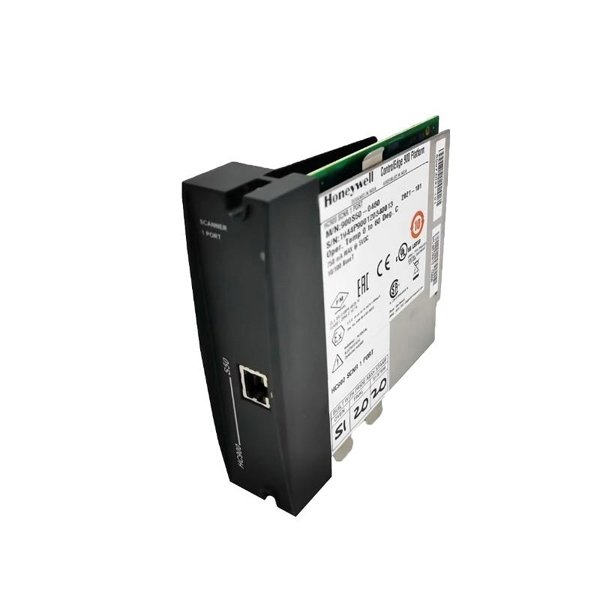

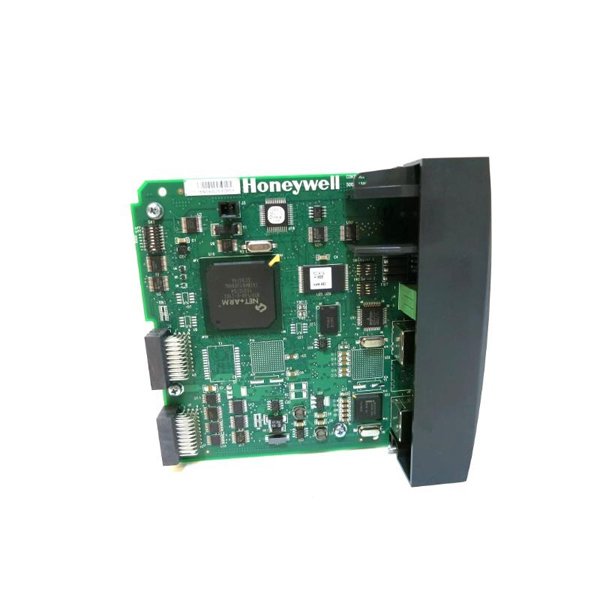

Honeywell 900C53-0001 I/O Scanner

The Honeywell 900C53-0001 I/O Scanner is a key module designed for use in Honeywell’s HC900 Process Control System. It acts as a vital communication link between the controller and field input/output devices. The I/O Scanner collects data from distributed I/O modules and transmits it to the central controller while ensuring real-time monitoring and control in industrial automation applications.

The scanner is engineered for high reliability and performance in demanding environments, facilitating seamless communication across complex control systems. It supports flexible system architecture and is well suited for industries where precise process control and data accuracy are critical.

Product Specifications

Applications

The Honeywell 900C53-0001 I/O Scanner is widely used in industries that rely on distributed control systems and require efficient data acquisition from multiple I/O points:

• Chemical Industry: Integrates sensors and actuators in complex chemical processing plants for precise process control.

• Water Treatment: Collects data from field instruments in water and wastewater treatment plants, enabling smooth process monitoring.

• Power Generation: Supports data exchange for turbine and generator control, improving operational efficiency.

• Manufacturing: Automates and monitors production lines, ensuring timely data collection for process adjustments.

• Oil & Gas: Collects input from remote field devices to maintain safety and control in exploration and refining operations.

• Food & Beverage: Enables real-time data acquisition from processing equipment to maintain product quality and safety standards.

Product Advantages

• Reliable Data Communication

  The scanner ensures consistent, real-time communication between the control system and field devices, minimizing data loss and delays.

• Flexibility and Scalability

  Supports up to 16 I/O modules, allowing flexible system expansion as operational needs grow.

• Easy Integration

  Compatible with Honeywell’s HC900 system and other industrial controllers, the scanner supports various communication protocols for easy system integration.

• Compact and Robust Design

  Small footprint and durable build allow it to fit in tight control cabinets while withstanding harsh industrial environments.

• Simplified Installation

  Supports DIN rail and panel mounting, facilitating quick and hassle-free installation.

• Low Power Consumption

  Efficient design reduces power requirements, helping to lower operational costs.

• Wide Operating Temperature Range

  Operates reliably in challenging temperature conditions typical of industrial sites.

• Comprehensive Diagnostic Features

  Built-in diagnostics help detect communication issues early, reducing downtime and maintenance costs.

• Support for Multiple I/O Types

  Works with both analog and digital I/O modules, providing versatility across applications.

• Compliance and Safety

  Meets international standards (CE, UL, RoHS), ensuring safe and environmentally friendly operation.

FAQ

1. What is the primary role of the Honeywell 900C53-0001 I/O Scanner?

It collects data from distributed input/output modules and transmits it to the main controller for processing.

2. How many I/O modules can the scanner support?

The scanner supports up to 16 I/O modules.

3. What types of I/O modules are compatible with this scanner?

Both analog and digital I/O modules are supported.

4. What communication protocols does the scanner use?

It uses Honeywell proprietary protocols and supports Modbus for communication.

5. Can the I/O Scanner be installed on a DIN rail?

Yes, it supports both DIN rail and panel mounting.

6. What is the operating temperature range of the device?

It operates between -20 °C and +60 °C.

7. What power supply does the scanner require?

A 24V DC power supply is needed for operation.

8. Is the scanner compatible with other Honeywell control systems?

Yes, it is designed primarily for the HC900 system but can integrate with other compatible Honeywell controllers.

9. What are the physical dimensions of the Honeywell 900C53-0001?

Dimensions are 130 × 30 × 105 mm.

10. Does the scanner offer any diagnostic features?

Yes, it includes diagnostic tools for early detection of communication errors and faults.
