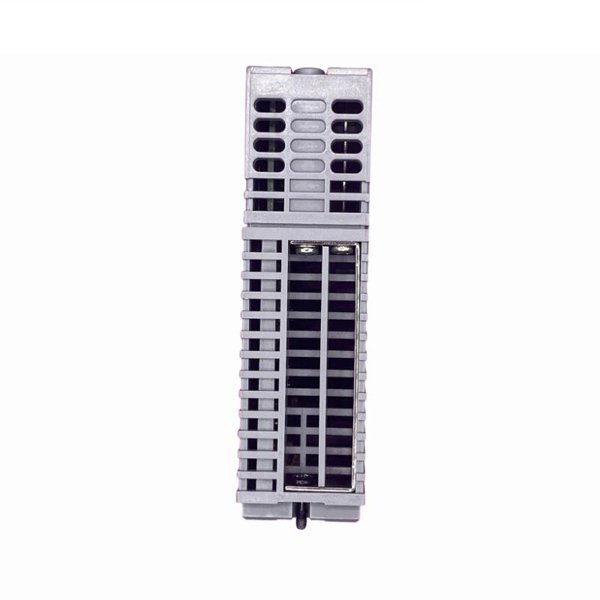

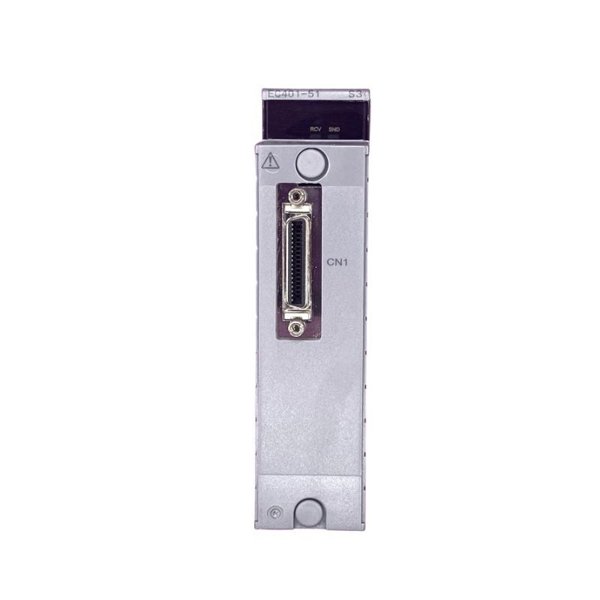

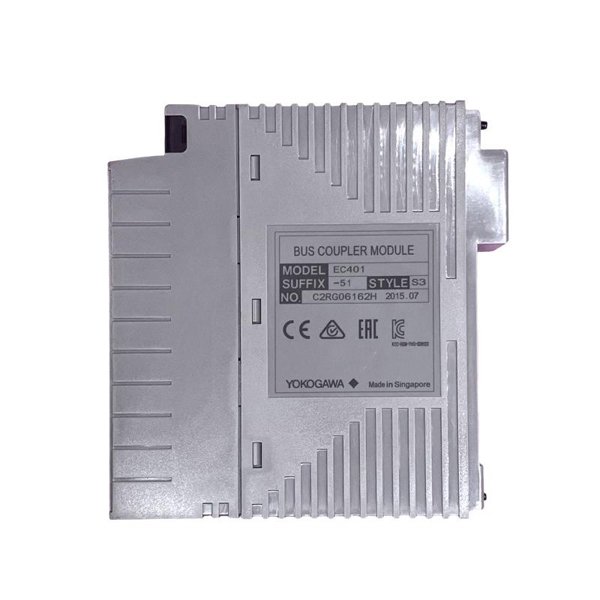

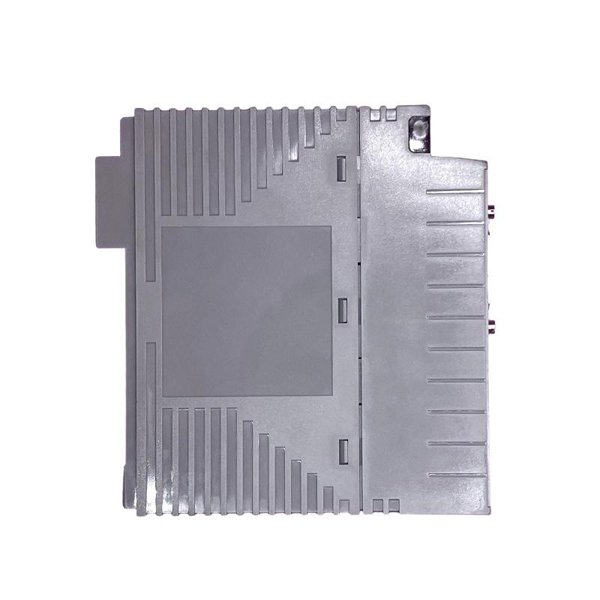

Yokogawa EC401-51 S3 ESB Bus Coupler Module

The Yokogawa EC401-51 S3 ESB Bus Coupler Module is a critical interface component for connecting Field Control Units (FCUs) to the Enhanced System Bus (ESB) in distributed control systems. This module acts as a bridge between ESB field devices and the main control network, providing high-speed, reliable communication for process automation and control.

Designed for mission-critical industrial applications, the EC401-51 S3 supports dual-redundant configurations, ensuring uninterrupted data flow even in the event of a communication channel failure. It features advanced diagnostics, error detection, and LED indicators for real-time status monitoring. Its compact modular design allows easy integration into existing Yokogawa systems, making it suitable for industries such as oil & gas, chemical, petrochemical, and power generation.

Product Specifications

Applications

• Distributed Control Systems (DCS): Connects FCUs to Node Units and field devices for reliable communication.

• Process Automation: Supports continuous data exchange for automated control processes.

• Redundant Industrial Systems: Maintains operation in safety-critical environments.

• Power Generation: Enables stable monitoring and control in power plants.

• Oil & Gas Industry: Ensures accurate and stable communication for upstream, midstream, and downstream operations.

• Chemical & Petrochemical Plants: Supports complex process control and hazardous area communication.

Product Advantages

• High-Speed Communication: Ensures rapid and reliable data transfer across ESB networks.

• Dual-Redundancy Support: Maintains uninterrupted communication even if one path fails.

• Compact, Modular Design: Simplifies installation and integration into existing racks.

• Advanced Diagnostics: Self-diagnostics, error logging, and LED indicators facilitate proactive maintenance.

• Wide Compatibility: Works with various Yokogawa FCUs and Node Units.

• Certified Compliance: CE and RoHS approved for safety and environmental standards.

FAQ

1. What is the main function of the EC401-51 S3 module?

It connects Field Control Units to the Enhanced System Bus, enabling high-speed, reliable communication in a DCS.

2. How many units can EC401-51 S3 support?

It supports up to 9 connectable ESB devices depending on system configuration.

3. Does the module support redundant communication?

Yes, dual-redundant communication paths are supported for fail-safe operation.

4. Can the module be replaced without shutting down the system?

Yes, it supports online replacement and integration.

5. What diagnostic features does it include?

Self-diagnostics, error logging, and LED indicators for status monitoring.

6. Is EC401-51 S3 compatible with Yokogawa CENTUM VP?

Yes, it integrates seamlessly with CENTUM VP and other DCS platforms.

7. What is the current consumption of the module?

The module consumes approximately 0.5 A at 24 V DC.

8. What temperature ranges can it operate in?

It operates safely between 0°C and +55°C.

9. How does it handle EMI/EMC interference?

It is designed according to IEC standards for EMI/EMC protection.

10. Can firmware be updated while the module is operational?

Yes, it supports online firmware updates without system shutdown.
