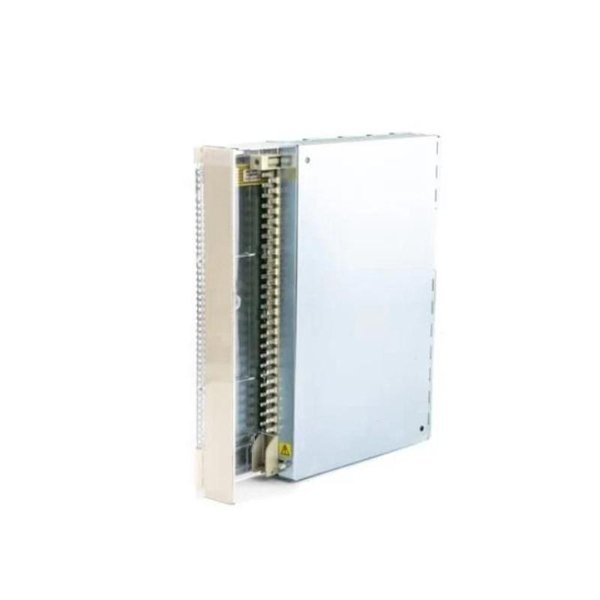

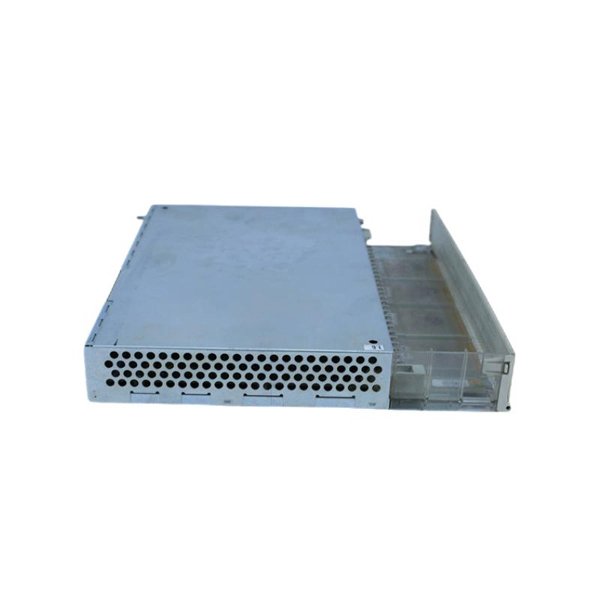

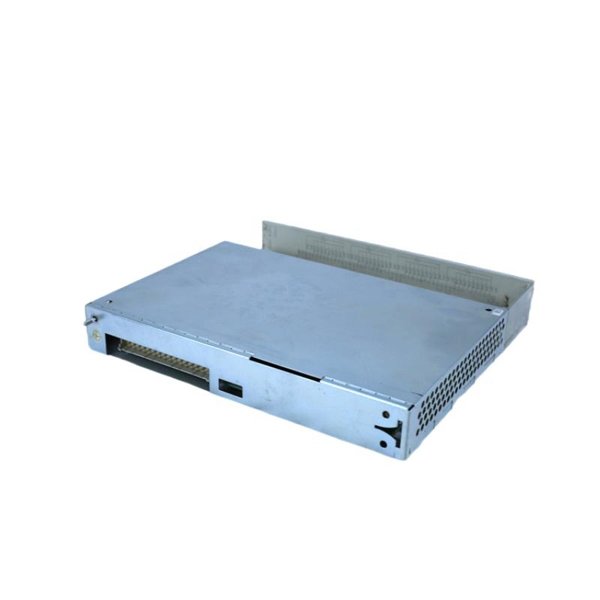

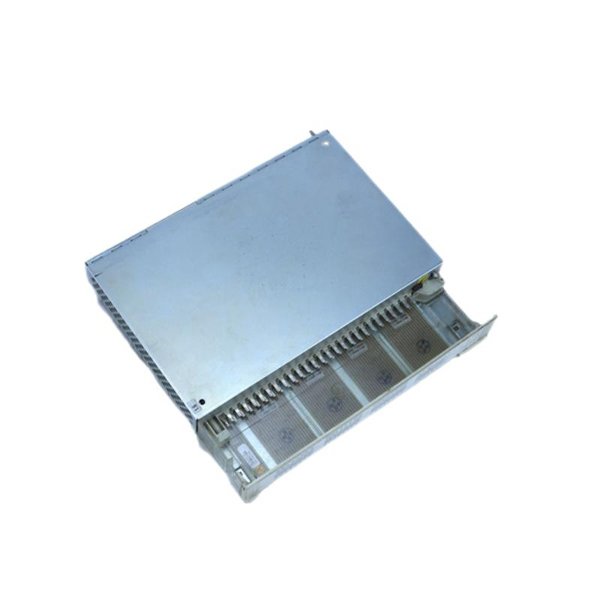

ABB DI610 3BHT300004R1 Digital Input Module

The ABB DI610 (Part Number: 3BHT300004R1) is a Digital Input Module engineered for ABB’s Advant Controller 410 series and is widely deployed in process automation environments. Designed for high reliability and long operational life, the DI610 provides robust digital signal acquisition and acts as a critical component in Distributed Control Systems (DCS).

Each module offers 16 optically isolated digital input channels, allowing seamless monitoring of binary field signals such as switches, limit sensors, push-buttons, and other discrete devices. The DI610 is built to endure harsh industrial environments while offering precise, interference-immune signal recognition. It interfaces directly with I/O bus systems and integrates easily into both new and legacy ABB automation platforms.

This module is an essential choice for system integrators and engineers focused on building secure, real-time digital input channels within safety-critical or high-availability control architectures.

Technical Specifications

Applications

• Power Plants: Ideal for control systems in thermal, hydro, and nuclear power stations.

• Petrochemical Plants: Used in monitoring critical discrete inputs from field equipment.

• Pulp & Paper Industry: Interfaces with machinery control panels and conveyor switches.

• Water Treatment Plants: Reliable detection of valve positions and limit sensors.

• Steel Manufacturing: Monitors automation logic for furnaces, rolling mills, etc.

• Marine & Offshore Systems: Applied in high-availability shipboard automation.

• Pharmaceutical Manufacturing: Used in cleanroom automation and packaging lines.

• Process Automation: Suited for broad industrial use within DCS architectures.

Product Advantages

• High Channel Density: 16 input channels in a compact module format.

• Rugged & Industrial-Grade: Engineered for continuous operation in demanding environments.

• Legacy System Compatibility: Supports Advant Controller systems, ensuring long-term value.

• Fast Response Time: Low-latency input response for time-sensitive operations.

• LED Indicators: Visual channel status indication simplifies troubleshooting.

• Safe Isolation: Optical isolation provides electrical separation from field signals.

• Field-Proven Design: Decades of proven reliability in thousands of installations.

• Maintenance Friendly: Screw terminals and modular layout ease replacement and wiring.

Frequently Asked Questions (FAQ)

1. What control systems is the DI610 compatible with?

   The DI610 works with ABB’s Advant Controller 410/450 and is also used in Symphony DCI System Six environments.

2. How many digital inputs are supported per module?

   The DI610 supports 16 optically isolated digital input channels.

3. What is the nominal input voltage for the DI610?

   The nominal voltage is 24 V DC, with an acceptable range of 18–30 V DC.

4. Is this module hot-swappable?

   No, the DI610 is not hot-swappable. System shutdown is recommended during replacement.

5. How are input channels isolated?

   Each input is optically isolated from the backplane and other channels.

6. Does the DI610 support redundancy?

   Yes, when configured with a redundant setup in supported systems.

7. What kind of wiring terminals are used?

   The module uses screw-type terminal blocks for secure connections.

8. Is the module suitable for safety-critical applications?

   While robust, it is not a SIL-rated safety module. Use in critical applications should consider system-level redundancy and diagnostics.

9. How is status monitored?

   Each channel’s status can be monitored via LED indicators and system software.

10. Can the DI610 be used in harsh environments?

    Yes, it is built for industrial settings, with a wide operating temperature and durable design.
