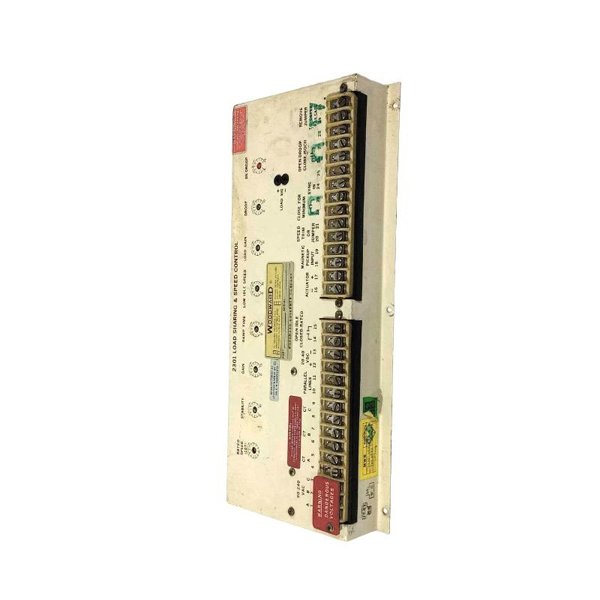

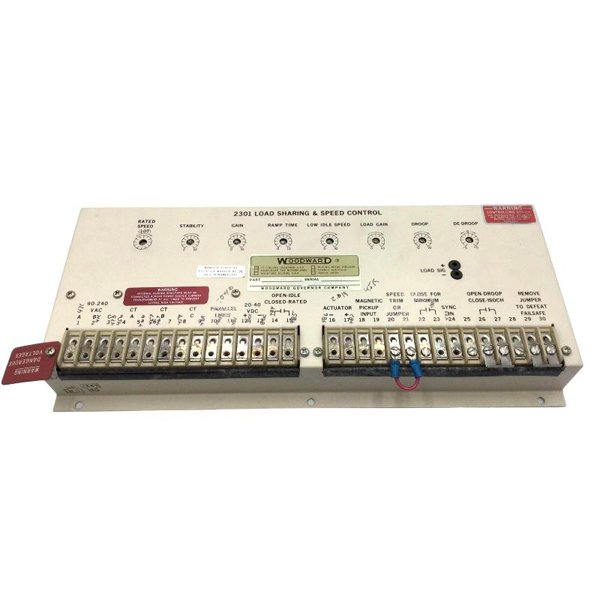

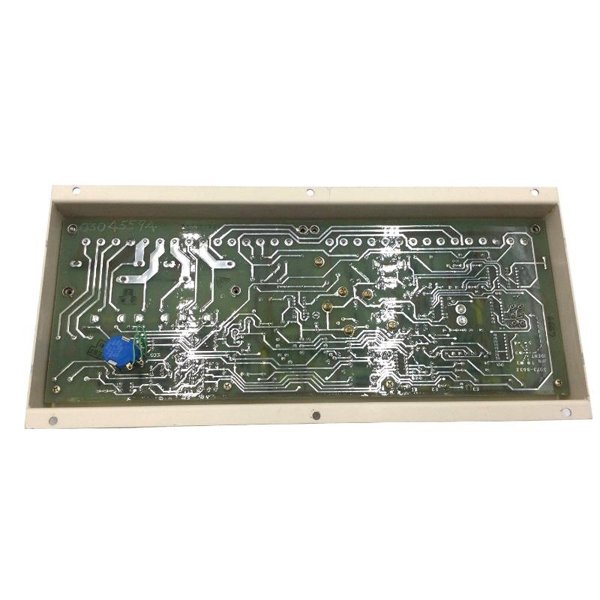

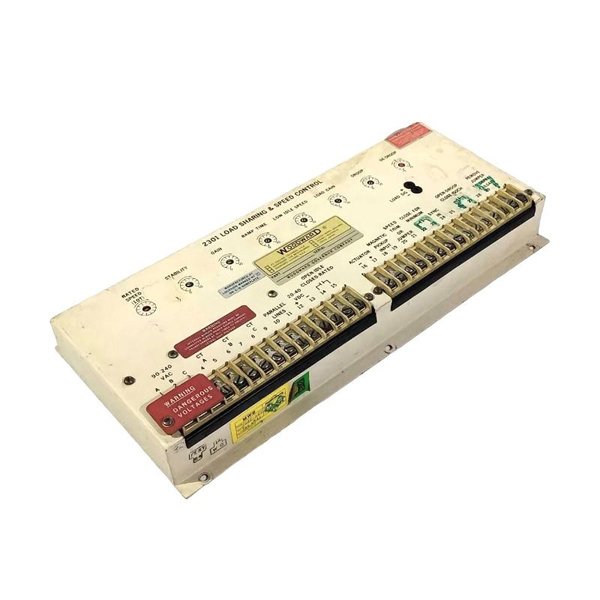

Woodward 8271-467 Load Sharing And Speed Control Module

The Woodward 8271-467 Load Sharing and Speed Control Module is a robust and intelligent controller designed to govern engine speed and manage load sharing across multiple generator sets operating in parallel. Purpose-built for applications where precise control, synchronization, and stable power distribution are essential, this module is part of Woodward’s acclaimed 2301D/LS and legacy series.

Equipped with analog and digital interfacing capabilities, the 8271-467 supports real-time communication between generators, allowing for uniform power contribution while maintaining rated frequency and stability. It enables both droop and isochronous load sharing modes, making it suitable for utility-grade applications and isolated power systems.

With proven dependability in power generation, marine propulsion, and oil & gas sectors, this controller is a cornerstone of distributed energy resource (DER) systems and backup power infrastructures requiring unmatched control precision.

Product Specifications

Product Applications

The Woodward 8271-467 controller serves as a central element in multi-unit generator and engine systems, where it ensures reliable synchronization and proportional power delivery. Key application areas include:

1. Power Plants (Prime and Standby)

   Controls engine-driven generators in isolated or utility-parallel operation for stable frequency and voltage.

2. Marine Vessel Propulsion Systems

   Maintains steady engine speed and load balancing in propulsion and auxiliary generators aboard ships.

3. Oil & Gas Processing Facilities

   Manages power generation units operating in load sharing across oil fields, refineries, and gas processing stations.

4. CHP (Combined Heat and Power) Systems

   Balances energy output between electrical and thermal demands in cogeneration facilities.

5. Mobile Power Units and Rental Gensets

   Enables rapid deployment and synchronization of multiple gensets for temporary power installations.

6. Industrial Plants with Distributed Loads

   Ensures equitable load management among several generators operating within large industrial facilities.

Product Advantages

The Woodward 8271-467 Load Sharing and Speed Control Module offers multiple operational benefits, enhancing both efficiency and safety:

1. Precision Load Sharing

   Supports accurate and proportional load division across parallel units to prevent overloading and underutilization.

2. Versatile Control Modes

   Functions in isochronous, droop, base load, and process control modes for flexible power management.

3. Fast Synchronization

   Reduces synchronization time and transient instability during generator on/offline switching.

4. Field Configurable

   Easily programmable using Woodward ToolKit software to fit custom application logic and input/output preferences.

5. High Environmental Resilience

   Designed to function reliably in extreme temperatures, vibrations, and industrial contaminants.

6. Low System Integration Cost

   Eliminates the need for additional synchronization hardware or logic controllers in many systems.

7. Seamless Integration with Woodward Ecosystem

   Works natively with other Woodward components such as actuators, governors, and power management solutions.

FAQ (Frequently Asked Questions)

1. What is the main function of the Woodward 8271-467?

   • It controls engine speed and enables load sharing among multiple generators operating in parallel.

2. Is this controller suitable for utility grid-tied applications?

   • Yes, it can operate in both isolated and utility-parallel configurations.

3. Can the module support process control?

   • Yes, it includes a process control mode for maintaining set process values (e.g., pressure, temperature).

4. What kind of actuators does it control?

   • It supports current-driven actuators and can be configured for PWM or voltage output in certain setups.

5. Is remote monitoring supported?

   • While it has RS-232 for local communication, remote support is possible with optional gateways or HMI integration.

6. Does it require software to configure?

   • Yes, configuration is done through Woodward ToolKit software on a PC.

7. What kind of input sensors does it accept?

   • It accepts MPU (magnetic pickup) signals from engine flywheels for speed measurement.

8. What happens if one generator fails?

   • The controller can detect faults and initiate safe load redistribution or trip procedures.

9. How many digital I/O ports does it support?

   • It includes 6 digital inputs and 4 digital outputs, all programmable.

10. Can it be used with Woodward actuators and governors?

• Absolutely. It is optimized for integration with Woodward actuators and governor systems.
