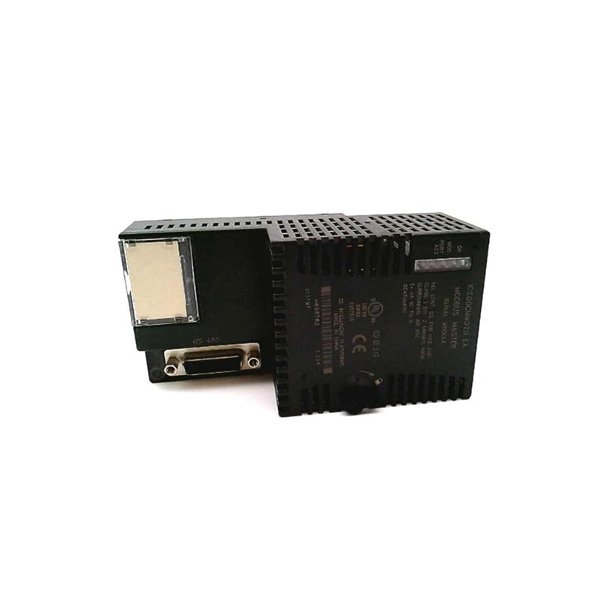

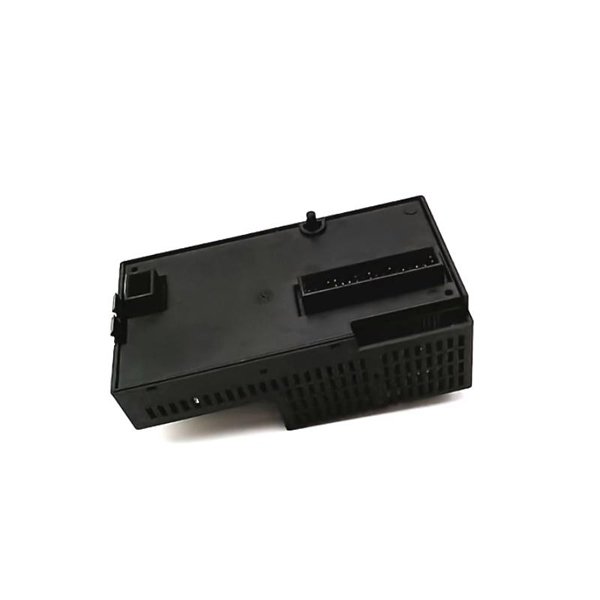

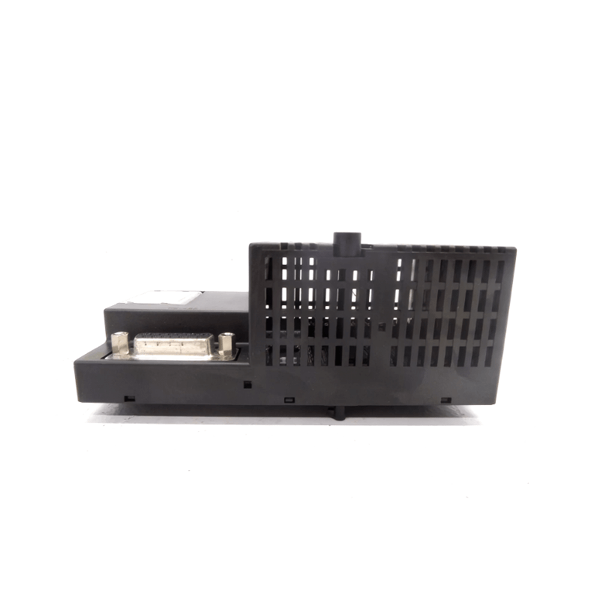

General Electric IC200CMM020-AA Serial Communications Module

The GE IC200CMM020-AA is a Serial Communications Module within the VersaMax series, engineered to function as a Modbus RTU Master in a VersaMax I/O station managed by a Genius Network Interface Unit (NIU). This module facilitates seamless integration and communication with various Modbus slave devices, including controllers, variable frequency drives (VFDs), barcode readers, and display marquees. Designed for industrial automation applications, it enhances data exchange efficiency and system interoperability.

Product Specifications

Applications

The IC200CMM020-AA module is utilized across various industrial sectors to enhance communication and control capabilities:​

1. Manufacturing Automation: Enables seamless communication between central control systems and machinery, improving production efficiency.​

2. Process Control Systems: Facilitates data exchange with field devices such as sensors and actuators, ensuring precise process management.​

3. Energy Management: Integrates with power monitoring equipment to optimize energy consumption and monitor system performance.​

4. Material Handling: Communicates with conveyor systems and robotic arms for synchronized operations in warehouses and distribution centers.​

5. Building Automation: Interfaces with HVAC systems, lighting controls, and security systems for centralized building management.​

Advantages

• Versatile Communication: Supports both RS-232 and RS-485 interfaces, accommodating various industrial devices and communication standards.​

• Flexible Baud Rates: Offers multiple baud rate options, allowing customization based on specific application requirements.​

• Energy Efficiency: With a power consumption of less than 3W, it contributes to reduced operational costs and supports sustainable industrial practices.

• Compact Design: Its small footprint allows for easy integration into existing systems without requiring significant space.​

• Robust Performance: Operates effectively in temperatures ranging from -20°C to +60°C, suitable for diverse industrial environments.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the GE IC200CMM020-AA module?

   • The IC200CMM020-AA module serves as a Modbus RTU Master, enabling communication between a VersaMax I/O station and Modbus slave devices.

2. Which communication interfaces does this module support?

   • It supports both RS-232 and RS-485 interfaces for serial communication.

3. What devices can be connected to this module?

   • The module can communicate with PLCs, sensors, actuators, variable frequency drives (VFDs), barcode readers, and industrial display units.

4. How many serial communication modules can be installed per I/O station?

   • Up to two IC200CMM020-AA modules can be used per VersaMax I/O station.

5. What baud rates does the module support?

   • The module supports baud rates of 1200, 2400, 4800, 9600, and 19200 bps.

6. What is the power consumption of the IC200CMM020-AA?

   • The module consumes 460 mA from the 5V bus, with a total power consumption of less than 3W.

7. What are the dimensions and weight of the module?

   • Dimensions: 110 x 66.8 x 50 mm

   • Weight: 0.081 kg

8. What is the operating temperature range of the module?

   • It is designed to operate within a temperature range of -20°C to +60°C.

9. Can this module be used in industrial automation applications?

   • Yes, it is widely used in manufacturing, process control, material handling, and building automation systems.

10. Is the module compatible with other GE control systems?

• Yes, it is designed for seamless integration within the VersaMax series and compatible GE control systems.
