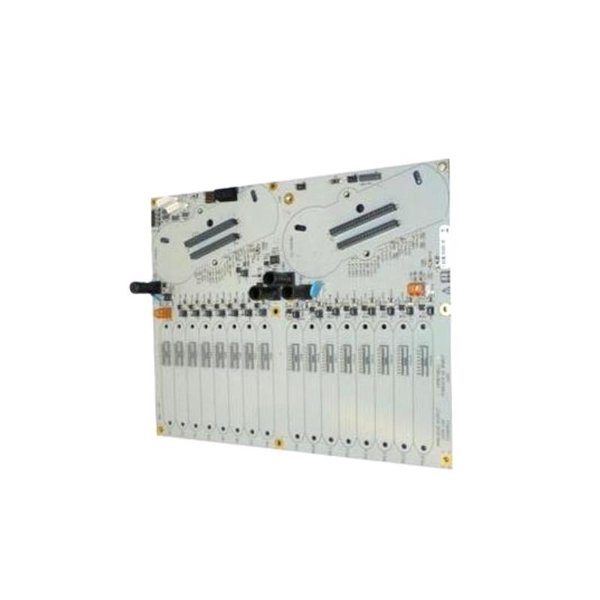

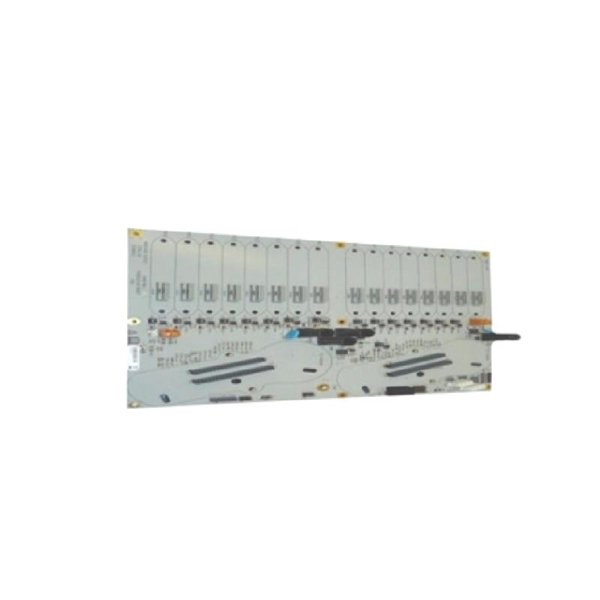

Honeywell CC-GAOX11 51306311-175 Analog Output Module

The Honeywell CC-GAOX11 is a high-performance Analog Output Module designed for use in industrial automation systems. This module is a key component in processes requiring precise control and output of analog signals, such as in manufacturing, process control, and safety-critical systems. The CC-GAOX11 module supports a wide range of analog outputs, including current (4-20 mA) and voltage (0-10 V), making it versatile for various control and monitoring applications.

Product Specifications

Applications

The Honeywell CC-GAOX11 Analog Output Module is ideal for use in a variety of industrial applications, such as:

1. Process Control: Providing precise output control to regulate process parameters such as pressure, temperature, and flow rate.

2. Industrial Automation: Interface with PLCs, SCADA systems, and other control devices to manage and monitor production lines or machinery.

3. Safety-Critical Systems: Used in critical safety systems where accurate and reliable output signals are required for monitoring and control.

4. Building Automation: Applied in systems for HVAC, lighting, and environmental control in commercial buildings.

5. Test Equipment: Utilized in testing setups where analog output control is essential for simulation or calibration.

Advantages

• High Accuracy and Resolution: With a 16-bit resolution and accuracy of ±0.05% of full scale, the CC-GAOX11 ensures highly precise analog outputs, making it suitable for sensitive applications.

• Wide Temperature Range: Capable of operating in extreme temperatures from -40°C to 70°C, the module ensures reliable performance in various environments.

• Versatile Connectivity: Supports multiple communication protocols (RS485, CAN, Modbus), offering compatibility with a wide range of automation systems.

• Space-Saving Design: The module’s compact DIN rail-mountable design saves space and allows for easy integration into existing control panels.

• Robust Protection: With an IP65 rating, the module is resistant to dust and water ingress, making it ideal for harsh industrial environments.

FAQ (Frequently Asked Questions)

1. What is the primary function of the Honeywell CC-GAOX11 Analog Output Module?

   • The primary function of this module is to provide precise analog output signals (4-20 mA and 0-10 V DC) for controlling and monitoring industrial processes.

2. How many output channels are available on the CC-GAOX11 module?

   • The module has 4 output channels, allowing it to control multiple parameters simultaneously.

3. What is the accuracy of the output signals from the CC-GAOX11?

   • The accuracy is ±0.05% of full scale, providing reliable and precise output for critical applications.

4. Can the Honeywell CC-GAOX11 be used in hazardous environments?

   • Yes, it has an IP65 protection rating, making it suitable for use in environments with dust or water exposure.

5. What is the communication protocol supported by the CC-GAOX11?

   • The module supports RS485, CAN, and Modbus communication protocols, making it versatile and compatible with various industrial systems.

6. What are the operating temperature limits of the CC-GAOX11?

   • The module operates within a temperature range of -40°C to 70°C, suitable for both extreme hot and cold environments.

7. How is the Honeywell CC-GAOX11 module mounted?

   • It can be mounted on a DIN rail, which makes it easy to install and maintain in industrial control panels.

8. What is the power supply requirement for the CC-GAOX11 module?

   • The module requires a 24 VDC ± 20% power supply for operation.

9. What is the weight of the Honeywell CC-GAOX11 module?

   • The module weighs 1 kg, making it lightweight and easy to handle during installation.

10. What are the applications of the Honeywell CC-GAOX11?

    • It is used in process control, industrial automation, safety-critical systems, building automation, and testing equipment.
