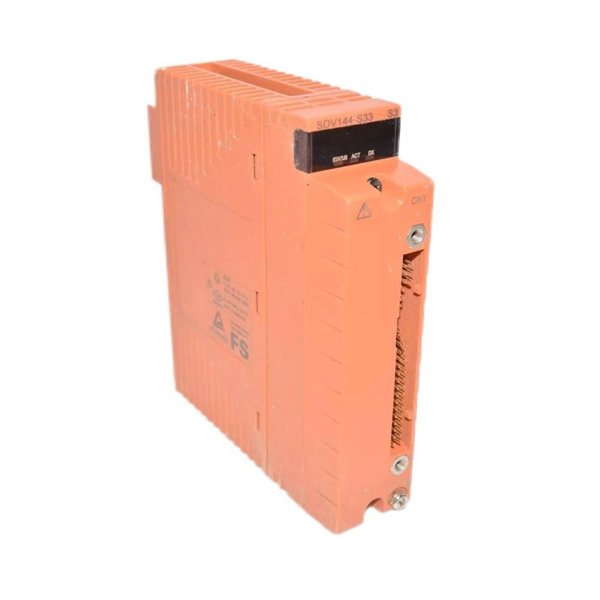

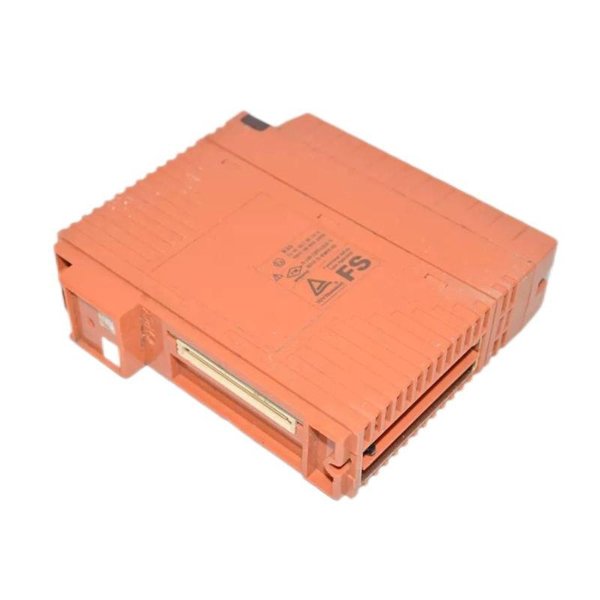

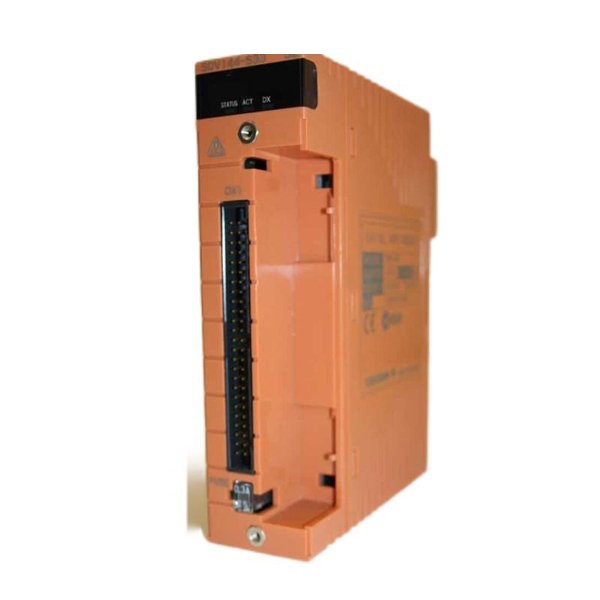

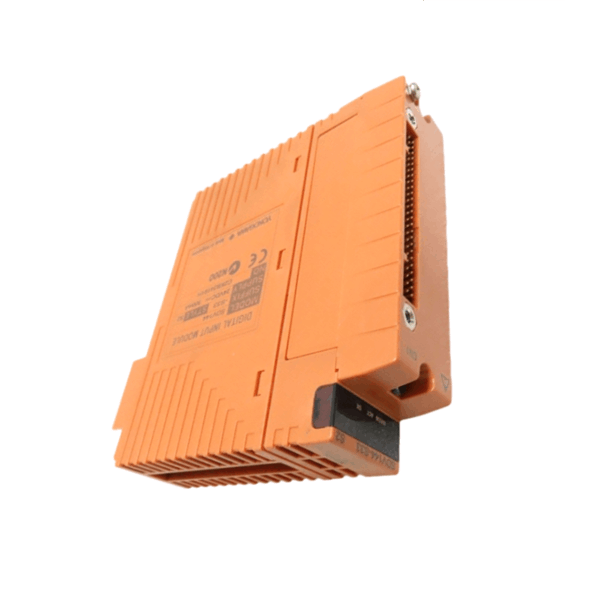

Yokogawa SDV144-S33/PRP Digital Input Module

The Yokogawa SDV144-S33/PRP is a high-performance digital input module designed to be integrated into industrial control systems. It is part of the Yokogawa Centum VP family, which is widely used in advanced industrial automation systems for its reliability, precision, and scalability.

This model supports 16 digital input channels, capable of receiving ON/OFF signals from a variety of field devices such as sensors, switches, and safety systems. The SDV144-S33/PRP variant includes PRP (Parallel Redundancy Protocol), which enhances its fault tolerance and provides high availability, making it particularly suitable for mission-critical applications in industries such as power, oil and gas, and chemical processing.

The SDV144-S33/PRP is known for its robust design, fast processing speeds, and easy integration with existing control systems. Its versatility in handling digital signals allows operators to monitor various system states and ensure smooth operational flow in complex industrial environments.

Product Parameters

Below is a comprehensive specification table for the Yokogawa SDV144-S33/PRP Digital Input Module:

Product Applications

The Yokogawa SDV144-S33/PRP Digital Input Module is specifically designed to meet the needs of demanding industrial environments. Its primary applications include:

• Industrial Automation Systems: The module is used to interface with various digital field devices like limit switches, push buttons, and other on/off sensors. It helps process binary control signals that are crucial for the operation of automation systems.

• Power Generation: In power plants, the SDV144-S33/PRP module provides real-time monitoring of critical devices such as circuit breakers, safety switches, and status indicators, ensuring safe and efficient operation.

• Oil and Gas: The module is widely used in oil rigs, refineries, and pipelines, where reliable monitoring of process equipment such as pumps, valves, and emergency shutdown systems is essential.

• Chemical Processing: The SDV144-S33/PRP ensures safe operation in chemical plants by providing robust monitoring of safety-critical equipment like pressure relief valves and interlocks.

• Building Automation: In commercial buildings, the module can be used to monitor various systems such as HVAC (heating, ventilation, and air conditioning), fire alarms, and access control systems.

• Transportation and Infrastructure: The module can also be used in transportation systems for monitoring signaling equipment, traffic lights, or automated gate systems.

Product Advantages

The Yokogawa SDV144-S33/PRP Digital Input Module offers several significant advantages, making it an ideal choice for industrial automation:

• High Channel Count: With 16 channels for digital input, this module allows efficient integration of multiple field devices into the control system, making it ideal for complex installations.

• PRP Support for High Availability: The PRP feature enhances the redundancy of the system by providing parallel data paths, ensuring continuous operation even in the event of network failures.

• Fast Signal Processing: With a response time of ≤ 10 ms per input, the module processes signals in real time, making it suitable for time-sensitive applications where rapid response is critical.

• Compact and Reliable Design: The module’s compact size (130 x 32.8 x 107.5 mm) allows it to fit into space-constrained installations while maintaining the reliability expected from Yokogawa products.

• Easy Installation: Designed for DIN rail mounting, the module is easy to install and integrate into control cabinets, reducing downtime and installation costs.

• Galvanic Isolation: The module features galvanic isolation between inputs and outputs, ensuring protection against electrical faults and disturbances.

• Wide Operating Temperature Range: It can operate in temperatures ranging from -10°C to +55°C, allowing it to be used in a variety of environments, from outdoor industrial settings to indoor control rooms.

• Low Power Consumption: Consuming only 0.5 W per channel, the SDV144-S33/PRP helps reduce overall energy consumption, making it a cost-effective solution.

• Long-Term Reliability: Yokogawa is known for its commitment to reliability, and the SDV144-S33/PRP is built to deliver consistent performance over an extended service life with minimal maintenance.

FAQs

1. What is the input type for the Yokogawa SDV144-S33/PRP module?

   • The module supports digital (ON/OFF) inputs.

2. How many input channels does the SDV144-S33/PRP have?

   • The module provides 16 input channels.

3. What is the weight of the Yokogawa SDV144-S33/PRP module?

   • The module weighs 0.36 kg.

4. What voltage does the SDV144-S33/PRP module operate at?

   • The module operates at 24 V DC.

5. What is the input current per channel for the module?

   • The input current per channel is 10 mA.

6. What is the response time of the SDV144-S33/PRP?

   • The response time is ≤ 10 ms per input.

7. Does the module support Parallel Redundancy Protocol (PRP)?

   • Yes, the SDV144-S33/PRP supports PRP, which enhances system reliability by providing parallel data paths.

8. What mounting type does the module use?

   • The SDV144-S33/PRP uses DIN rail mounting for easy installation.

9. What is the operating temperature range of the SDV144-S33/PRP?

   • The module operates within a temperature range of -10°C to +55°C.

10. How much power does the module consume?

    • The module consumes 0.5 W per channel.
