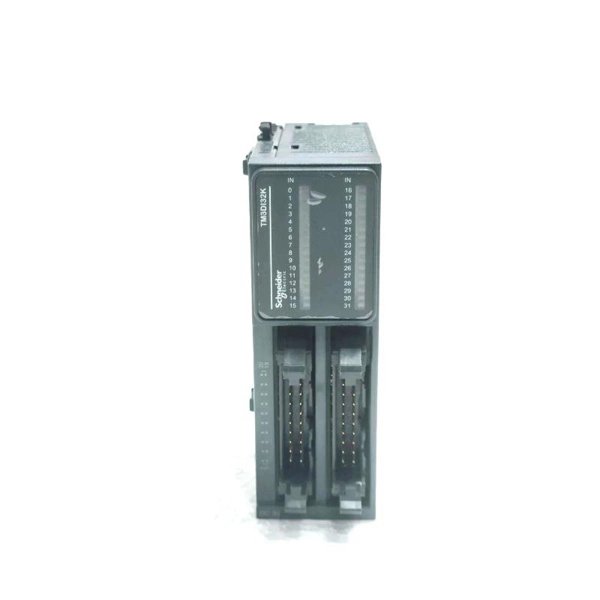

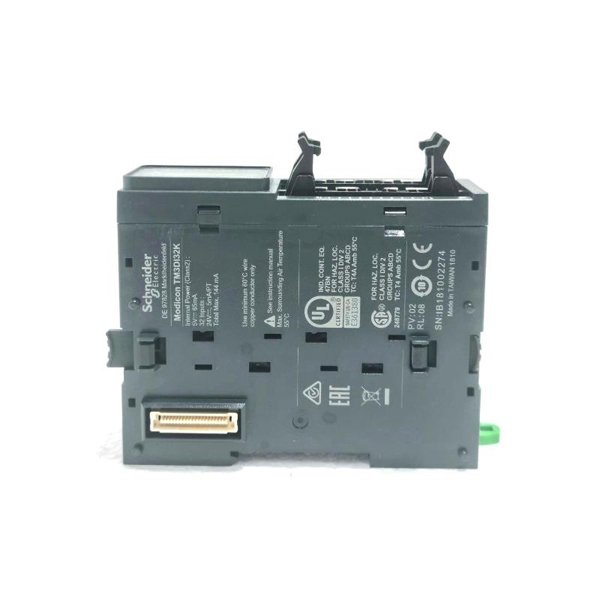

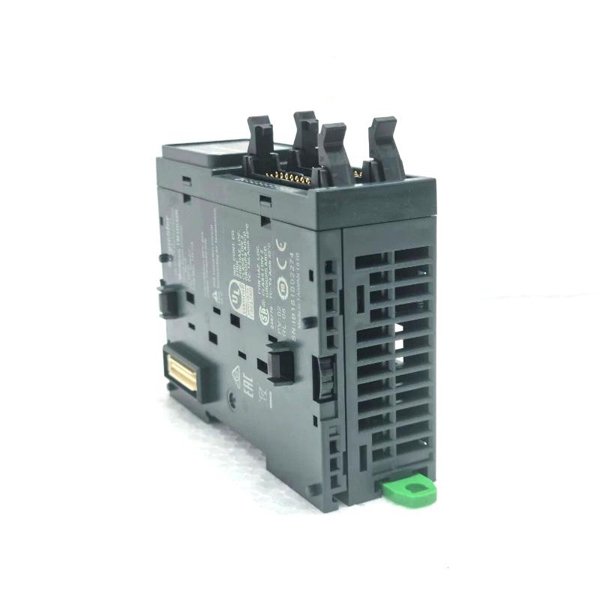

Schneider TM3DI32K Modicon TM3 Discrete Input Module
Manufacturer:Schneider
Product Number:TM3DI32K
Product Type:Discrete Input Module
Origin:France
Dimensions:90 x 81.3 x 33.5 mm
Weight:0.1 kg
Views:54
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Schneider TM3DI32K is a high-density discrete input module designed for the Modicon TM3 I/O system. It offers 32 sink/source inputs, supporting fast and reliable digital signal acquisition for industrial control applications. This module is compact, easy to integrate, and ideal for modular and scalable automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Discrete Input Module |
| Input Type | Sink or Source |
| Number of Inputs | 32 |
| Input Voltage | 24 V DC |
| Input Current | 3 mA |
| Input Signal Type | 1-wire |
| Response Time | 3 ms |
| Status Indicators | Yes (LED per group of 8) |
| Mounting Type | DIN Rail |
| Protection | Reverse polarity, short-circuit |
| Dimensions (W x H x D) | 90 x 81.3 x 33.5 mm |
| Weight | 0.1 kg |
| Operating Temperature | -10 to +55 °C |
| Storage Temperature | -40 to +85 °C |
| Vibration Resistance | 3 gn (10…500 Hz) |
| Shock Resistance | 15 gn (11 ms) |
Applications
The TM3DI32K module is widely used in:
-
Machine control systems
-
Packaging equipment
-
Conveying systems
-
OEM automation solutions
-
Building management systems
-
Industrial machinery requiring high I/O density
Advantages
-
High-density input: 32 channels in one module
-
Compact size for space-saving installations
-
Flexible wiring with sink/source compatibility
-
LED diagnostics for simplified troubleshooting
-
Easy integration with Modicon M221, M241, and M251 controllers
FAQ
Q1: What type of inputs does the TM3DI32K support?
A1: It supports both sink and source digital inputs with 24V DC logic.
Q2: Is the module compatible with Modicon M221?
A2: Yes, the TM3DI32K is fully compatible with Modicon M221, M241, and M251 controllers.
Q3: How many digital inputs does the module have?
A3: The module has 32 digital inputs.
Q4: What is the response time of the module?
A4: The typical response time is 3 milliseconds.
Q5: Can it be mounted on a DIN rail?
A5: Yes, the module is designed for standard DIN rail mounting.
Q6: Does it support status indication for inputs?
A6: Yes, each group of 8 inputs has LED indicators for status.
Q7: What is the operating temperature range?
A7: The module operates between -10°C and +55°C.
Q8: Is the module hot-swappable?
A8: No, power must be turned off before module replacement.
Q9: What kind of protection features does it offer?
A9: It includes reverse polarity and short-circuit protection.
Q10: What is the wiring type used?
A10: The module uses 1-wire type discrete input wiring.
